5 -25

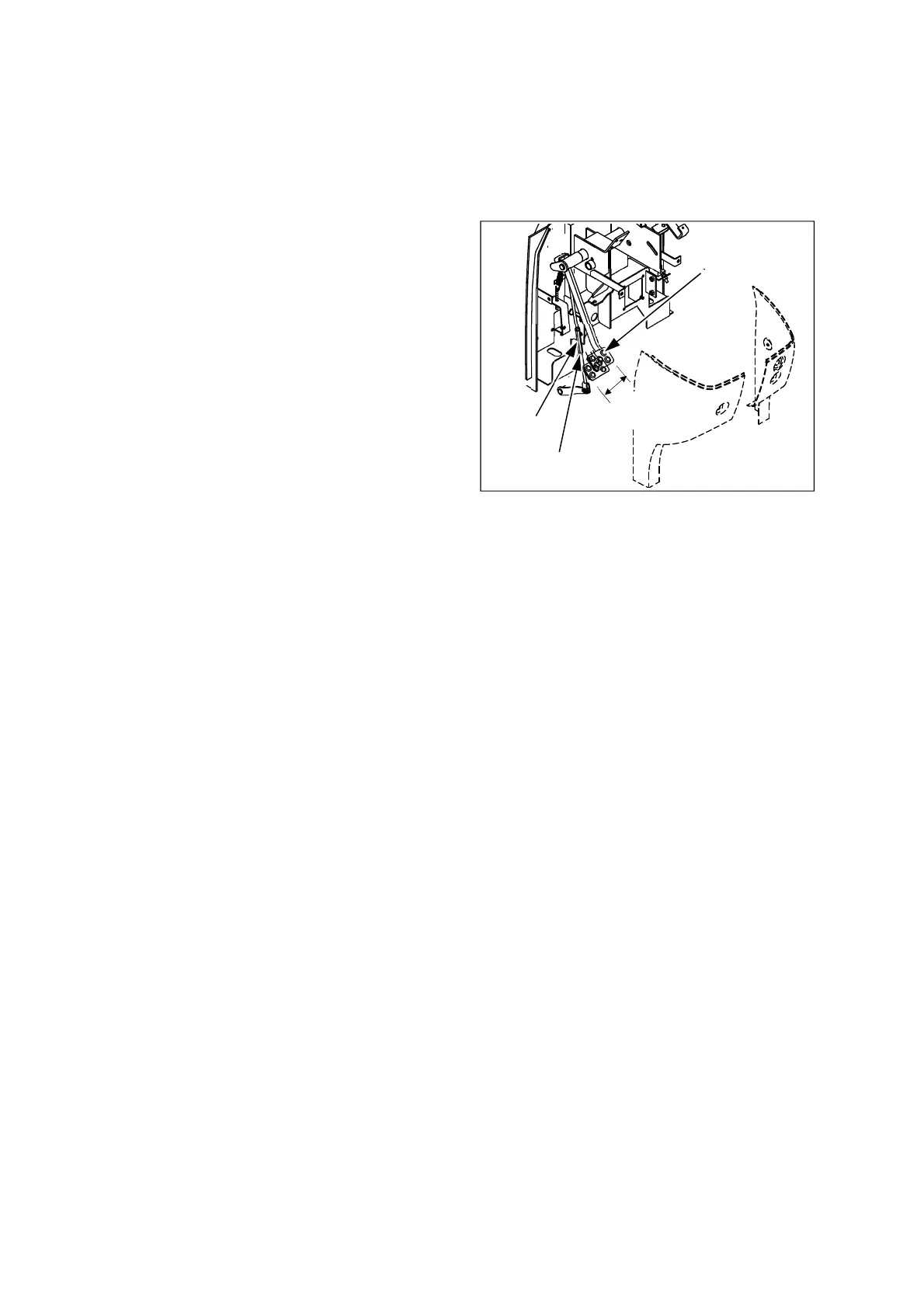

Clutch pedal
Adjuster
20~30mm
(0.8~2.0 in.)
Locking nut
(10) Adjustment of Clutch pedal
play (Mechanical type)
① Synchro-shuttle (Mechanical)
Normal distance: 20~30mm (0.8~1.2 in.)
If the pedal play distance is not normal, adjust it
as below.
1. Loosen locking nut and turn the adjuster
clockwise/counter-clockwise.
2. If the adjuster is tightened, the pedal play will be
decreased, and if it is loosened, it will be
increased.
3. After adjusting the pedal play, tighten the locking
nut.
4. Check if the clutch is disengaged completely.
② Power shuttle (PSS)
In case of power shuttle models, an electric
sensor to control the power shuttle clutch pack is
attached and tuned specially on the clutch pedal
linkage system.
If this linkage system is changed or modified
arbitrary, it may cause a serious fault or
malfunction to the power shuttle clutch pack.
If you need any service for power shuttle system,
do not hesitate to contact your authorized local
dealer for check.
