LSIS S100 Installation Manual

S100/H100 Conduit Option Installation Manual
3.1 S100 0.4~4.0kW

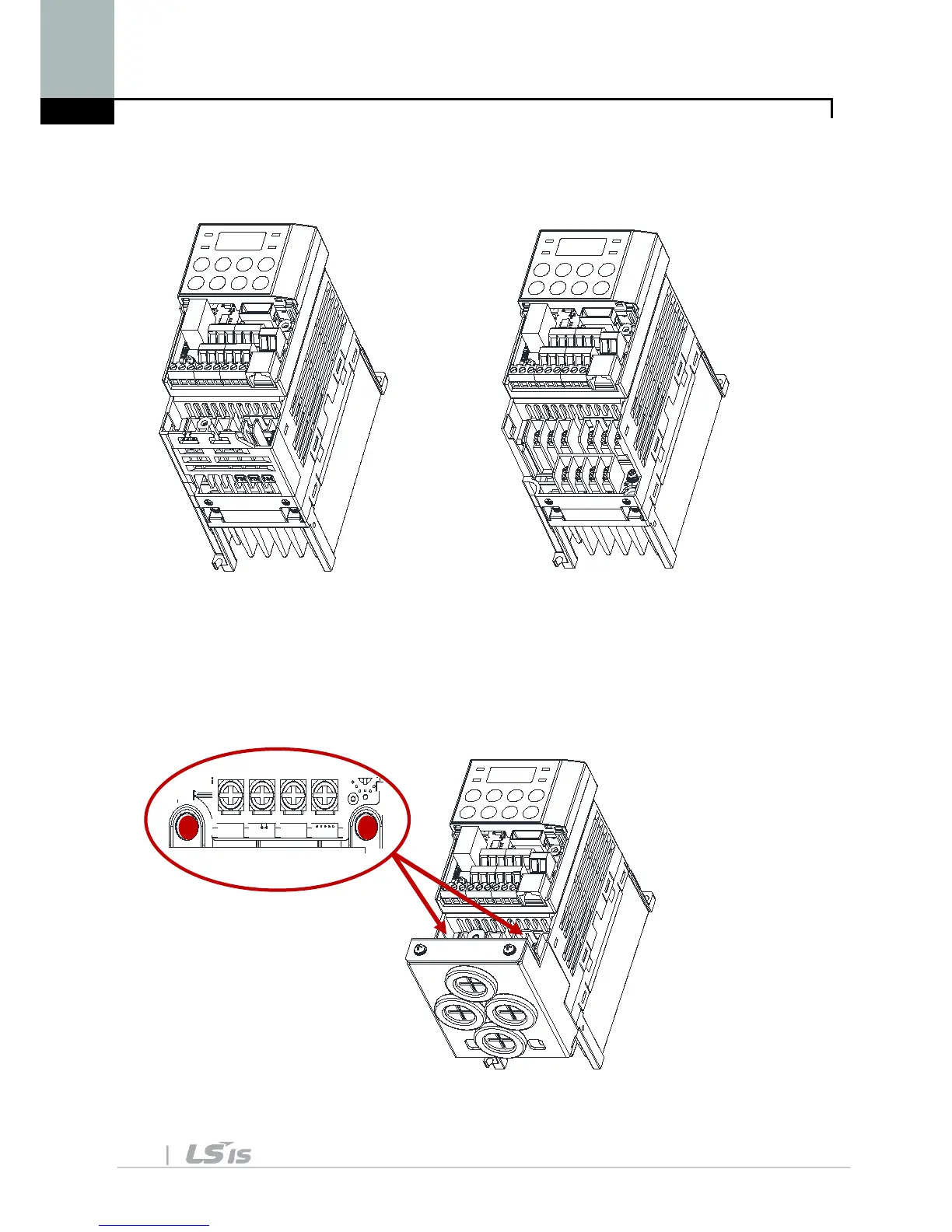

① Remove the I/O cover and cable guide of the product as shown in the Figure 1.
Figure 1. Remove I/O Cover and CABLE Guide
② Fasten the Conduit Option to fit on the ground terminals of the product using the prescribed bolt as shown in
the Figure 2.
Figure 2. Install and Front Viewing
6
