S100/H100 Conduit Option Installation Manual
③ Install the I/O cover again.

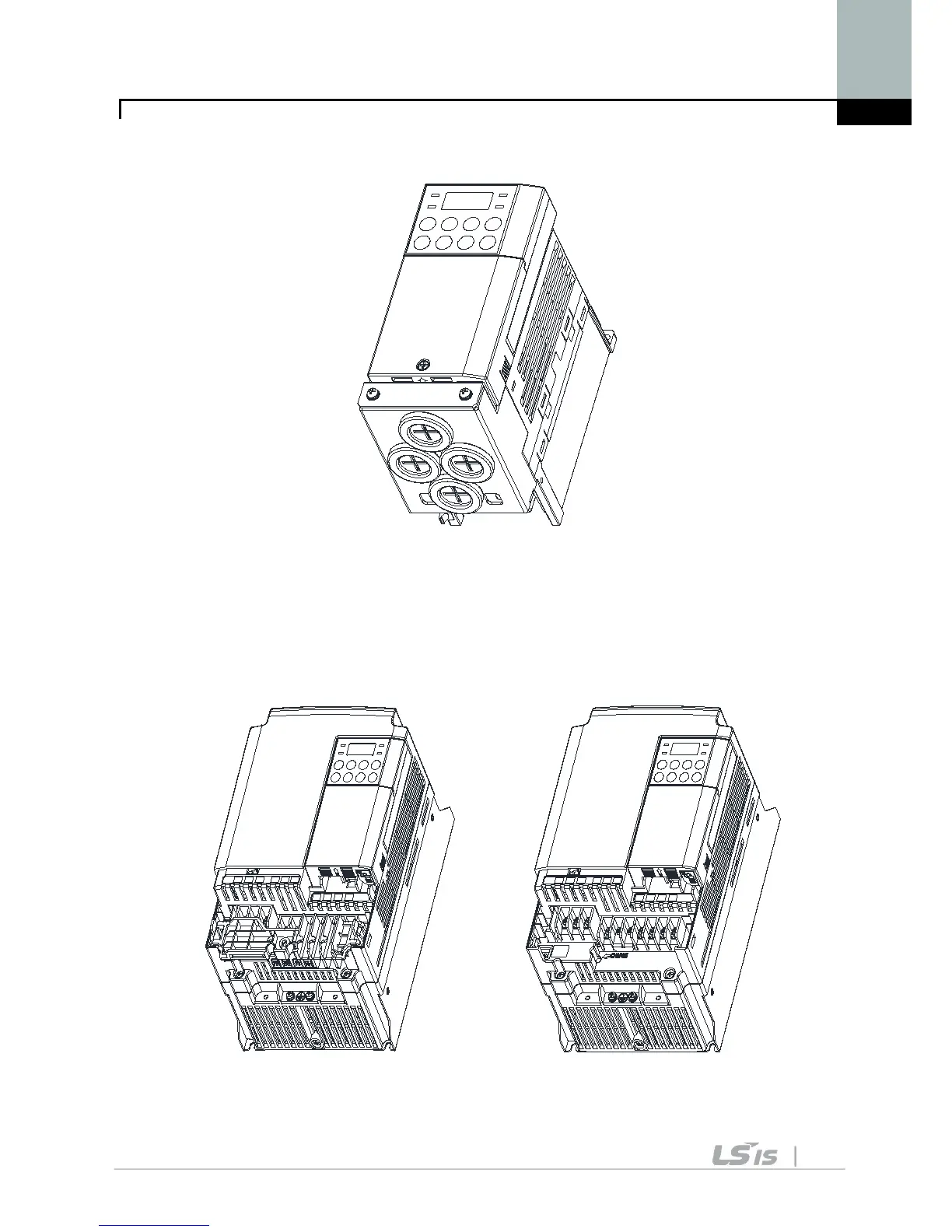

Figure 3. After installation
3.2 S100 5.5~22kW
① Remove the Power cover and cable guide of the product as shown in the Figure 4.
Figure 4. Remove Power Cover and CABLE Guide
7
