Chapter 3 Before positioning
3- 46
3) Since the operation mode of step 3 is single, the next step is No. 4.
4) Step 4 has been set as end/repeat 1, it operates up to absolute coordinates 40,000 when step 4
operates by the second operation instruction, and stops without dwell time, and the next step
points at step 1 which has been designated as the Repeat step.

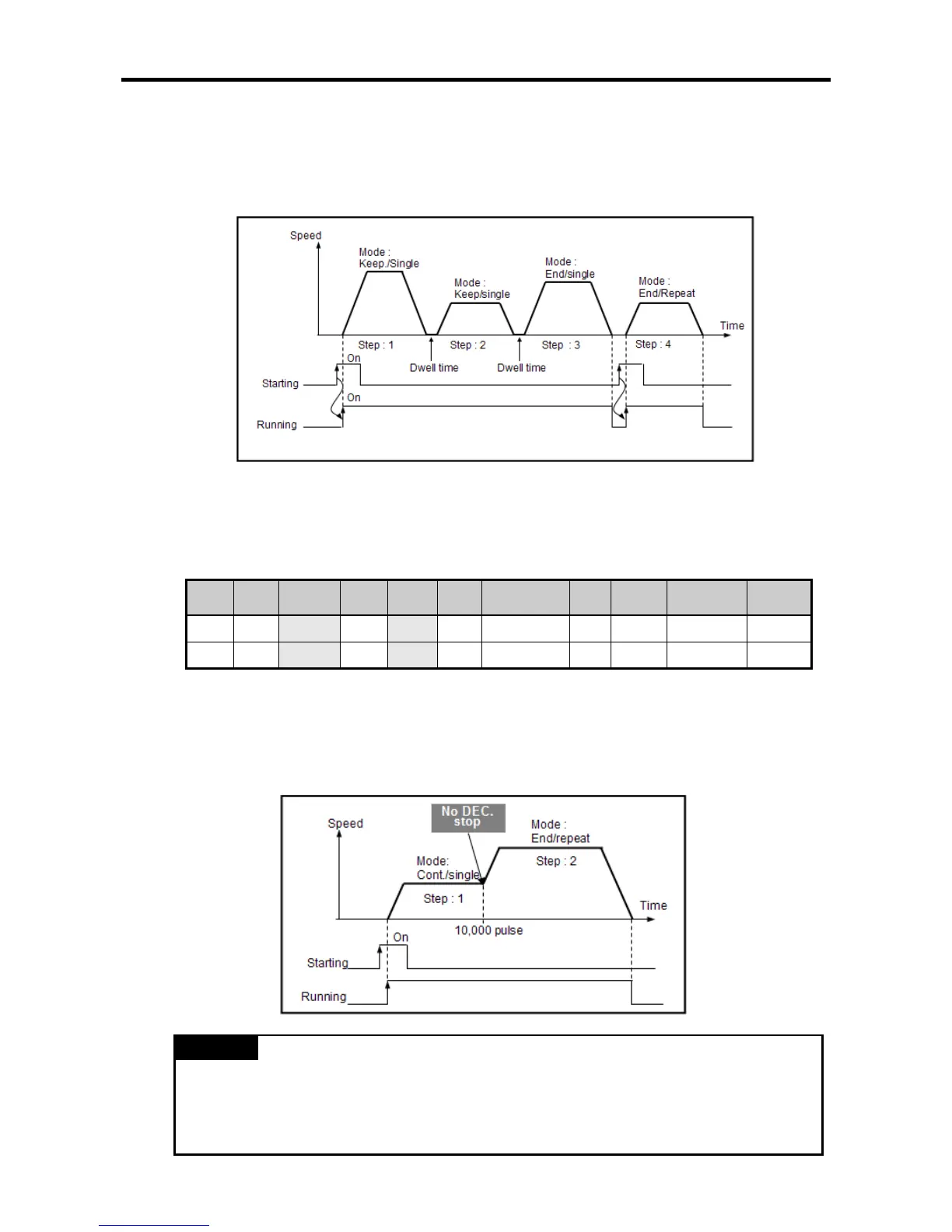

5) The operation pattern can be illustrated as follows.
(d) Incessant Operation
• Incessant operation refers to the operation that continues the steps set as continued operation by
the operation instruction.
• The continued operation can be explained with the operation data in the following table.
Step No.
Coordina
tes
Operation
pattern
Control
Operation
mode
Repeatin
g step
Target position
[Pulse]
M
code
Acc./Dec.
No.
Speed
[pls/s]
Dwell time
[㎳]
1 INC Continuous Position Single 0 10,000 0 1 500 100
2 INC End Position Repeat 1 20,000 0 1 1,000 0
1) Since the operation pattern of step 1 has been set as continued, it operates up to the
incremental coordinates 10,000 pulse at 500pps by the first operation instruction, and changes
the operation speed to 1,000pps without deceleration or stop and continues to operate step 2.
2) Because the operation pattern of step 2 is end, it moves to incremental coordinates 20,000 and
the positioning ends after the dwell time.
Remark
• If the direction changes during the continued operation, error code 511 comes out and the
operation stops. If the direction has to change, change “Continuous” into “End” or “Keep”.
