1.4 Dimensions
A set of laser transmitting and receiving devices is fixed to the rotor of the lidar,
which is rotated by an internal motor to achieve a 360° scan in the horizontal
direction.

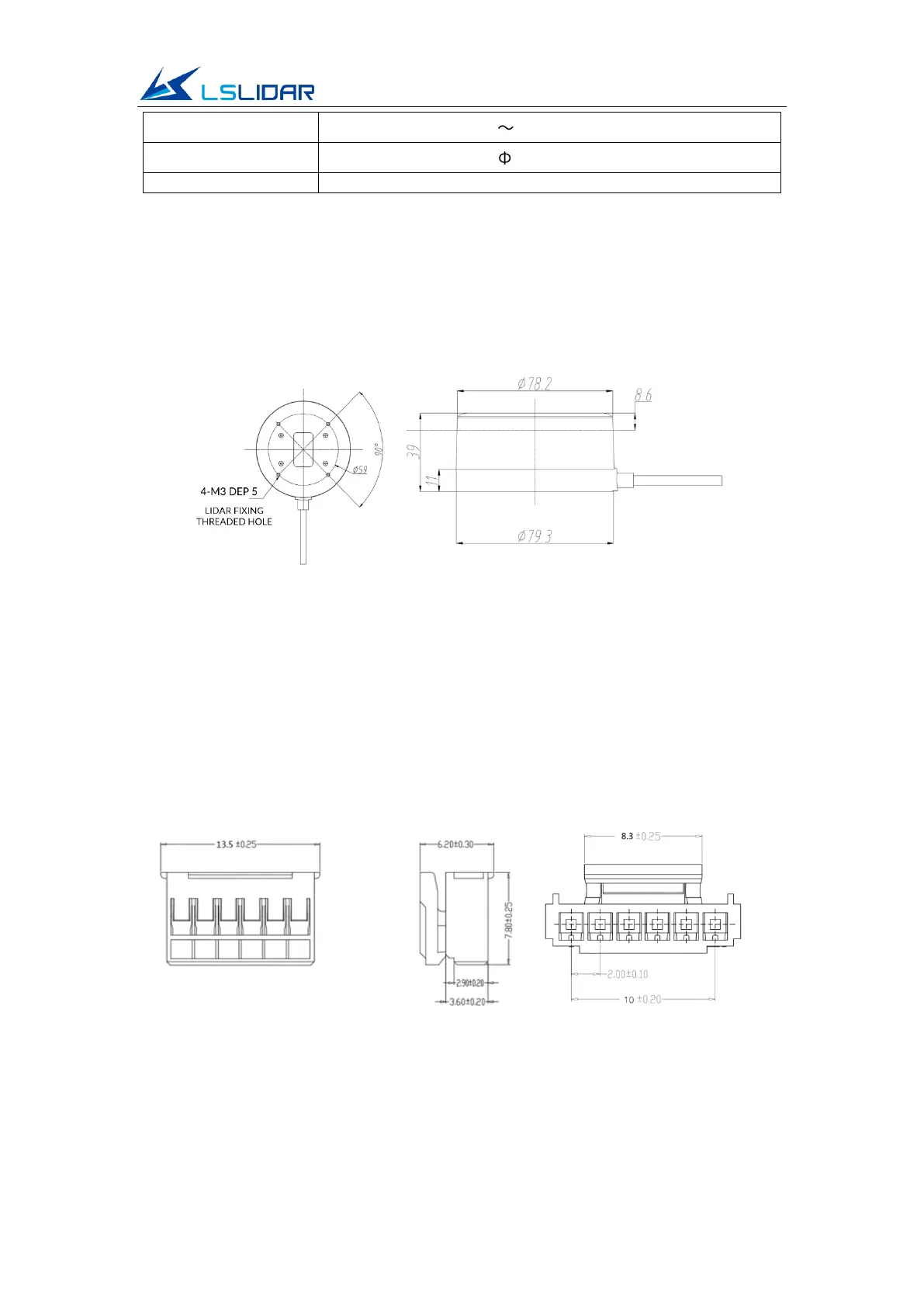

Figure 1.3 Lidar Mounting and Mechanical Dimensions (unit: mm)
1.5 Interface Definition
The specification of M10’s base connector is HY2.0-6P. The M10 lidar gets data
transmission, system power and data communication via a network interface box.
1.5.1 LiDAR Base Connector
Figure 1.4 Dimensions of Lidar Base Connector (unit: mm)
The M10P lidar supports GPS function. See the GPS port definition below:
