11 Operating manual – multifunction measuring meter XA1000 / XP200 / XP400 • 08_2015 GB

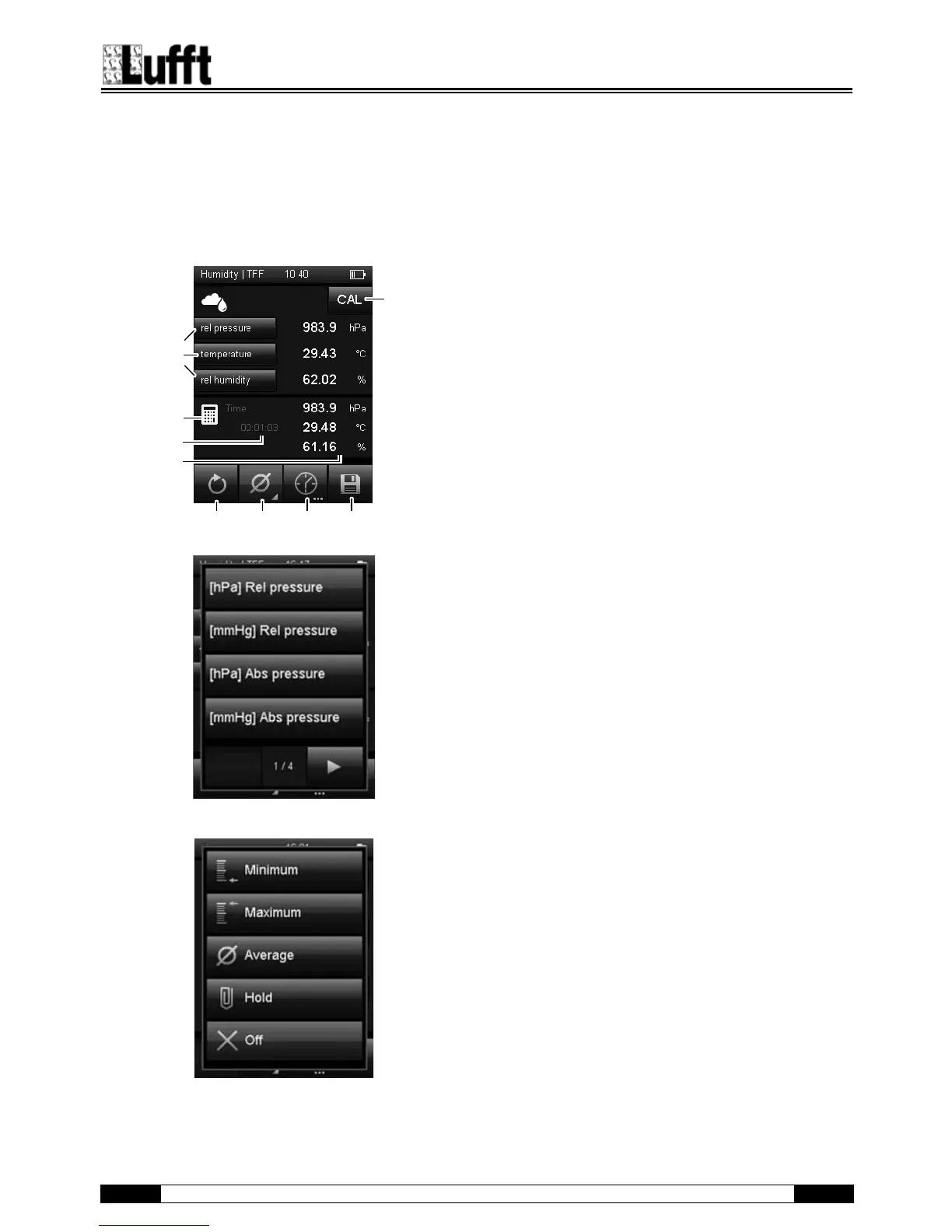

"Measuring mode – Air pressure" screen (integrated sensor)
Note!
This measuring mode is only displayed when no
digital sensor is connected.
41403938
36
A.
34
B.
37
C.
35
120
34 When using the integrated air pressure sensor, only select the
measured values for air pressure (see fig. B.). The latest
measured value is displayed next to the corresponding key on
the right (also see chapter "Explanation of the measured
values", page 19).
The remaining selection options are disabled. Should you
select one of the disabled entries, "E55" is displayed. If
applicable, deactivate the display by pressing one of the keys
marked with 34 and actuating the selection "Off" at the end of
the list in the pop-up window (see fig. B.).
35 This symbol indicates that the measured values displayed
under 37 are calculated (e.g. minimum/maximum measured
value).
36 Indicates the measurement duration.
37 Displays the calculated measured values according to the
specifications under 34 and 39. The calculation starts when
switching the multifunction measuring meter on. Actuating
key 38 restarts the calculation of measured values.
38 Sets the measured values displayed under 37 and the duration
shown under 36 back to zero.
39 Specifies how the measured values under 37 are shown
(see fig. C.):
Minimum: Always shows the smallest detected measured
value from a measuring period.
Maximum: Always shows the largest detected measured
value from a measuring period.
Average: Shows the average value of all detected
measured values from a measuring period.
Hold: Holds the current detected measured value and
shows it continually (when this option is
selected).
Off: Switches off the measured values indication
under 37.
40 Carries out an automatic measurement for the duration of a
predefined recording interval. The recording interval can be
specified in the following screen (see fig. D. and fig. E.,
page 12).
41 Saves the currently displayed measured value as single
measurement in the archive with date and time stamp.
120 Calls up the calibration menu for the integrated air pressure
sensor (see Calibration chapter).
