13 Operating manual – multifunction measuring meter XA1000 / XP200 / XP400 • 08_2015 GB

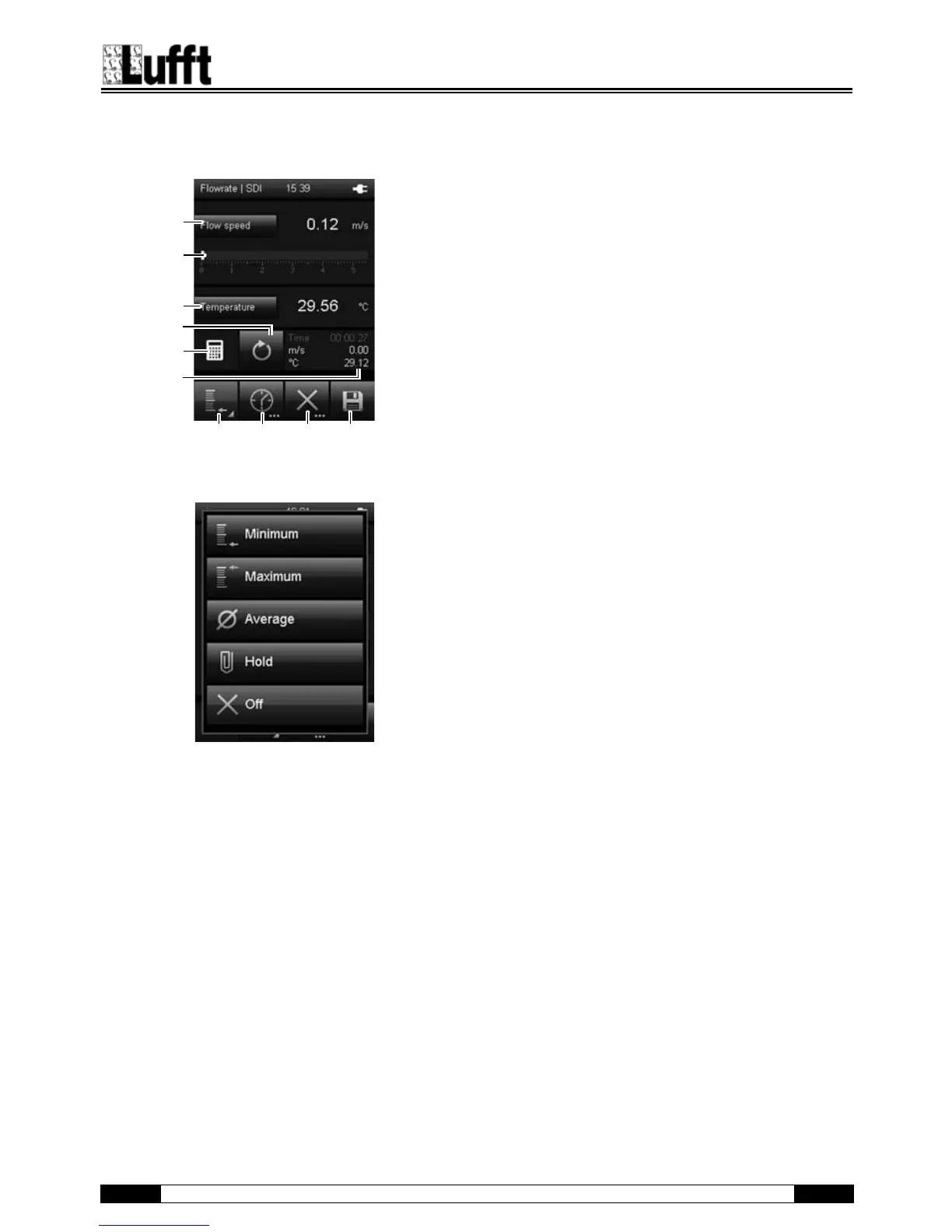

"Measuring mode – Flowrate" screen
48 Shows the measured flow rate as a numerical value in the
selected unit (e.g. m/s).
In order to display and select the available units, touch "Flow
speed" (see chapter "Explanation of the measured values",
page 19).
49 Shows the measured flow rate as visual bars.
50 In order to display and select the available measured values,
touch "Temperature" (see chapter "Explanation of the
measured values", page 19).
Select "Off" to switch the display off.
51 Sets the measured values displayed under 53 and the duration
back to zero.
52 This symbol indicates that the displayed measured values
under 53 are calculated (e.g. minimum/maximum measured
value).
53 Displays the calculated measured values according to the
specifications under 48, 50 and 54:
Time: Duration of the interval
m/s: Shows the flow rate as a numerical value in the
selected unit (e.g. m/s).
°C: Displays the temperature value (e.g. in °C).
54 Specifies how the measured values under 53 are shown
(see fig. B.):
Minimum: Always shows the smallest detected measured
value from a measuring period.
Maximum: Always shows the largest detected measured
value from a measuring period.
Average: Shows the average value of all measured
values which have been detected so far from a
measuring period.
Hold: Holds the current detected measured value and
shows it continually (when this option is
selected).
Off: Switches 53 display off.
55 Carries out an automatic measurement for the duration of a
predefined recording interval. The recording interval can be
specified in the following screen (see fig. C. and fig. D.,
page 14).
56 Opens fig. E., page 15, where you can specify parameters for
the volumetric flow measurement (e.g. the form of the object
to be measured).
57 Saves the currently displayed measured value as single
measurement in the archive with date and time stamp.
