15 Operating manual – multifunction measuring meter XA1000 / XP200 / XP400 • 08_2015 GB

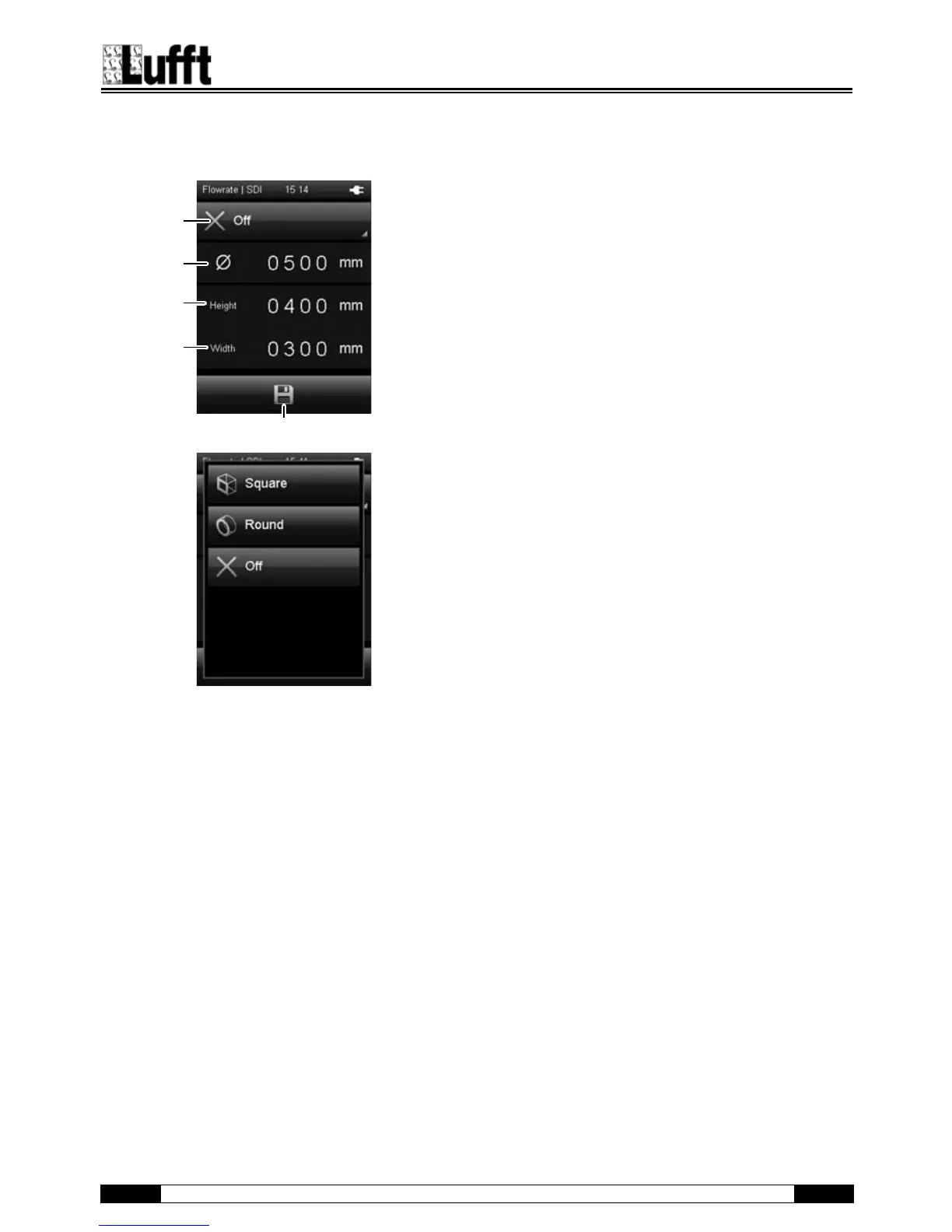

"Measuring mode – Flowrate – Measuring range" screen
65 Selects the form of the object to be measured. The following
options are available (see fig. F. ):
1. Square (volumetric flow measurement)
2. Round (volumetric flow measurement)
3. Off (no volumetric flow measurement)
Depending on the selected form, a different equation is used
to calculate the measured values.
The presentation of measured values under 48 in fig. A.,
page 13 depends on the settings selected here.
66 Determines the diameter of the object to be measured (with
selection "Round" under 65).
67 Determines the height of the object to be measured (with
selection "Square" under 65).
68 Determines the width of the object to be measured (with
selection "Square" under 65).
69 Saves the settings and returns to fig. A., page 13.
The measured values for the volumetric flow can only be
displayed under 48 in fig. A., page 13.
During volumetric flow measurement, further measured
values, such as the flow rate, can be displayed under 50 in
fig. A., page 13.
Note!
The settings saved here are also used for all following
measurements, unless they are deactivated (in the
corresponding menu item)!
