25 Operating manual – multifunction measuring meter XA1000 / XP200 / XP400 • 08_2015 GB

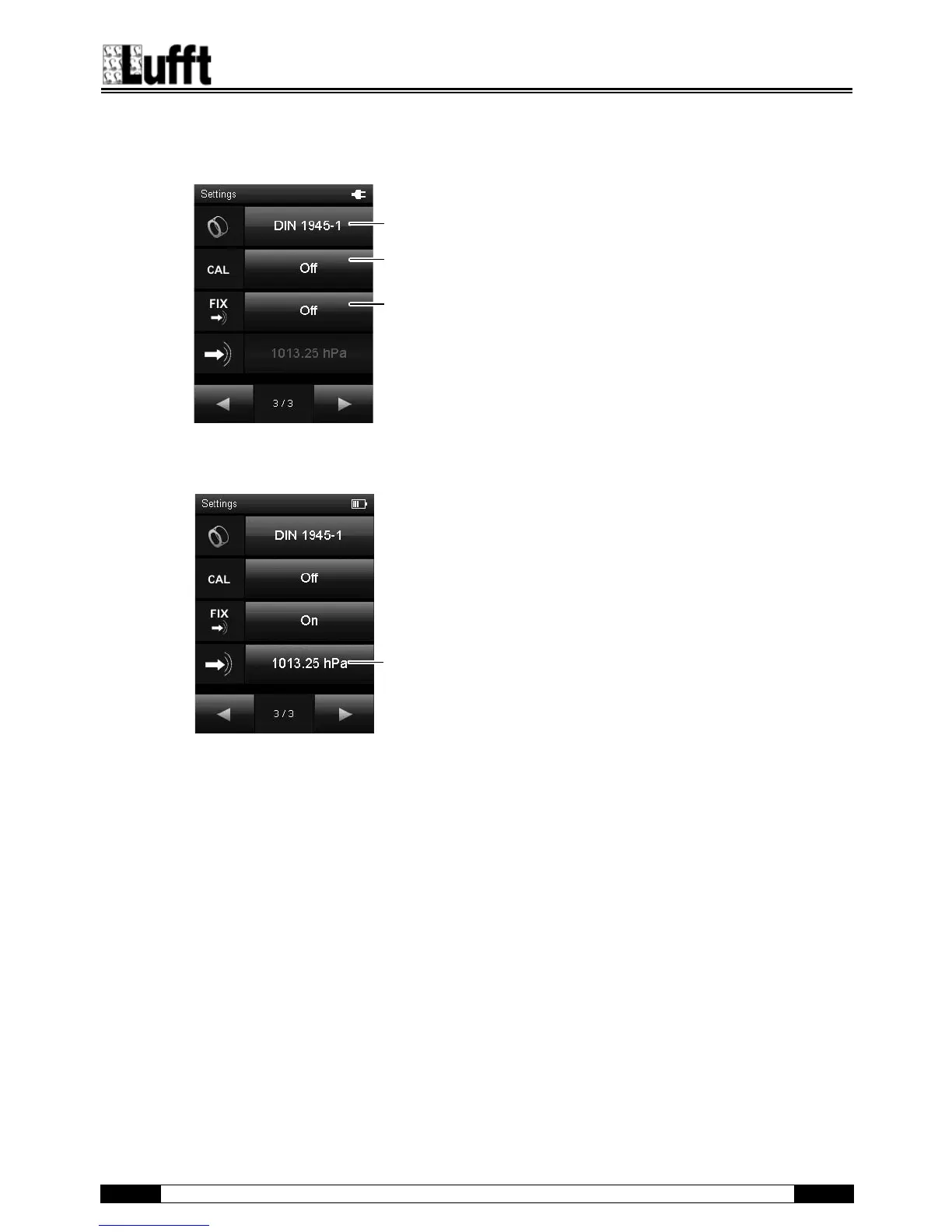

Settings 3/3:
102 Determines the setting for the amount of gas or the volumetric
flow to be measured (also see chapter "Explanation of the
measured values"):
DIN 1343, DIN ISO 2533, DIN 1945-1
Note!
Before using the multifunction measuring meter, make sure
that you are aware of the device's intended purpose and the
respective standard in effect as well as the contents of this
standard.
121 Activates or deactivates the calibration function.
Further information on the calibration function can be found in
the Calibration chapter.
Note!
After switch-off of the device, the calibration function is
switched to "Off".
160 Activates or deactivates the fixed reference value pressure for
the calculation/measurement of pressure-dependent values.
FIX Off:
The pressure value is provided by the internal
pressure sensor
FIX On:
The pressure value is the value set under 161
(see fig. B.)
161 Determines the pressure value for the calculation of
pressure-dependent values (e. g. flow rate).
Note!
This value can only be changed if FIX is set to "On".
