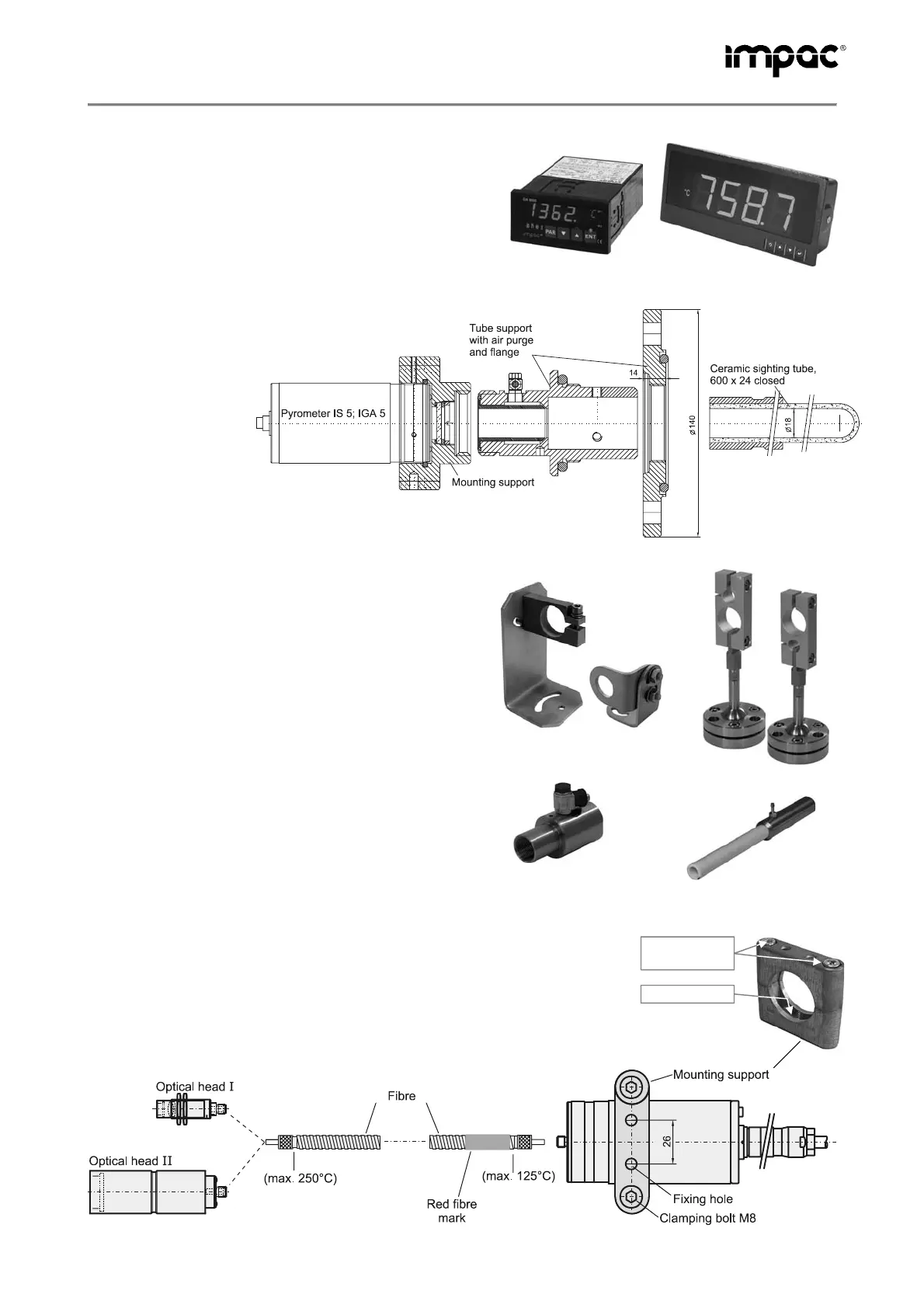

INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO
40
Displays:
For temperature indication of the pyrometer IMPAC offers
several digital displays which can also be used for remote
parametrizing of the pyrometer.
Digital display DA 6000
LED large display
The flange system (for IS 5; IGA 5)
is a modular mount-
ing system to fix the
pyrometer on fur-
naces, vacuum
chambers, etc. It can
consist of e.g. mount-
ing support, tube
support with air purge
and flange and an
open or closed ce-
ramic sighting tube.
The mounting support can be equipped with
a quartz window for vacuum applications.
Mounting (for IS 5-LO; IGA 5-LO):
For mounting and aligning the pyrometer to the meas-
ured object mounting angles or a ball and socket mount-
ing is available. The ball and socket mounting is an easy
way to align the pyrometer to the measured object. The
clamping-screws of the ball and socket mounting enable
an easy and fast adjustment of the pyrometer in all
directions.
Mounting angle
Ball and socket mounting
Air purge (for IS 5-LO; IGA 5-LO):
The air purge protects the lens from contamination with
dust and moisture. It has to be supplied with dry and oil-
free pressurized air (1,5 m³ / h) and generates an air
stream shaped like a cone.
Air purges
5.2 Connection overview IS 5-LO; IGA 5-LO
A mount is supplied for connecting the signal processor. After loosening the
clamp screws, it can be fastened using the two exposed screw holes.
For fixing the optical head, a ball-and-socket mount or a mounting angle is
recommended (see 5.1 Accessories).
The fibre optic cable has red heat shrink tubing on the signal processor side
and black heat shrink tubing on the side of the optical head. Make sure the
fibre optic cable is connected correctly!
Clamping bolts
for converter
Fixing holes
