3. Installation and Operating Instructions
3.1 Contents
SPECTRA and SPECTRA X light engines all ship with the following list of
standard components.#

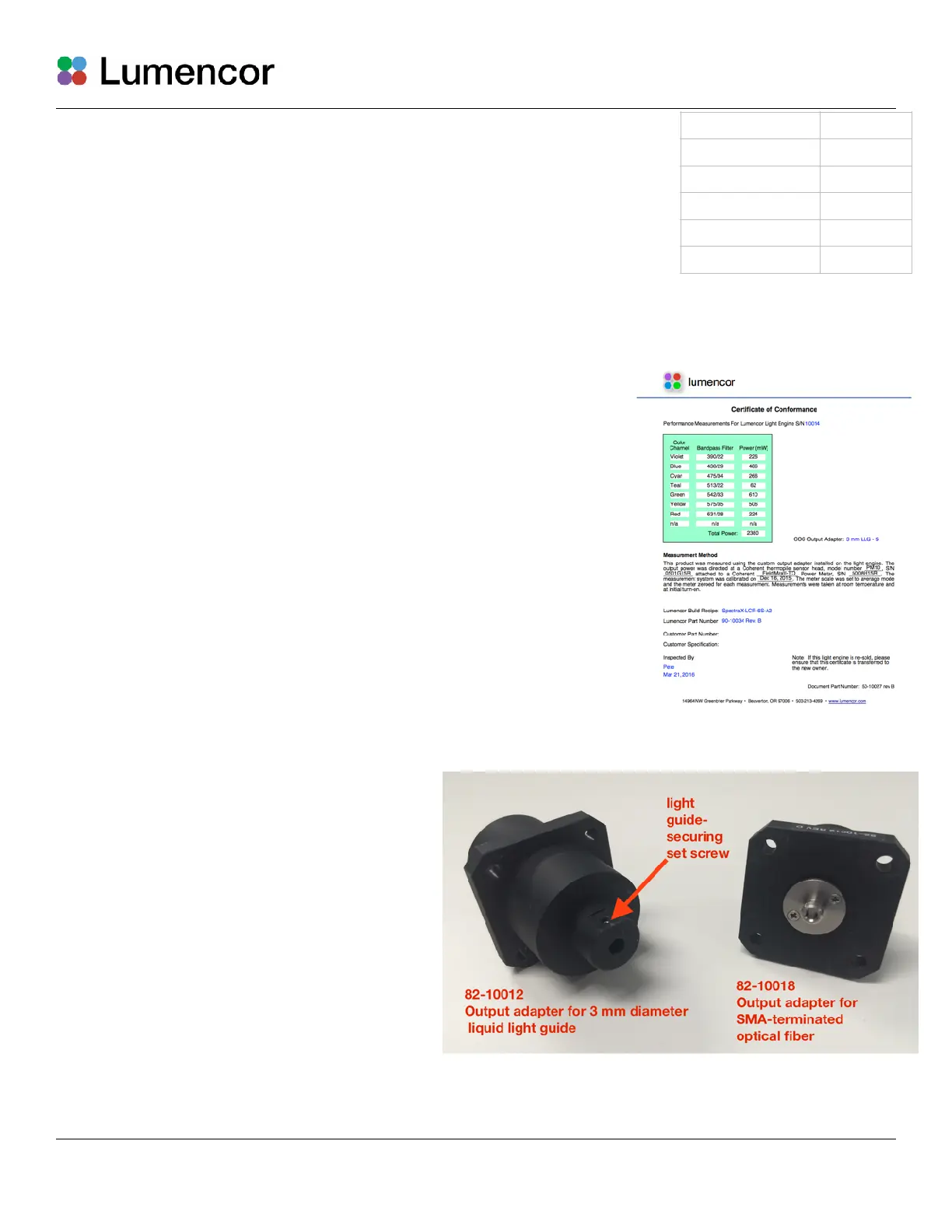

1. SPECTRA or SPECTRA X light engine, configured with four, five, six
or seven output channels. The installed excitation filter configuration will be listed on the
certificate of conformance supplied with the unit (Figure 1).#
2. A 24V/9.2A DC power supply (Lumencor part no. 27-10019)
[1].#
3. A region-specific 6ft AC power cord for the power supply
(see adjacent table).#
4. A USB-to-RS232 cable (Lumencor part no. 29-10011) for
serial communication with computer workstations or the
Light Engine Control Pod.#
5. Output adapter for light delivery via 3 mm diameter
liquid light guide or SMA-terminated optical fiber (Figure
2).#
Notes
[1] SPECTRA X light engines shipped before March 2017 were
supplied with a 28V/7.9A power supply
(Lumencor part no. 27-10003). The correct
power supply rating for the light engine is
marked above the DC power input
connector on the back of the light engine
(Figures 3 and 5).#
3.2 Installation
NOTE: Any end-product/system
incorporating or coupled to a Lumencor
Light Engine shall be fully evaluated to
verify all applicable safety and regulatory
compliance requirements prior to use.#
