Lumens LC200

7
Chapter 4 Instruction for installation

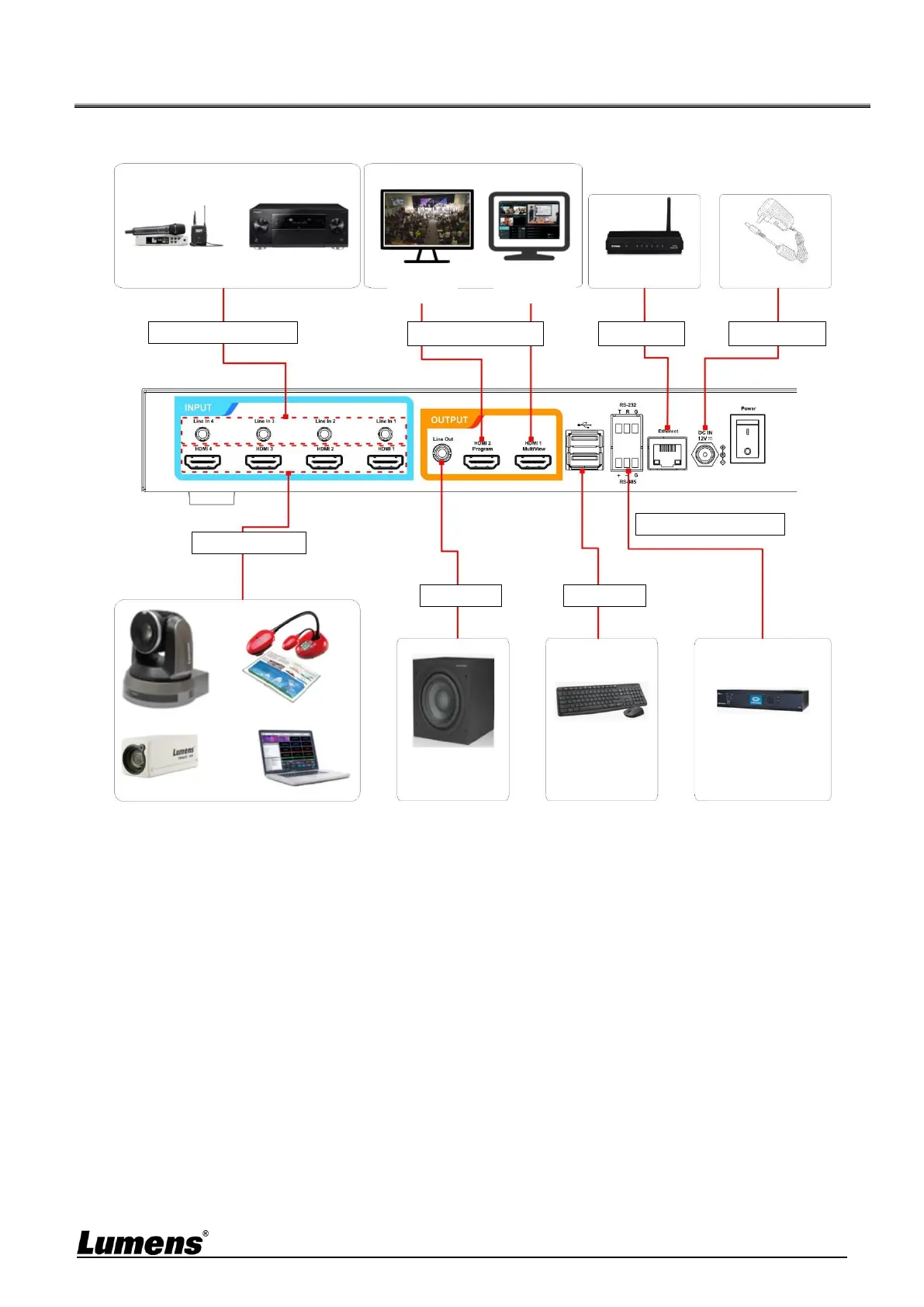

4.1 Product connection diagram
Microphone
Amplifier
Line/MIC device Audio In
Display
(Program)
Display
(MultiView)
Router
HDMI output
LAN
Power Supply
Power Cord
HDMI Source Input
Document
Camera
Computer
IP Camera
Audio Output
Speaker
External
Keyboard/
Mouse
Environment
Control
Equipment
USB Control
RS-232/RS-485 Control
Box Camera
