Lumens LC200 User Manual

8
Chapter 5 Function Description

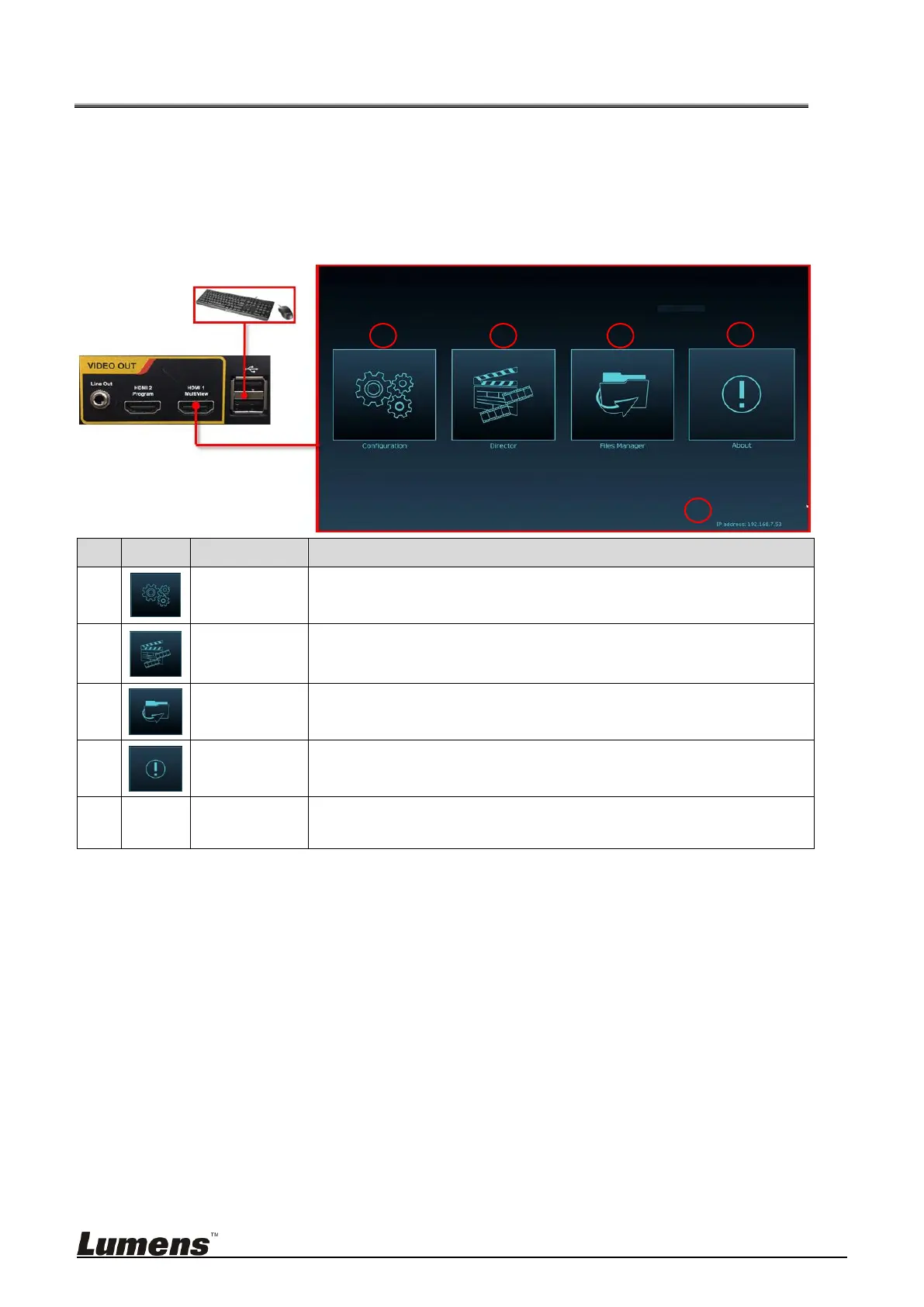

5.1 Real-time operation menu
Connect the HDMI1 MultiView output to the display panel to show the real-time
operation menu
Connect the keyboard/mouse through the USB port and use the keyboard/mouse to
select the menu settings
No
Icon
Name
Function Descriptions
1
Parameter
setting
Perform the system network setting, recording/streaming
compress setting
2
Casting
Management
Input signal source selection, audio management,
recording/streaming control, output version selection, and
network video camera control
3
File
management
Conduct the video file content management, including the
following functions: Upload, download, delete, replay video files
4
About
Display the current firmware version and relevant production
information of LC200
5
NA
Device IP
When connecting to the router, the current assigned device IP
address will be displayed
1
5
4
3
2

Lumens LC200 Specifications

General

Internal	No
Product color	Black
LED indicators	Yes
Number of persons	- person(s)
Supported aspect ratios	16:9
Analog signal format system	-
HDMI in	4
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio (L/R) out	1
Headphone outputs	0
USB connector type	USB Type-A
HDMI ports quantity	6
Number of HDMI outputs	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
AC adapter output current	2 A
AC adapter output voltage	12 V
Maximum frame rate	60 fps
Supported resolutions	640 x 480, 1280 x 720, 1920 x 1080
Supported video modes	480p, 720p, 1080p
Megapixel	- MP

Weight and Dimensions

Depth	122.5 mm
Width	431 mm
Height	44.3 mm
Weight	1200 g
