RS-422 connection instructions

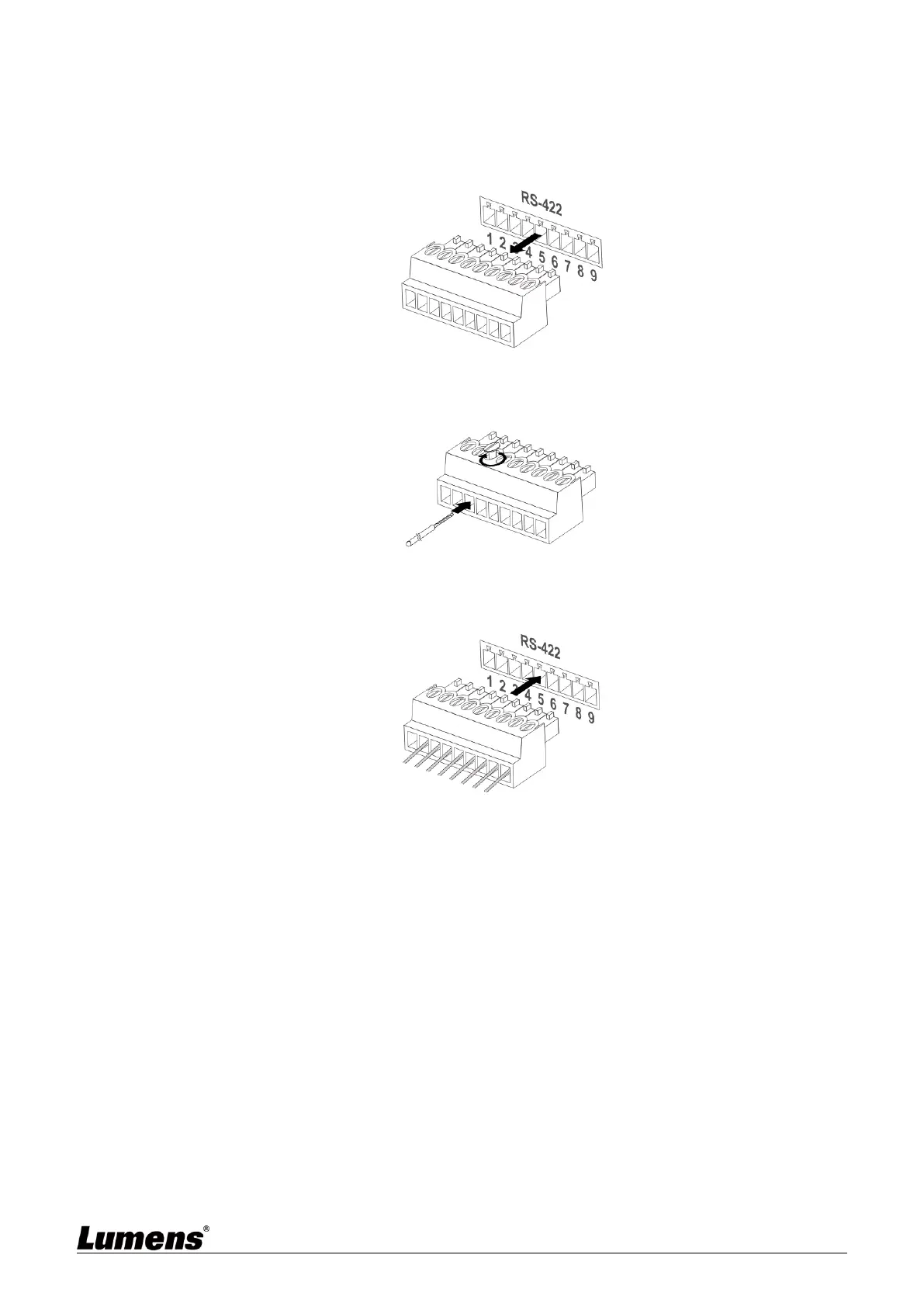

1. Hold the two sides of RS-422 connector and pull out in the direction shown by the
arrow in the figure below
2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector
hole; then use flat screw driver to fix it
3. Insert the wired RS-422 connector back to the Camera. Now the connection is
completed
