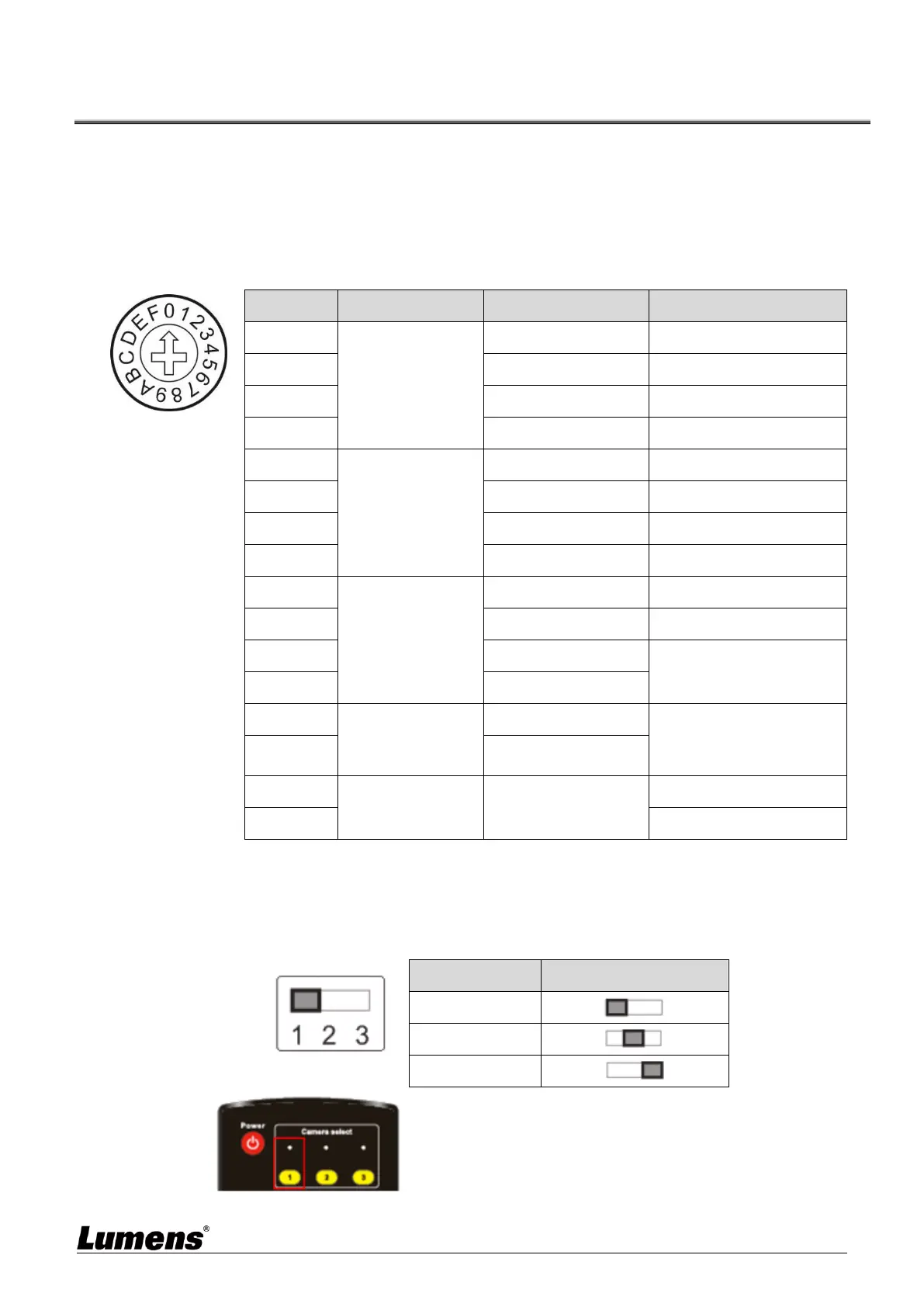

Chapter 7 DIP Switch Setting
7.1 DIP SWITCH
7.1.1 OUTPUT Switch (Switch to different output resolutions)
To switch via the OSD/ RS-232 Command is also available based on the last
executed action
7.1.2 IR SELECT (Selected by Remote control)
When using the remote control, please make sure the settings of IR SELECT and
the Camera Select of the remote control are consistent
ID
Setting
1
2
3
ID
Resolution
Frame Rate
0
3840x2160p
59.94
1
50
2
29.97
3
25
4
1920x1080p
59.94
5
50
6
29.97
7
25
8
1280x720p
59.94
9
50
A
29.97
<Remark> VC-A71PN
does not support 720p
29.97/25 fps resolutions
B
25
C
1920x1080i
59.94
<Remark> 1080i mode
only supports HDMI/SDI
output. When 1080i mode
is set, NDI output is 1080p
D
50
E
Reserved
Reserved
F
