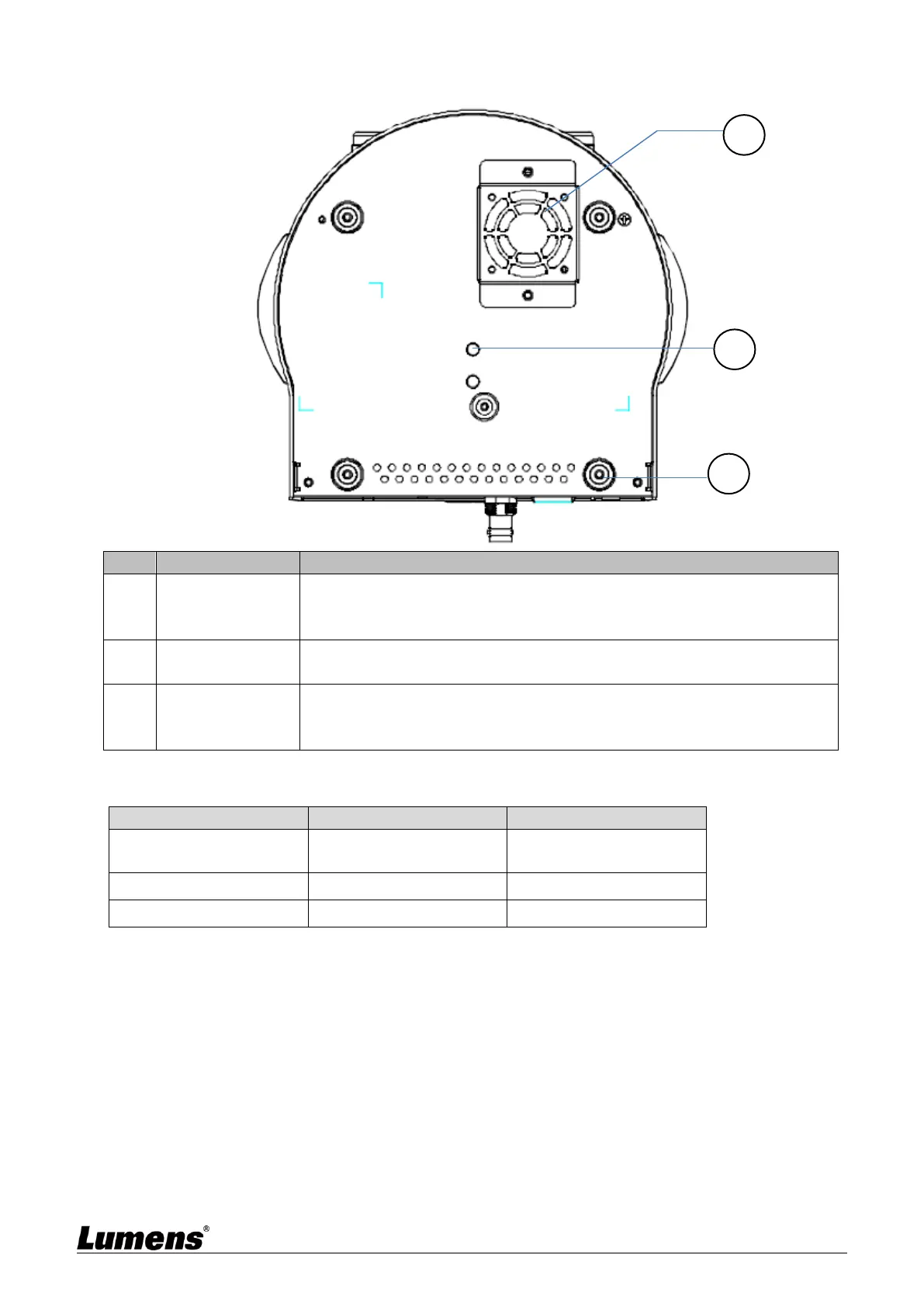

3.1.3 Bottom
NO.
Item
Function Descriptions
17.
Mute cooling fan
The cooling fan automatically controls its rotation speed and performs
cooling in cope with the operation temperature of the machine
<Remark>The cooling fan is not available on VC-A71PN.
18.
Tripod deck lock
hole
The camera is mounted on a (specification) 1/4” - 20 UNC tripod
19.
Rotatable foot
pad
When using the metal plates of accessories, remove 4 pieces of
rotatable food pads on the bottom by rotating counterclockwise, and
then install the mental plates
3.2 Description of LED indicator
Status
Power
Standby
Startup in progress
(initialization)
Green light
Orange light
In use
Green light
No indicator
In standby mode
No indicator
Orange light
3.3 Tally Lamp Function Description
3.3.1 Tally Lamp function may be enabled through the control of RS-232 command. The
setting method is as follows:
Tally Mode: 8x 01 7E 01 0A 01 0p FF
p = 0: OFF
p = 4: Red light (half-brightness)
p = 5: Red light (full-brightness)
p = 6: Green light (full-brightness)
p = 7: Orange light (full-brightness)
