Chapter 4
Instruction for instal
lation
4.1
Camera dimension:
4.1.1.1

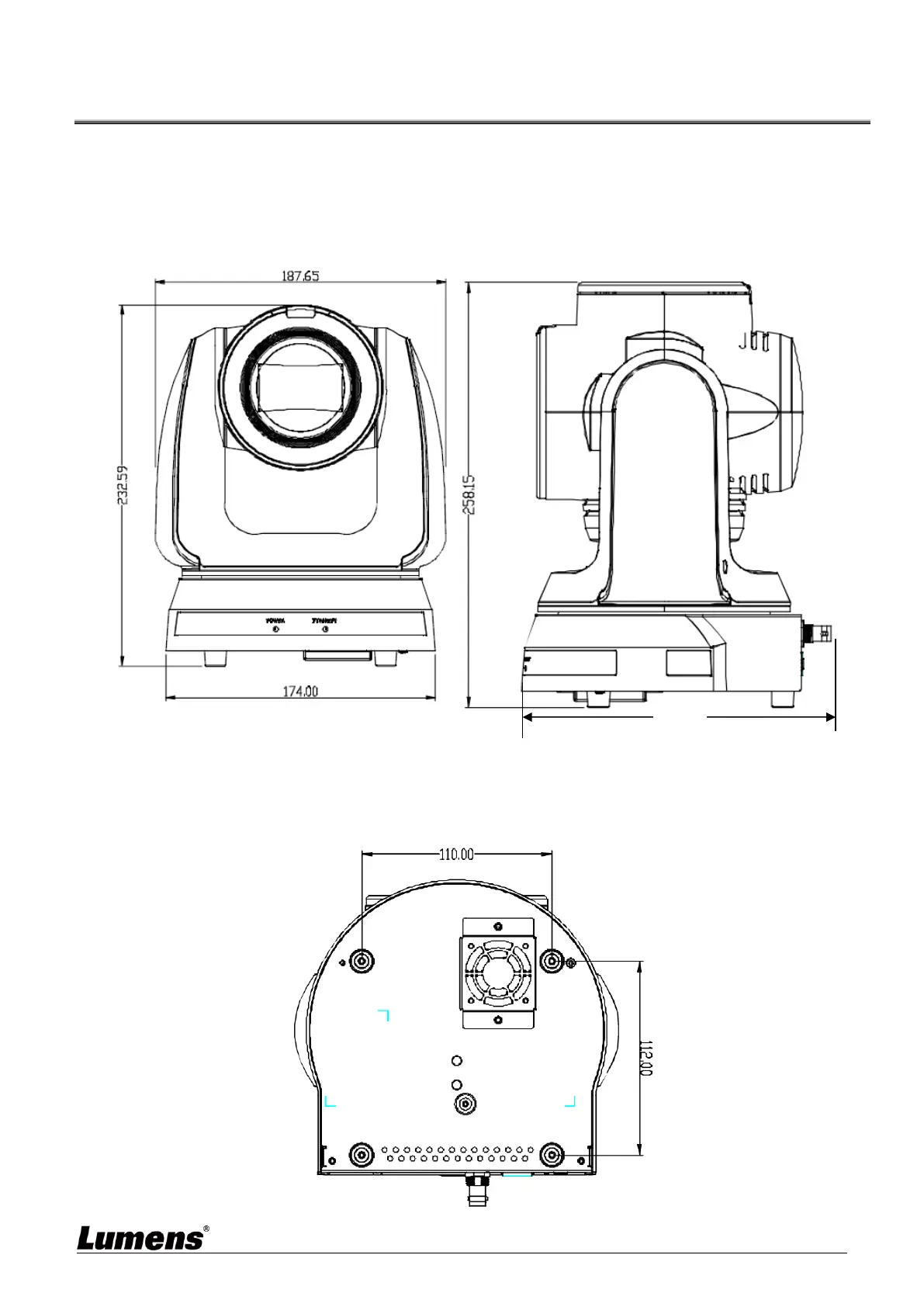

Camera front view and side vi
ew
Lengthx width x height
:
232 x 188 x 189 mm
Weight: 3.0Kg (excluding the metal plate)
4.1.1.2
Camera base
The camera base has tripod mount lock holes and can be installed on the tripod
deckof
a standard specification 1/4”
-20 UNC.
189
8
10
