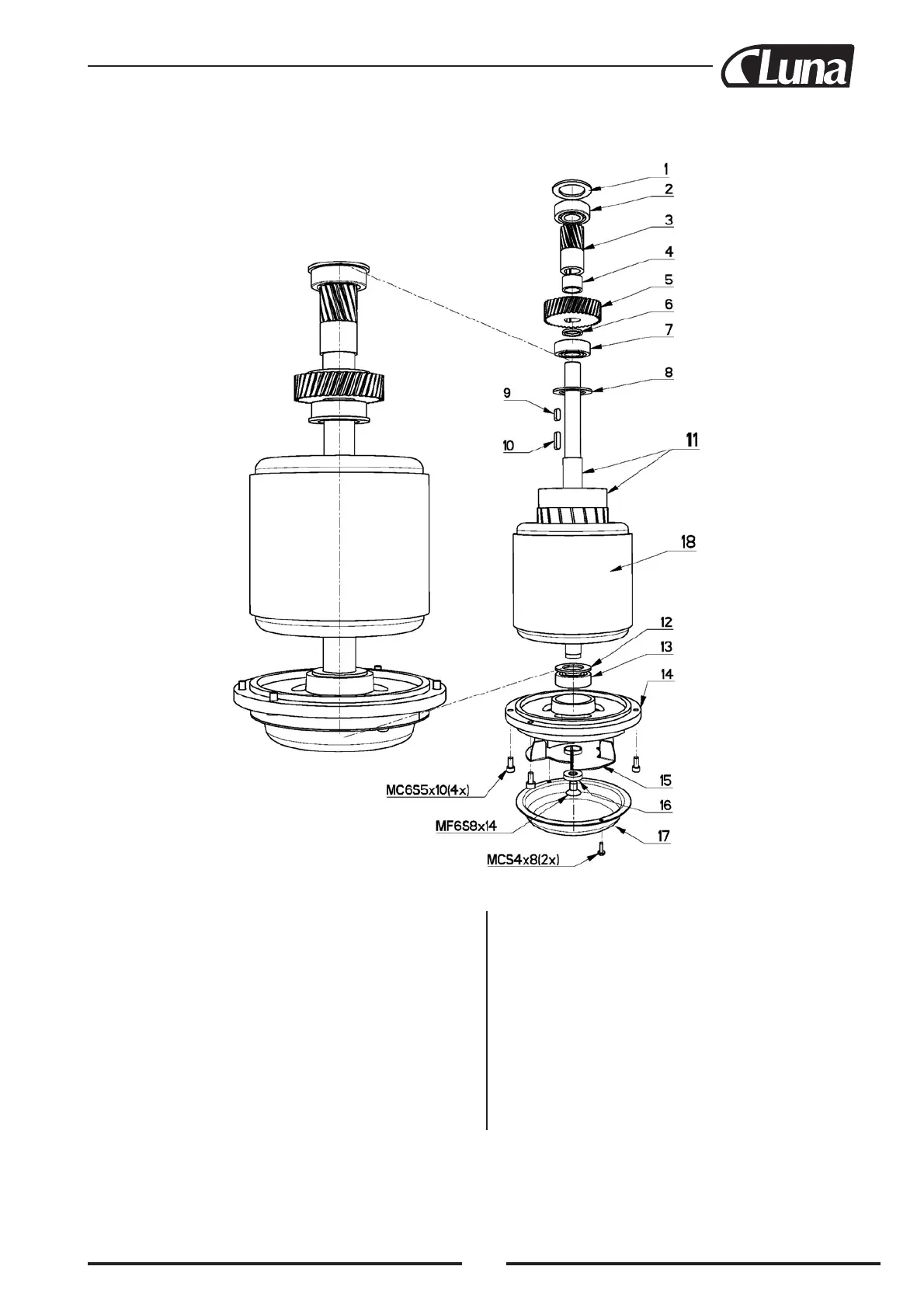

Luna MD30F - Engine Shaft Components; Engine Shaft Exploded View

29
SHAFT, ENGINE
Pos. Art.No Description
1. 1011 Washer
2. 1012 Ball bearing
3. 1013 Gear
4. 1014 Spacing sleeve
5. 1015 Gear
6. 1016 Spacing sleeve
7. 1012 Ball bearing
8. 1011 Washer
9. 1017 Key
Pos. Art.No Description
10. 1018 Key
11. 1019 Rotor shaft
12. 1020 Washer
13. 1012 Ball bearing
14. 1021 Bearing cover
15. 1022 Fan
16. 1023 Washer
17. 1024 Fan cover
18. 1025 Stator 80/2-4-70
