Luna ML 1640 User Manual

127
Electri
c Cabinet

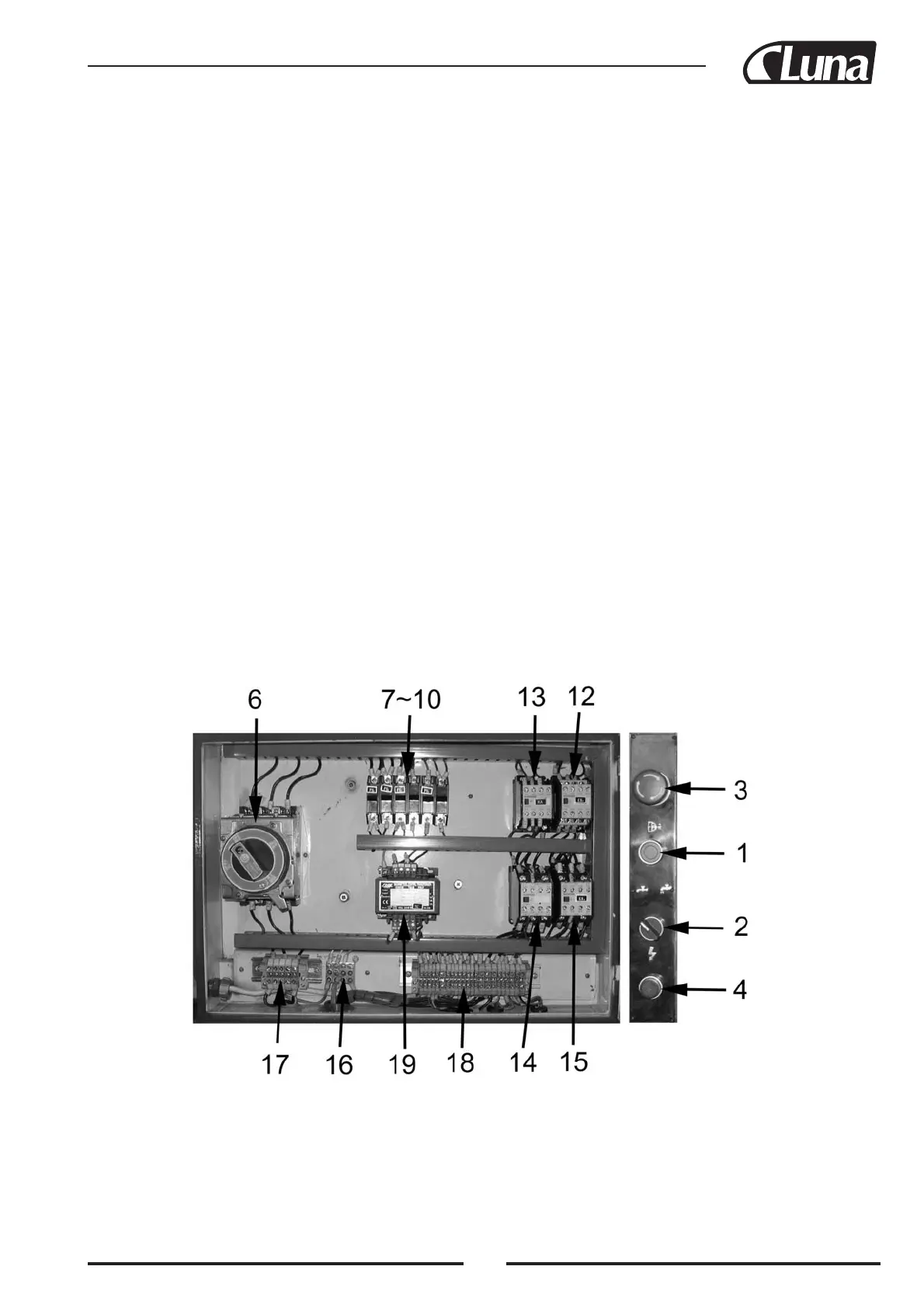

Index Part
N
o. N o. Description Size Qty.
1 ............ ZX-SB1E .......................... Jog Button ................................................................... LAY12-10 1
2 ............ ZX-SA2E .......................... Coolant Control Button ............................................... LAY12-11X/2 1
3 ............ ZX-SB2E .......................... Emergency Stop .......................................................... LAY12-01ZS/1 1
4 ............ ZX-HLE ............................ Power Indicator Light ................................................. LAY12-AD/110V 1
5 ............ SQ2SQ3E .......................... Stroke Switch .............................................................. LXW5-11D1 2
6 ............ ZX-QF ............................... Master Switch (40A) ................................................... DZ 15-40 1
7 ............ ZX-FU1 ............................. Fuse (2A) .................................................................... RT18-32 1
8 ............ ZX-FU2 ............................. Fuse (3A) .................................................................... RT18-32 1
9 ............ ZX-FU3 ............................. Fuse (3A) .................................................................... RT18-32 1
10 .......... ZX-FU5 ............................. Fuse (3A) .................................................................... RT18-32 1
.............. ZX-FB ............................... Fuse Block .................................................................. 1
11 .......... ZX-QE .............................. Te mperature Relay ...................................................... JW6 1
12 .......... ZX-KM2E ......................... A.C. Contactor ............................................................ 3TB41 1
13 .......... ZX-KAE ........................... A.C. Contactor ............................................................ 3TB80 1
14 .......... ZX-KM3E ......................... A.C. Contactor ............................................................ 3TB43 1
15 .......... ZX-KM4E ......................... A.C. Contactor ............................................................ 3TB43 1
16 .......... ZX-XBE ............................ Copper Plate (for grounding) ...................................... 1
17 .......... ZX-XT1E .......................... Wiring Board ............................................................... JTL-25 1
18 .......... ZX-XT2E .......................... Wiring Board ............................................................... JF25 1
19 .......... ZX-TCE ............................ Control Transformer .................................................... JBK5-100TH 1
20 .......... ZX-SQ1E .......................... Stroke Switch .............................................................. LXW5-11N1 1
21 .......... SQ4E ................................. Stroke Switch .............................................................. LXW5-11Q1 1
22 .......... SQ5E ................................. Stroke Switch .............................................................. QKS8 1
