Luna ML 1640 User Manual

26
Specifications
Art.no ........................................................................................... 20758 -0606 -0705 -0804 -0903
Luna ....................................................................................................... ML 1660 ML 1840 ML 1860 ML 1880
Capacities:
Swing over Bed ................................................................................ mm 400 460 460 460
Swing over Cross Slide .................................................................... mm 250 290 290 290
Swing through Gap .......................................................................... mm 650 700 700 700
Distance between Centers ................................................................ mm 1500 1000 1500 2000
Headstock:
Hole through Spindle ....................................................................... mm 80 80 80 80
Spindle Mount........................................................................................ D1-8 D1-8 D1-8 D1-8
Spindle Taper with Sleeve ..................................................................... MT 7 MT 7 MT 7 MT 7
Number of Spindle Speeds .................................................................... 12 12 12 12
Range of Spindle Speeds 50Hz ........................................................rpm 25-1800 25-1800 25-1800 25-1800
Range of Spindle Speeds 60Hz ........................................................rpm 30-2160 30-2160 30-2160 30-2160
Lubrication Method ............................................................................... Splash Splash Splash Splash
Gearbox:
Number of Longitudinal and Cross Feeds ............................................. 122 122 122 122
Range of Longitudinal Feeds (mm/rev) ........................................... mm 0,04-2,46 0,04-2,46 0,04-2,46 0,04-2,46
Range of Cross Feeds (mm/rev) ..................................................... mm 0,03-1,23 0,03-1,23 0,03-1,23 0,03-1,23
Number of Inch Threads ........................................................................ 61 61 61 61
Range of Inch Threads ................................................................. T.P.I. 1-5/8 - 72 1-5/8 - 72 1-5/8 - 72 1-5/8 - 72
Number of Metric Threads .................................................................... 24 24 24 24
Range of Metric Threads ................................................................. mm 0.5 - 20 0.5 - 20 0.5 - 20 0.5 - 20
Compound and Carriage:
Maximum Tool Size ........................................................................ mm 25 x 25 25 x 25 25 x 25 25 x 25
Maximum Compound Slide Travel ................................................. mm 130 130 130 130
Maximum Cross Slide Travel .......................................................... mm 230 230 230 230
Maximum Carriage Travel............................................................... mm 1340 890 1340 1900
Tailstock:
Tailstock Sleeve Travel ................................................................... mm 130 130 130 130
Taper in Tailstock Sleeve ...................................................................... MK 4 MK 5 MK 5 MK 5
Miscellaneous:
Main Motor ............................................................................................
230/400 3-fas 230/400 3-fas 230/400 3-fas 230/400 3-fas
............................................................................................................... 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Net Weight (approx.) ......................................................................... kg 2485/2630 2485/2630 2485/2630 2485/2630
Warning
Read and
understand the entire contents of this ma-
nual before attempting set-up or operation! Failure to comply
may cause serious injury!

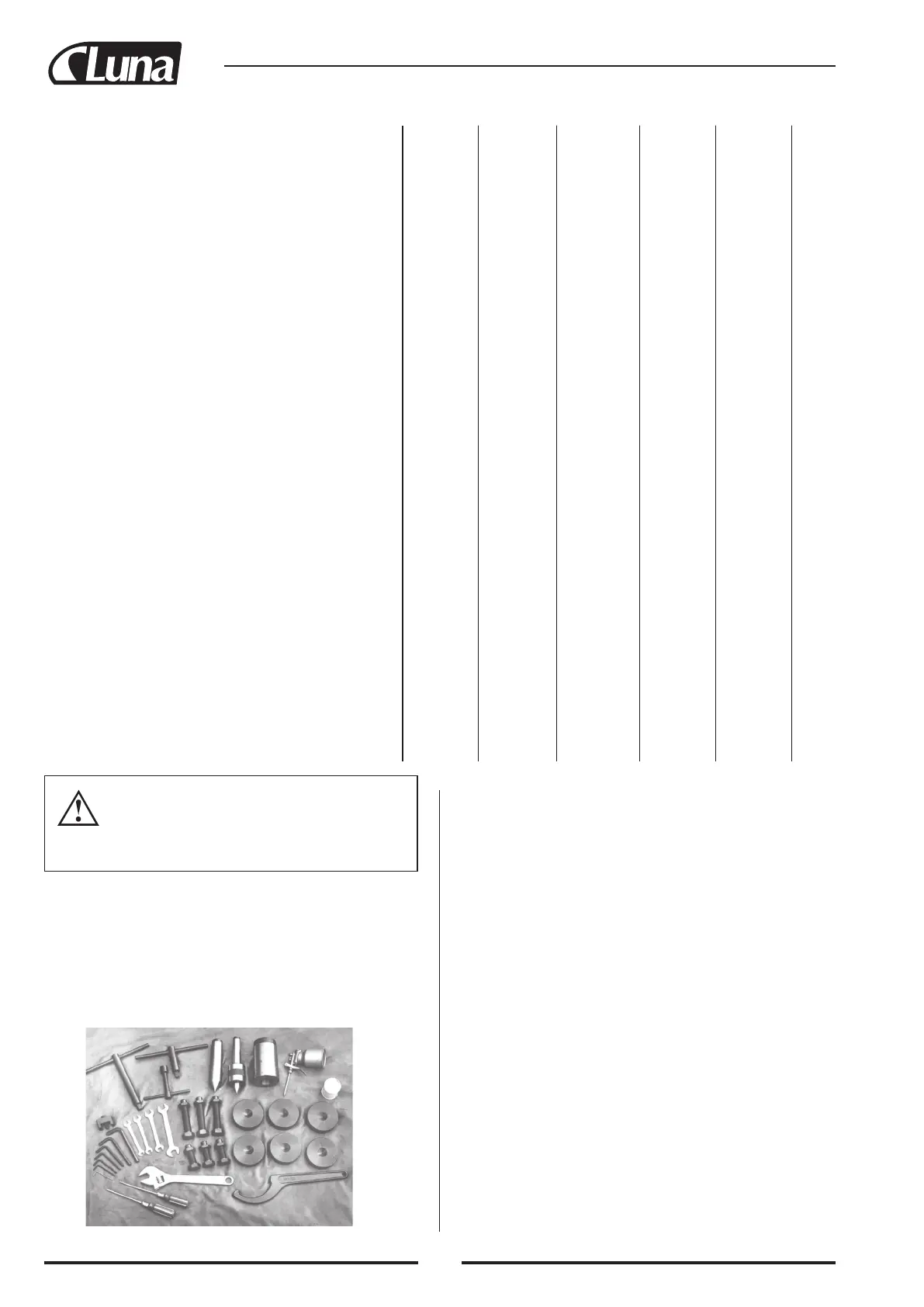

Fig. 1
Contents of the Shipping Container
1 Lathe
1 Steady Rest (mounted on lathe)
1 Follow Rest (mounted on lathe)
1 250mm Three Jaw Chuck (mounted on lathe)
1 320mm Four Jaw Chuck
1 Face Plate (12” face plate for 14” ZX lathes 16” face plate for 16”/18”
ZX lathes)
1 Tool Box
Tool Box Contents
1 Hex Wrench Set
1 Open End Wrench Set
1 Spindle Sleeve
1 Center
6 Leveling Bolts
6
Leveling Pads
1 Flat Blade Screwdriver
1 Cross Point Screwdriver
1 Chuck Wrench
1 Tool Post Wrench
1 Light bulb
1 Adjustable Wrench
1 Oil Gun
1 Cross Feed Handle
2 Shear Pins
1 Live Center (MT4 for 14”/16” ZX lathes MT5 for 18” ZX lathes)
1 Key For Cam Locks
1 Round Nut Spanner
1 Gap-Bridge Pin Driver
5 Fuse
1 Taper Piece
1 Paint Can
1 Parts List
1 Operator’s manual
-0580
ML 1640
410
250
660
1000
80
D1-8
MT 7
12
25-1800
30-2160
Splash
122
0,04-2,46
0,03-1,23
61
1-5/8 - 72
24
0.5 - 20
25 x 25
130
230
1340
130
MK 4
230/400 3-fas
50-60Hz
2485/2630
