Luna ML 1640 User Manual

130

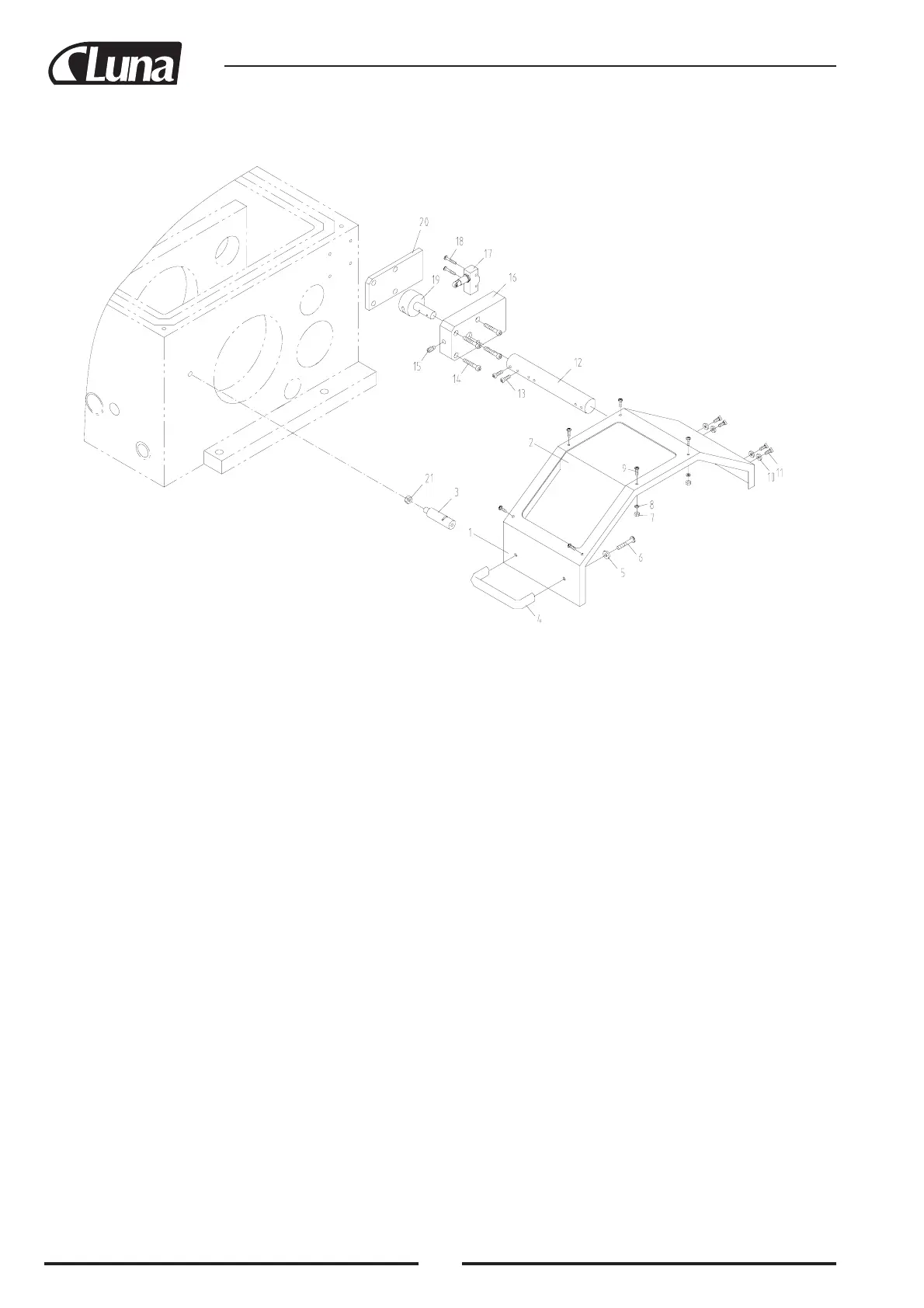

Safety
guard cover
Index Part
N
o. N o. Description Size Qty.
1 ............ ZX-19701E ....................... Protection guard .......................................................... 1
2 ............ ZX-19501E ....................... Protection guard visual glass ....................................... 1
3 ............ ZX-19704E ....................... Fixing rod .................................................................... 1
4 ............ ZX-S04E ........................... Handle ......................................................................... Z96-6 1
5 ............ ZX-S05E ........................... Plain washers .............................................................. 6 2
6 ............ ZX-S06E ........................... Cross recessed pan head screws .................................. M6x12 2
7 ............ ZX-S07E ........................... Hexagon thin nuts ....................................................... M4 6
8 ............ ZX-S08E ........................... Plain washers .............................................................. 4 6
9 ............ ZX-S09E ........................... Cross recessed pan head screws .................................. M4x12 6
10 .......... ZX-S10E ........................... Plain washers .............................................................. 5 4
11 .......... ZX-S11E ........................... Hexagon socket cap head screws ................................ M5x16 4
12 .......... ZX-19703E ....................... Rest bar ....................................................................... 1
13 .......... ZX-S13E ........................... Slotted set screws ........................................................ M8x10 2
14 .......... ZX-S14E ........................... Hexagon socket cap head screws ................................ M6x35 4
15 .......... ZX-S15E ........................... Hexagon socket set screws .......................................... M8x16 1
16 .......... GH1440A-19101E ............ Switch box .................................................................. 1
17 .......... ZX-S17E ........................... Stroke switch ............................................................... LXW5-11Q1 1
18 .......... ZX-S18E ........................... Slotted pan head screws .............................................. M4x25 2
19 .......... ZX-19702E ....................... Shaft ............................................................................ 1
20 .......... ZX-19502E ....................... Washer ......................................................................... 1
21 .......... .......................................... Nut .............................................................................. M8 1
(Not
e:This device is optional)
