Luna ML 1640 User Manual

131

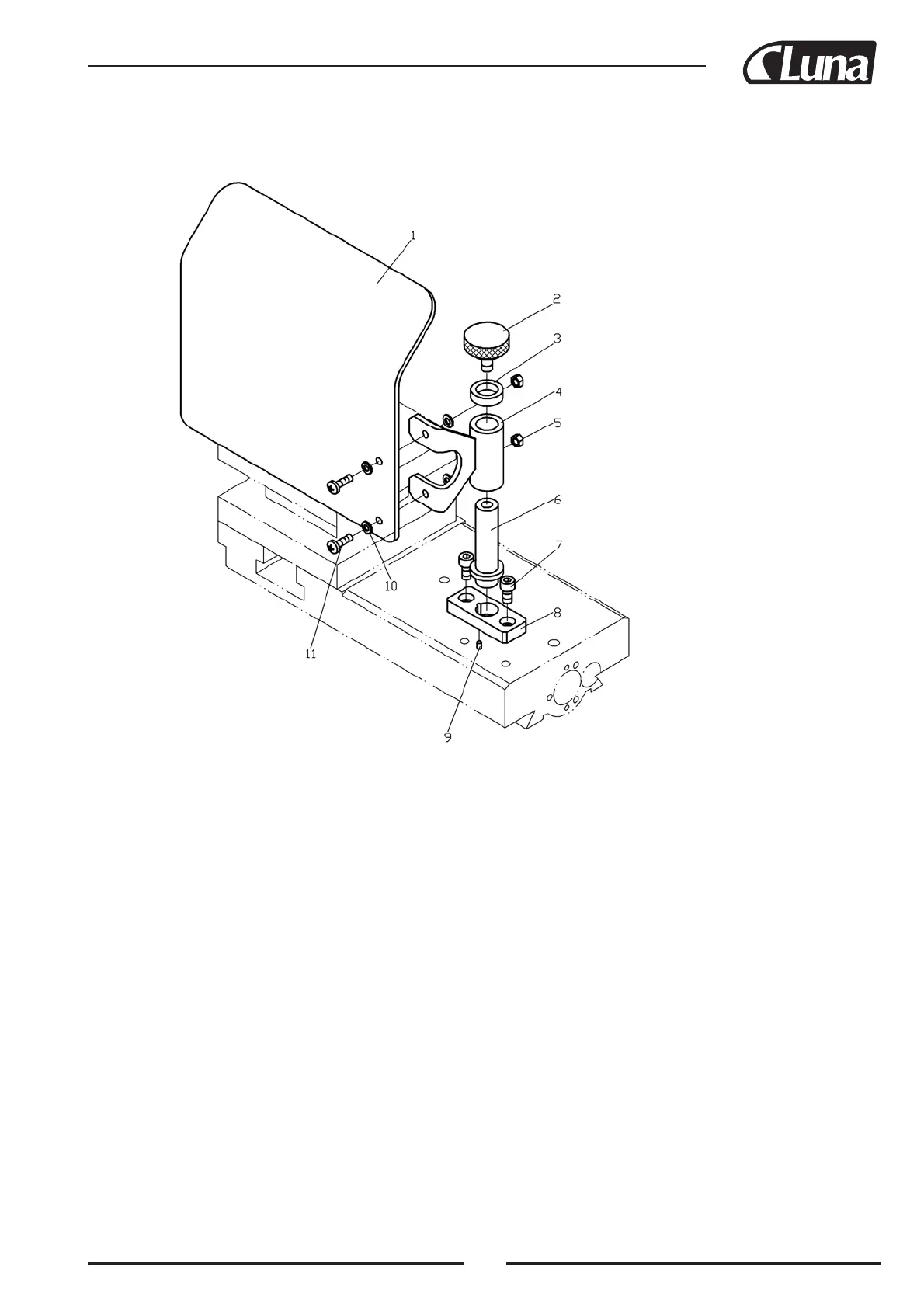

Parts List for Toolpost Protection Device
Index Part
N
o. N o. Description Size Qty.
1 ............ GH-1640ZX-20501 ........... Shield .......................................................................... 1
2 ............ GH-1640ZX-20701 ........... Clamping Screw .......................................................... 1
3 ............ GH-1640ZX-20703 ........... Washer ......................................................................... 1
4 ............ GH-1640ZX-20704 ........... Sleeve .......................................................................... 1
5 ............ GB6170 ............................. Nut .............................................................................. M6 2
6 ............ GH-1640ZX-20705-1 ....... Bracket ........................................................................ 1
7 ............ GB70 ................................. Hex Socket Cap Screw ................................................ M8x16 2
8 ............ GH-1640ZX-20705-2 ....... Bracket ........................................................................ 1
9 ............ GB71 ................................. Slotted Set Screw ....................................................... M4x8 1
10 .......... GB97 ................................. Washer ........................................................................ 6 4
11 .......... GB818 ............................... Cross Recessed Pan Head Screw ............................... M6x20 2
(Not
e:This device is optional)
