CDA3000 Operation Manual
4 Commissioning
By way of the automatic motor identification the characteristic data of IEC
standard motors and ASM servomotors can be determined. The
precondition for problem-free identification is that the rating plate data are
present and correctly entered.
Note: The data of the motor nominal point (max. rated power output
of the motor) must always be entered. In 87 Hz applications
(motor: 230 V, delta configuration) the converted 87 Hz data
must be entered. For more information refer to the CDA3000
Application Manual.
For our example this setting is required.
Following identification of the motor, all control loops are automatically
computed and the necessary parameter adjustments made.
Precondition:
• The motor is connected.
• Hardware enabled ( = ENPO contact closed).

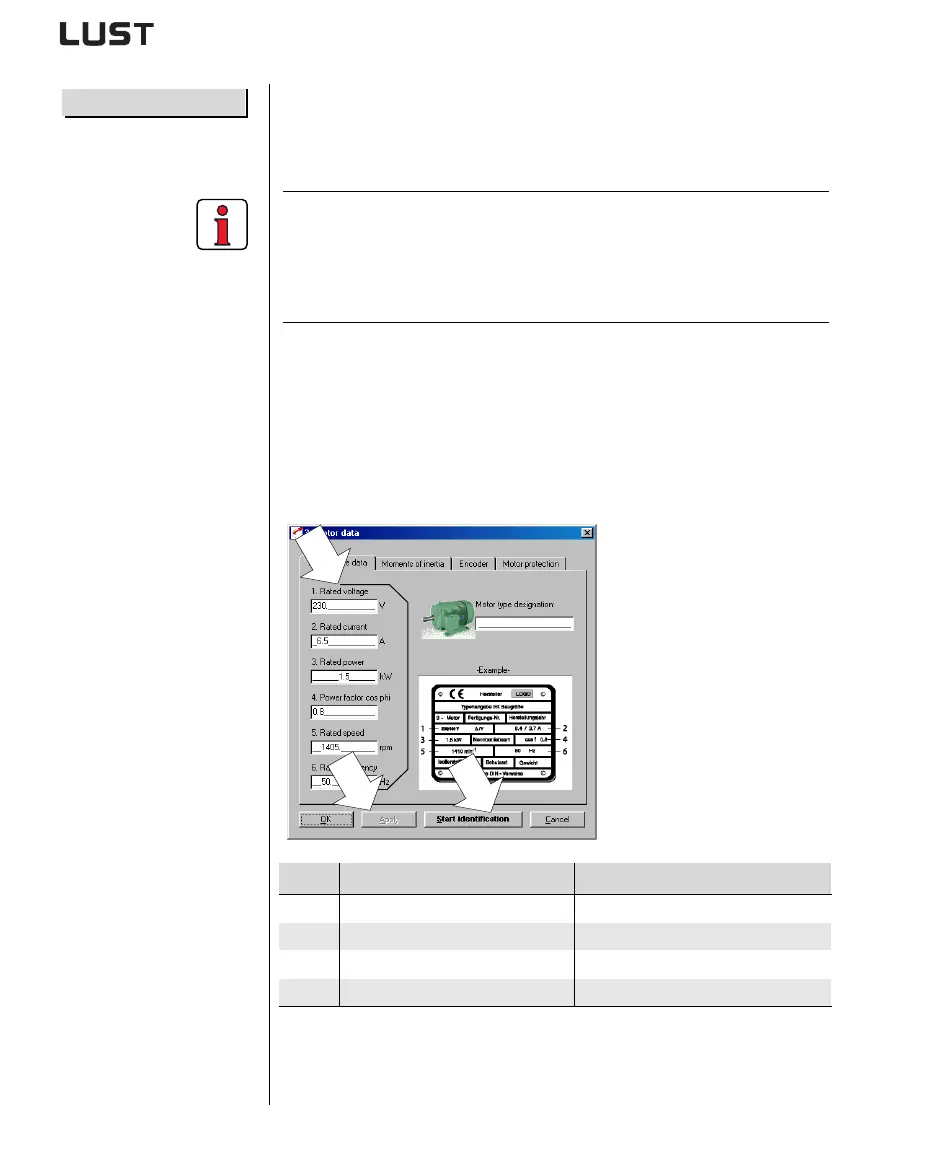

Step Action Note
1
Enter motor data see your motor type designation
2
Click on “Start identification” button Takes approx. 3 min.
3
Apply setting Values are transferred to device
4
Re-open ENPO contact on device Power stage safely disabled
Motor identification is complete
3. Motor data...
1
2
3
