CDA3000 Operation Manual
2-3
2 Mechanical installation
DE
EN
FR
IT
ES
FR
1
2
3
4
5
A
CDA3...,Wx.x
BG1
2)
BG2
2)
BG3 BG4 BG5 BG6 BG7 BG8
Weight [kg] 2.4 3.5 4.4 6.5 7.2 20 31 60
W (width) 70 70 120 170 250 300 412
H (height) 245 270 330 375 600 510
D (depth) 195 220 218 325 305 380
A 40 40 80 130 215 265 340
C 235 260 320 360 555 485
D∅ ∅ 4.8 ∅ 4.8 ∅ 6 ∅ 9
Screws 4 x M4 4 x M4 4 x M5 4 x M8
E 0 50
E1 (with module) 45 –
F 100
100
1)
G > 300 > 400
1) Additionally allow enough space at the bottom for the bending radii of the connecting cables.
2) Corresponding to cold plate version with accessory heat sink HS3X.xxx

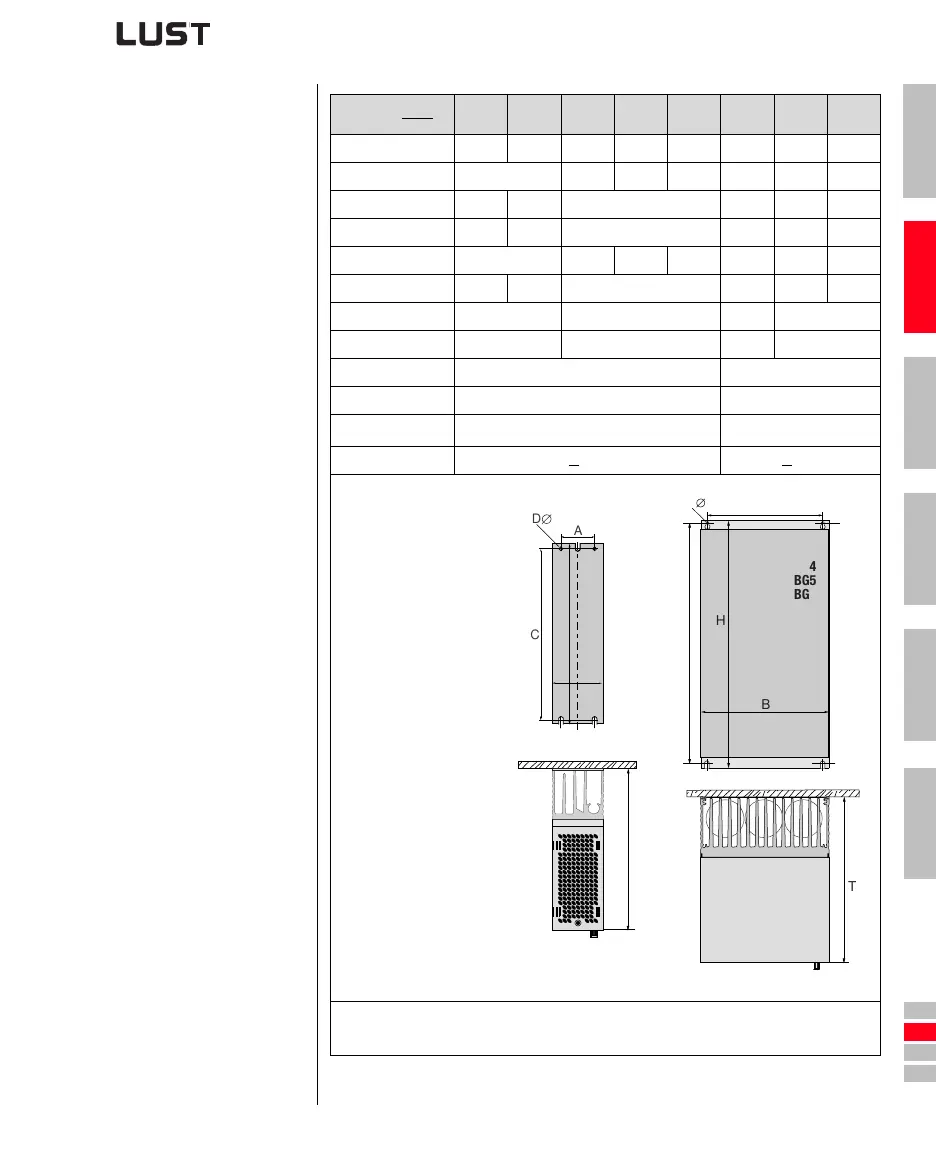

Table 2.2 Dimensional drawings: Wall mounting (dimensions in mm)
A
C
D
T
B
H
A
C
D
B
H
T
BG3
BG4
BG5
BG6
BG7
BG8
BG1
BG2
