Lutron Electronics LOS-CDT Series User Manual

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Sensors LOS-CDT Series Occupancy Sensors
369653c 2 02.07.13
Specifications

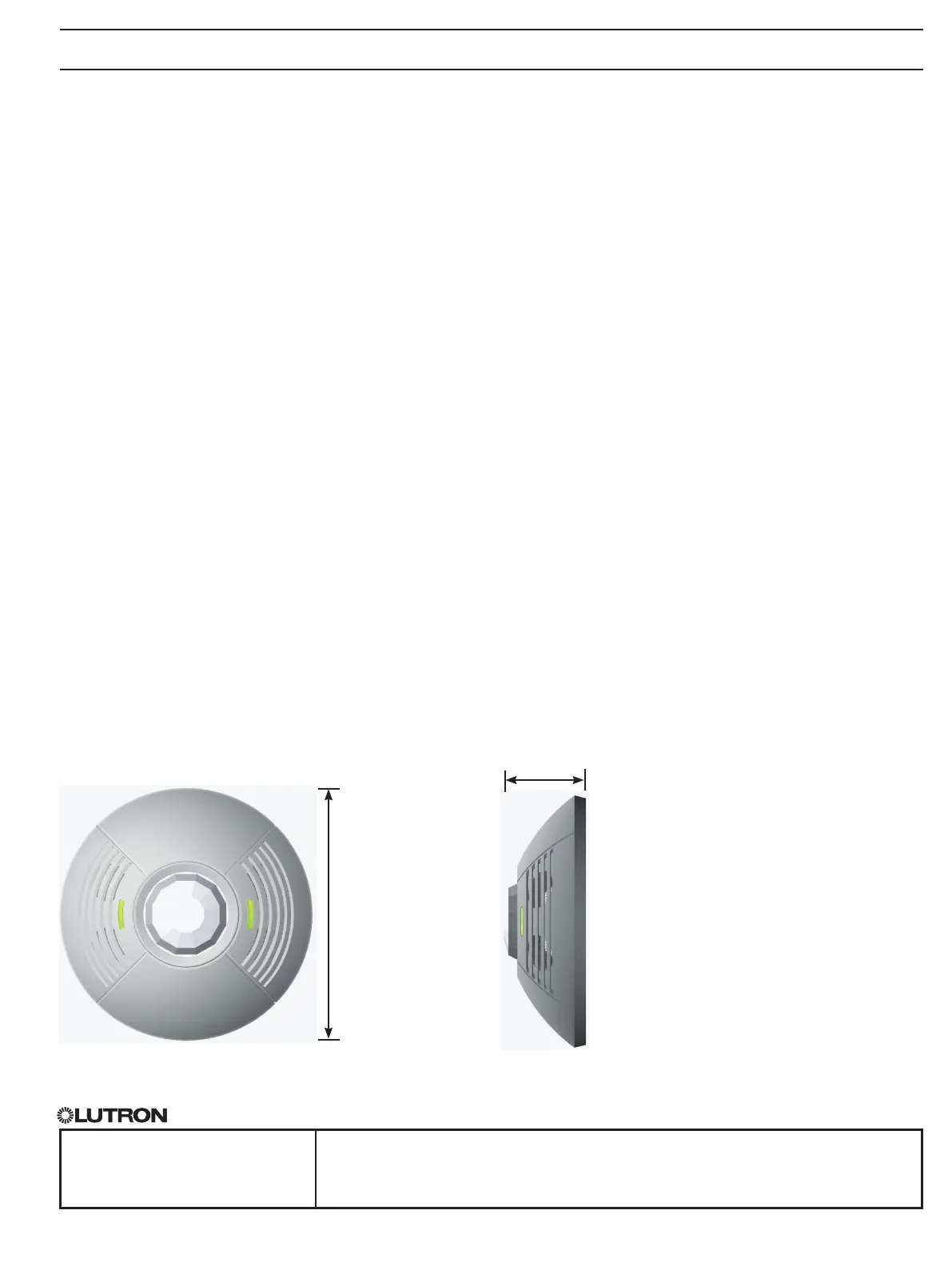

Dimensions
Front View
4.5 in
(114 mm)
1.4 in
(38 mm)
Side View
Regulatory Approvals
• ULR and cULR listed
Power
• Operating voltage: 20 – 24 V-, IEC PELV/NECR
Class2
• Operating current: 33 mA nominal
• Control output: 20 – 24 V- active high logic control
signal with short-circuit protection, open collector
when unoccupied
Environment
• Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Relative humidity: less than 95%, non-condensing
• For indoor use only
Timer Adjustment
• Automatic mode: Continually adapting sensor
automatically adjusts settings to the space
• Manual mode: 8 to 30 minutes
• Test mode: 8 seconds
LED Lamp
• Red: infrared motion detected
• Green: ultrasonic motion detected
Housing
• Rugged, high-impact, injection-molded plastic
• Color-coded leads 6 in (15 cm)
Adaptive Functions
• Installation: 60 minutes
• Learning: 4 weeks for response to error conditions, air
current adaptation, and timer optimization
• Post-learning occupancy periods
—24 hour circadian occupancy periods learned
—Weekly occupancy periods learned
• Adjustments in post-learning period
— Generally occupied periods
(threshold = high-sensitivity mode)
— Generally unoccupied periods
(threshold = miser mode)
Contact Rating (R Models only)
• SPDT 500 mA rated at 24 V- isolated relay
Photo Cell (R Models only)
• Prevents light from turning on when there is sufficient
natural light
• Sensitivity: 0 lx to 1000 lx adjustable
2
