Lutron Electronics LOS-CDT Series User Manual

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Sensors LOS-CDT Series Occupancy Sensors
369653c 6 02.07.13
32 ft (9.8 m)
23 ft (7 m)
23 ft
(7 m)
32 ft
(9.8 m)
12 ft (3.7 m)
22 ft (6.7 m)
64 ft (19.5 m)
45 ft (13.7 m)
23 ft
(7 m)
32 ft
(9.8 m)
Installation
LOS-CDT-2000
Sensor Placement

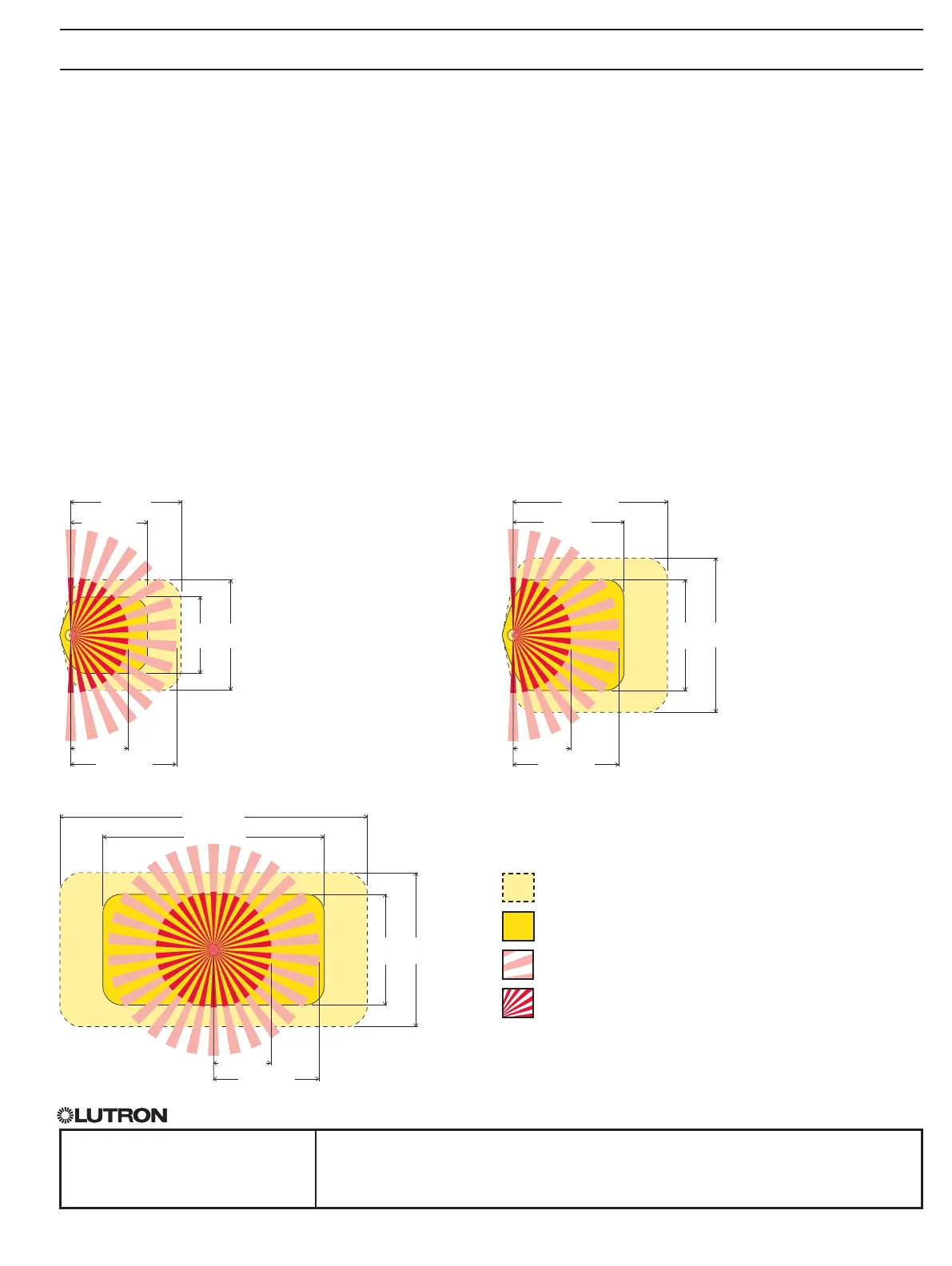

Range Diagrams
• Mount the sensor so the grilles face the open portion of the room and are not facing a nearby wall, window, or
other obstructing object.
• Do not place sensor within 6 ft (1.8 m) of air vents, air handlers, windows, fans, etc., as this may cause false
triggering.
• If installing a 180° occupancy sensor (500 and 1000 models), place the sensor on the same wall as the doorway
so that traffic in a hallway will not affect the sensor; otherwise, place in center of room.
• Closely follow the diagrams shown concerning major and minor motion coverage. The sensor can detect major
motion (e.g. person taking a half-step) at a greater distance than it can detect minor motion (e.g. writing at a
desk or reading a book).
• Decrease total coverage area by 15% for “soft” rooms (e.g. heavy draperies or thick carpeting).
LOS-CDT-1000
Sensor Setup
• Sensor setup is available as a service by Lutron. For more information see the Sensor Layout and Tuning
service document (LutronR P/N 3601235).
LOS-CDT-500
Major motion detection (Ultrasonic)
Minor motion detection (Ultrasonic)
Major motion detection (Passive Infrared)
Minor motion detection (Passive Infrared)
23 ft (7 m)
16 ft (4.9 m)
16 ft
(4.9 m)
23 ft
(7 m)
12 ft (3.7 m)
22 ft (6.7 m)
12 ft (3.7 m)
22 ft (6.7 m)
6
