Lutron Electronics LOS-CDT Series User Manual

®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Sensors LOS-CDT Series Occupancy Sensors
369653c 4 02.07.13
Neutral
Power
Pack
Lighting
Load
NOTE: Maximum 3 occupancy sensors.
Red (+20 – 24 V-)
Blue* (signal)
Black
(common)
Black
White
Red
Red

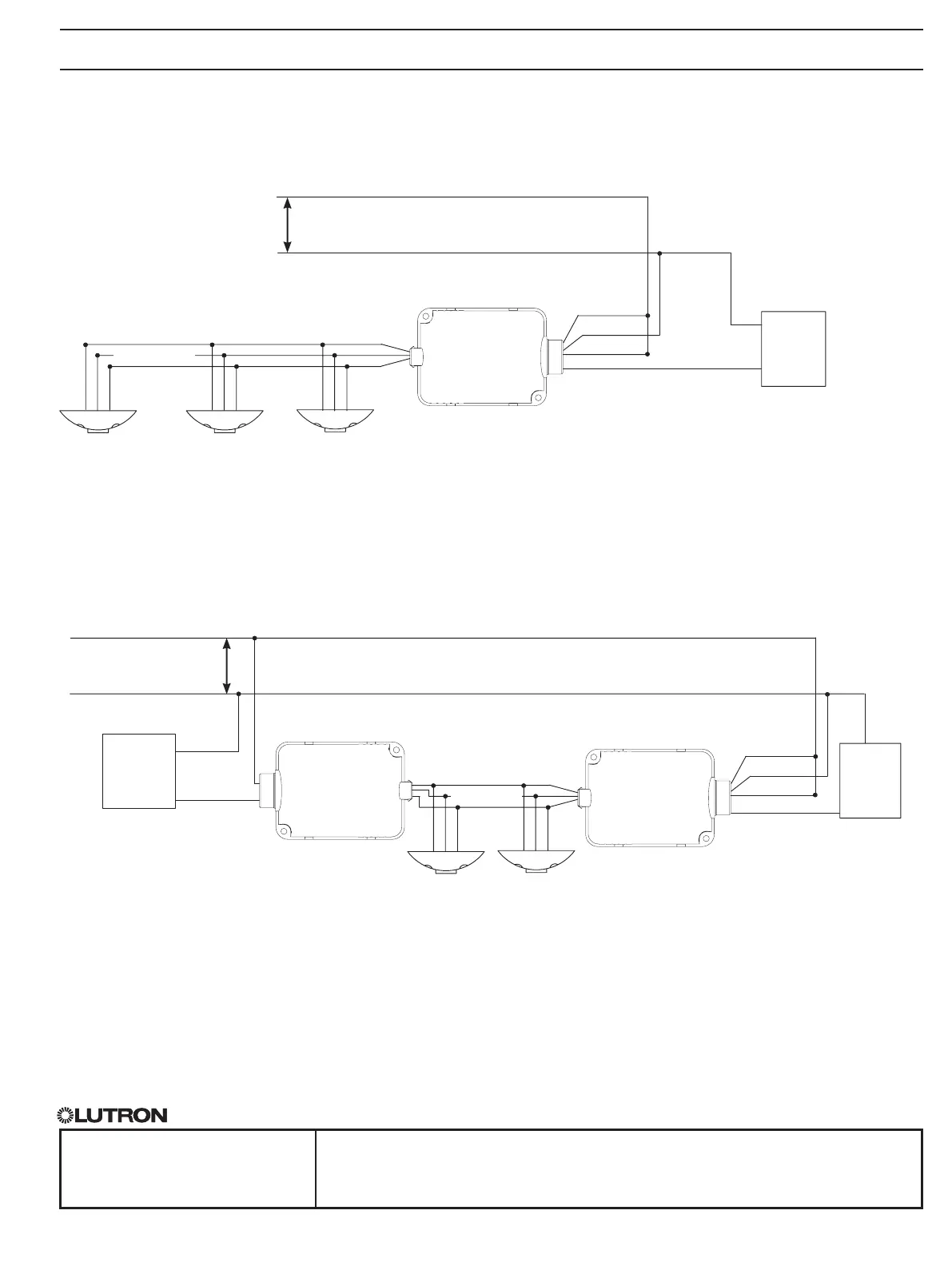

1 to 3 Sensors with Power Pack
Switching Multiple Loads with Auxiliary Power Packs
Line
Neutral
Line
Lighting
Load
Lighting
Load
Power
Pack
Auxiliary
Power
Pack
Red
Red
Red (+20 – 24 V-)
Blue* (signal)
Black
(common)
NOTE: Maximum of 3 devices total (occupancy sensors and auxiliary power packs) can be connected to a power pack.
*Use gray wire for LOS-CDT-500R-WH, LOS-CDT-1000R-WH, and LOS-CDT-2000R-WH.
Black
White
Red
Red
120 / 277 / 347 V~ 60 Hz;
230 V~ 50 / 60 Hz
120 / 277 / 347V~ 60 Hz
230 V~ 50 / 60 Hz
Wiring: Stand-Alone Control
4
