3. FRONT PANEL DESCRIPTION

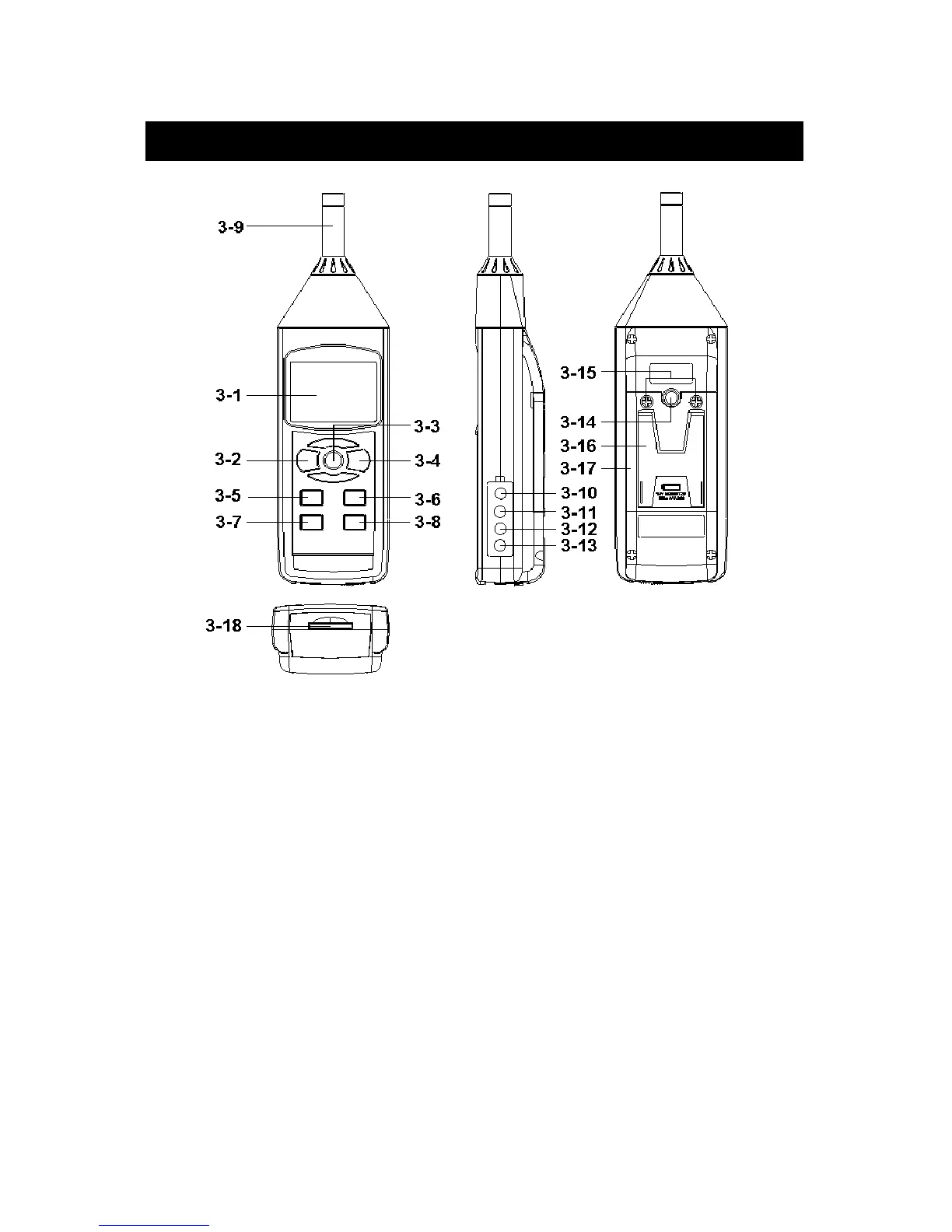

Fig. 1

3-1 Display.

3-2 Power Button ( ESC, Backlight Button )

3-3 Hold Button ( Next Button )

3-4 REC Button ( Enter Button )

3-5 Range Button ( Button, Time Check Button )▲

3-6 A/C Button ( Button, Sampling check Button )▼

3-7 Fast/Slow Button ( SET Button )

3-8 Peak Hold Button ( Logger Button )

3-9 Microphone

3-10 AC output terminal

3-11 Calibration VR

3-12 RS-232 output terminal

3-13 DC 9V adapter socket.

3-14 Tripod Fix Nut

3-15 Battery Cover Screws

3-16 Stand

3-17 Battery compartment/Cover

3-18 SD card socket
