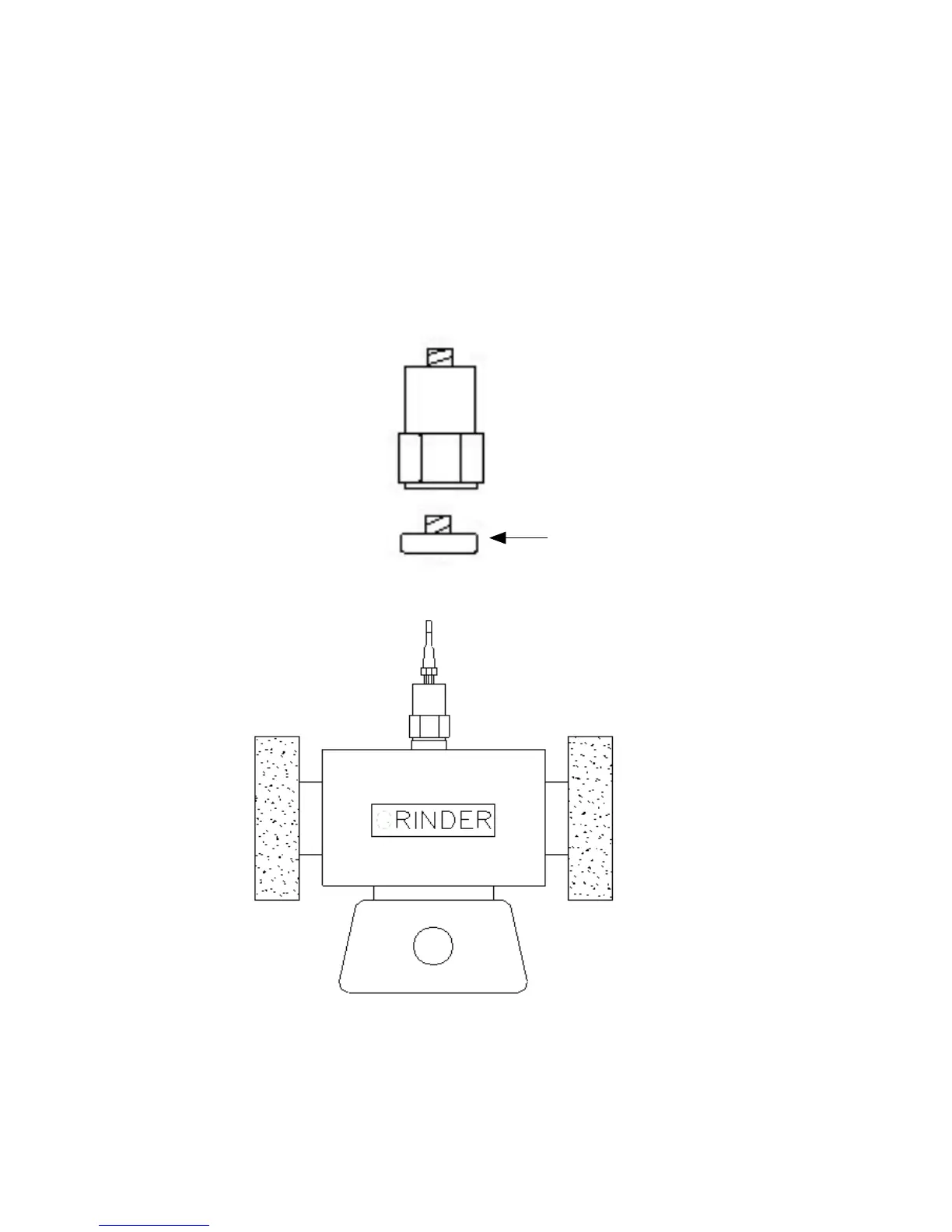

5)If the surface material of measuring article is the ferrous
material, connect " Vibration sensor " ( 3-13, Fig. 1 )
with the " Magnetic base " ( 3-14 ), refer Fig. 3.
Put the whole unit ( Vibration sensor & Magnetic
base ) to the surface of measuring article, refer Fig. 4.
Fig. 3
Magnetic base
Fig. 4
