4. VIBRATION MEASURING PROCEDURE
4-1 Basic operation procedures
1)Plug in the " BNC plug " ( 3-12, Fig. 1 ) to the
" BNC socket " ( 3-15, Fig. 1 ).
2)Power on the meter by pressing the " Power button "
( 3-2, Fig. 1 ).
3)a.For the Acceleration measurement, press the
" Unit button " ( 3-6, Fig. 1 ) once until the display
show the " ACC ", " m/s^2 ", " RMS " symbol
or the " ACC ", " g ", " RMS " symbol.
b.For the Velocity measurement, press the
" Unit button " ( 3-6, Fig. 1 ) once until the display
show the " VEL ", " mm/s " and " RMS " symbol
or the " VEL ", " cm/s " and " RMS " symbol.
c. For the Displacement measurement, press the
" Unit button " ( 3-6, Fig. 1 ) once until the display
show the " DISP(P-P) ", " mm " symbol.
4)If the surface material of measuring article is not the
ferrous material, hold the vibration sensor by hand &
touch the sensor to the surface of the measuring
article, refer the Fig. 2.

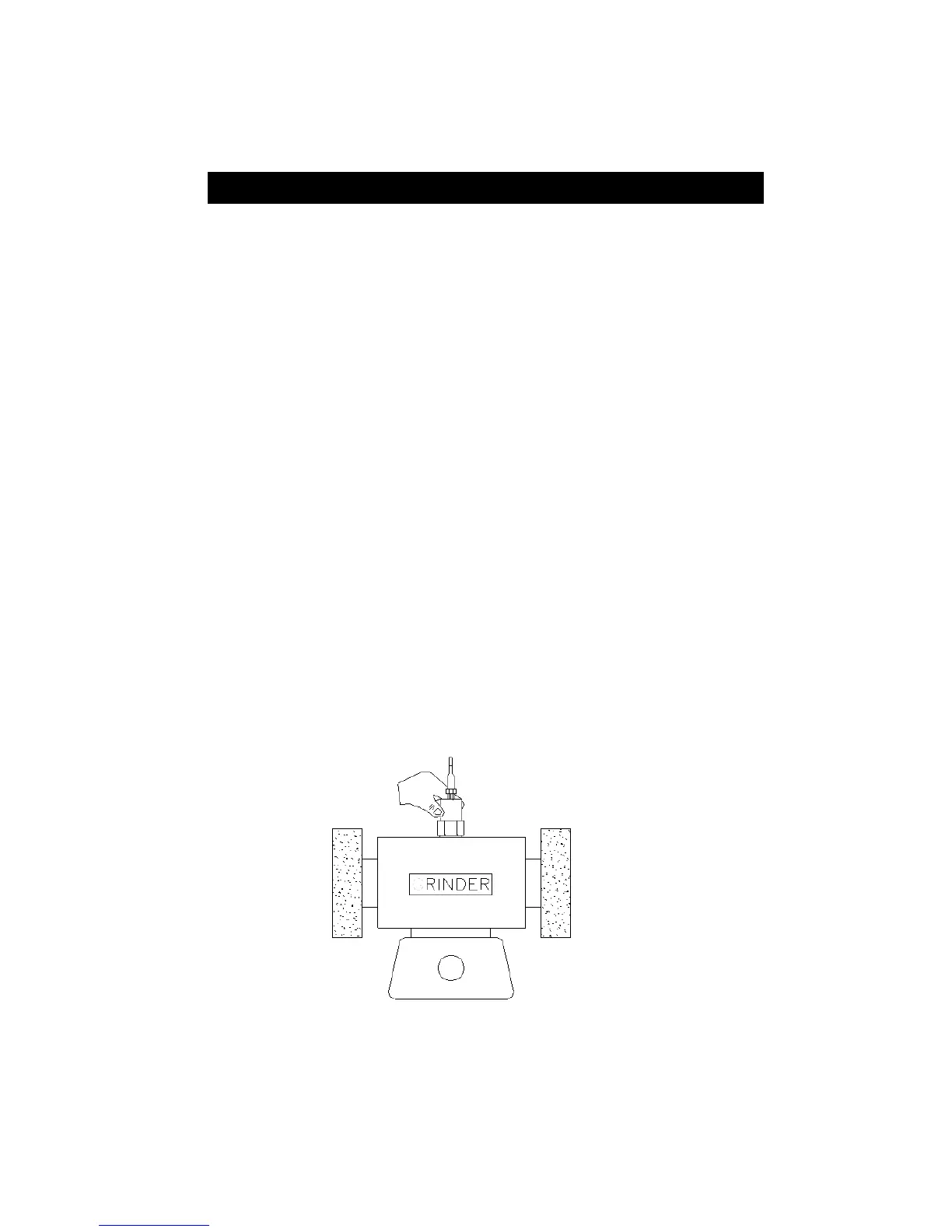

Fig. 2
