Lutz B70V - Operating Limits of the Torsion Shaft for Series 12.1 - 50.1

18
0698-050 B70V/B70V-SR - 04/19
en

The torque of the drive motors must not exceed 8 Nm when using the torsion shaft.

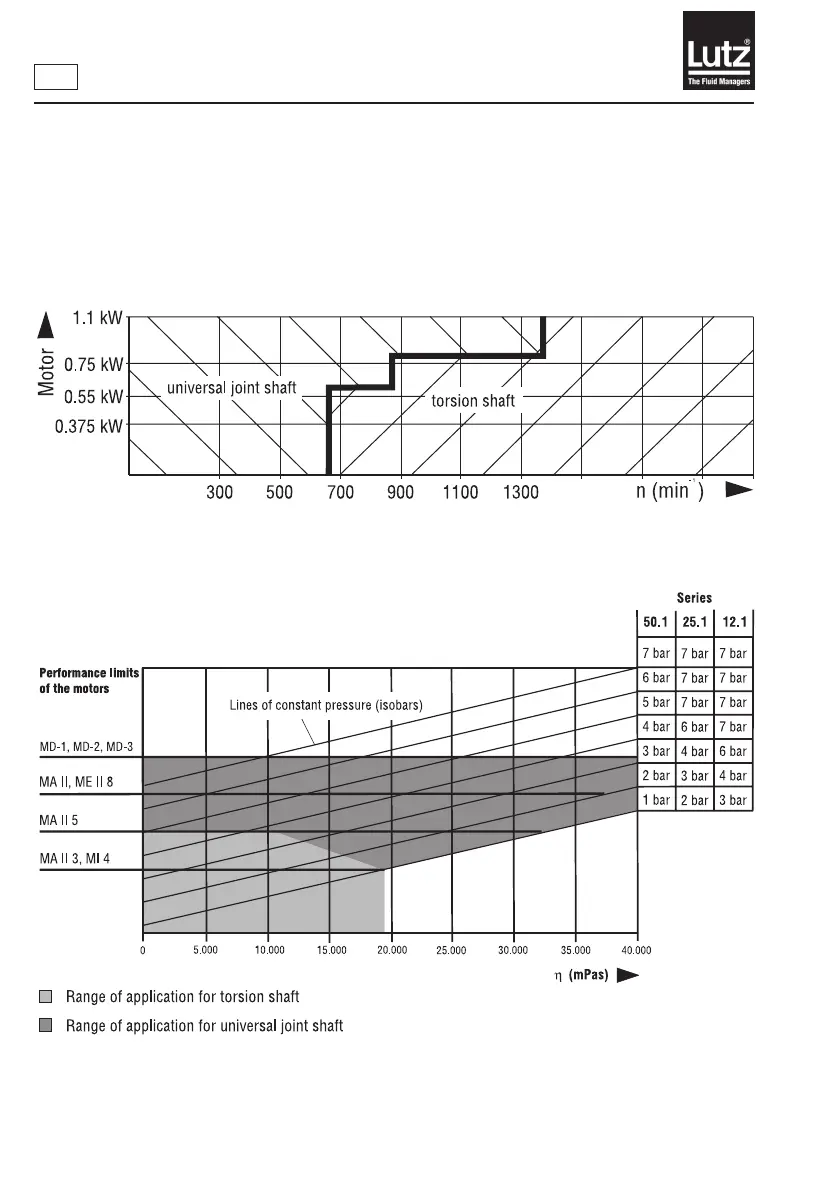

The limits for three-phase drive motors are shown in Diagram 1.
Diagram 2 presents the limits for type B70V-SR when driven by a universal motor.


