- 36 -
LUVOX devices with IP65 front are designed to be even more
tough and rugged, the IP65-rated fronts are ideal for use in
harsh, wet and dusty environments or high hygienic , such as:
Food and beverage
Pharmaceutical / Cosmetics
Chemical / Petrochemical
Biotechnical
Pulp and paper plants
Non-vandal outdoor
NOTE: M5 nuts are included. We advice using the provided self-
locking hexagon nuts with toothed flange (DIN 6923)
- 37 -

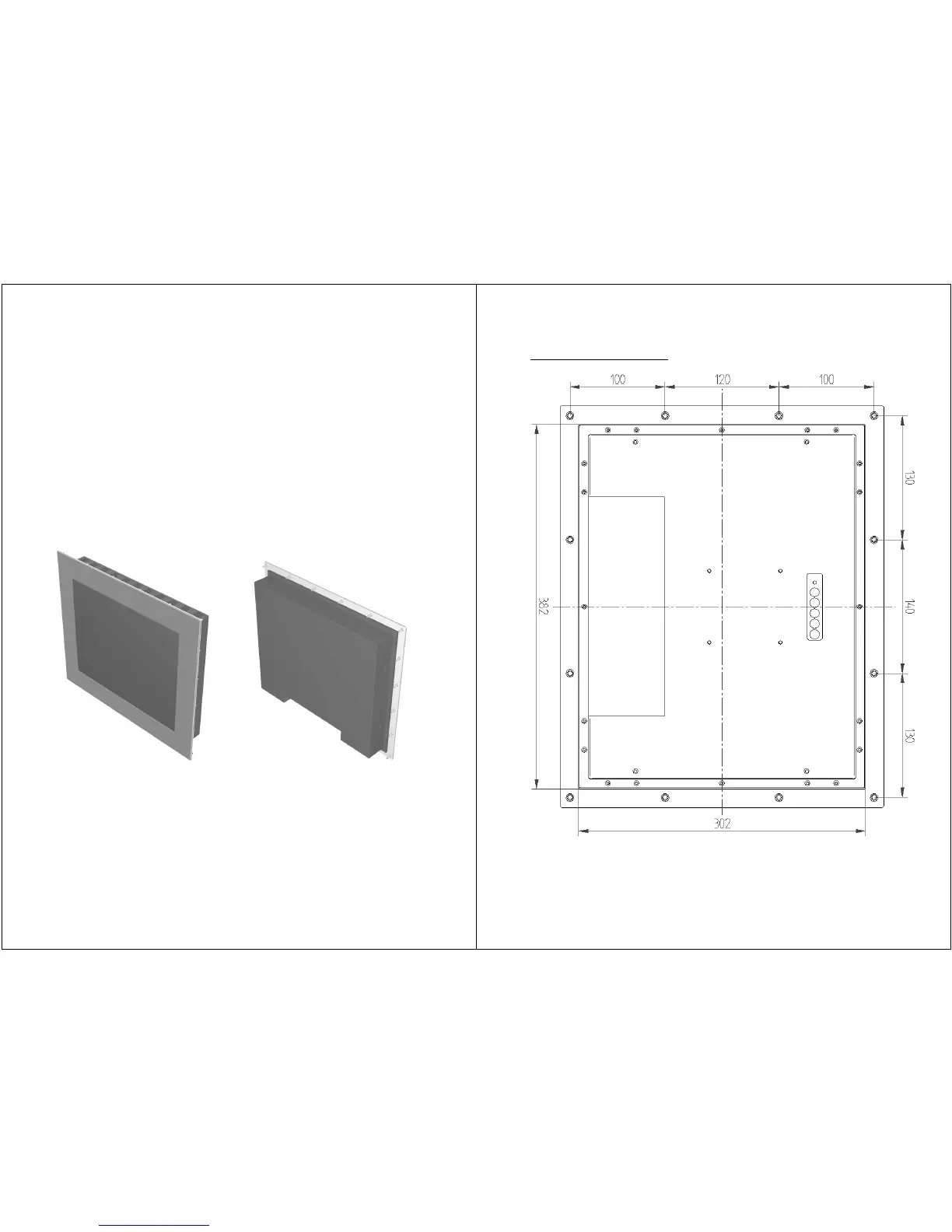

LUVOX F150 IP65 Layout
NOTE: Use cutout of 384 x 304mm and 12 x ø 7mm holes
(3D) CAD drawings available on request.
