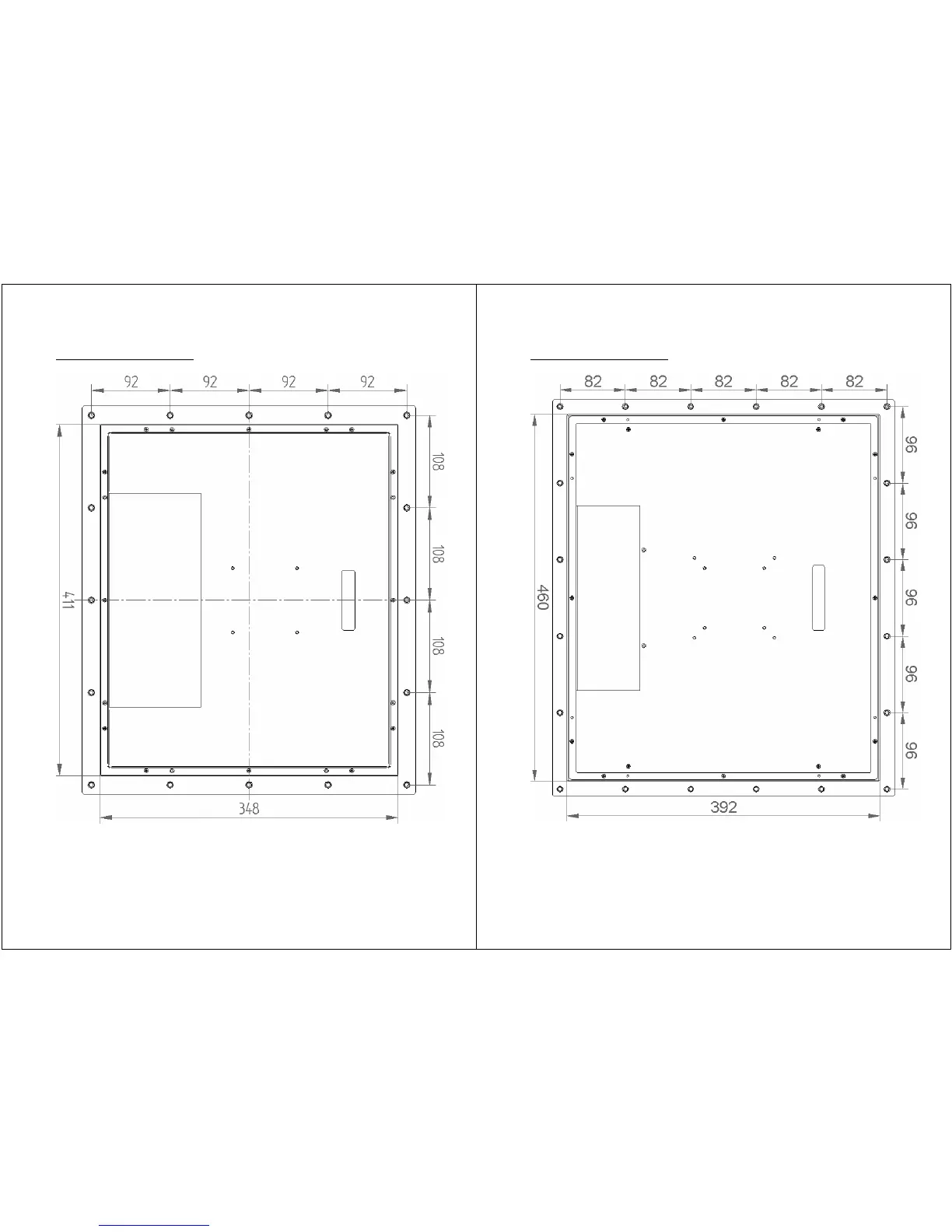

LUVOX F170 IP65 Layout

NOTE: Use cutout of 413 x 350mm and 16 x ø 7mm holes

(3D) CAD drawings available on request .

- 39 -

LUVOX F190 IP65 Layout

NOTE: Use cutout of 462 x 394mm and 20 x ø 7mm holes

(3D) CAD drawings available on request .
