- 40 -

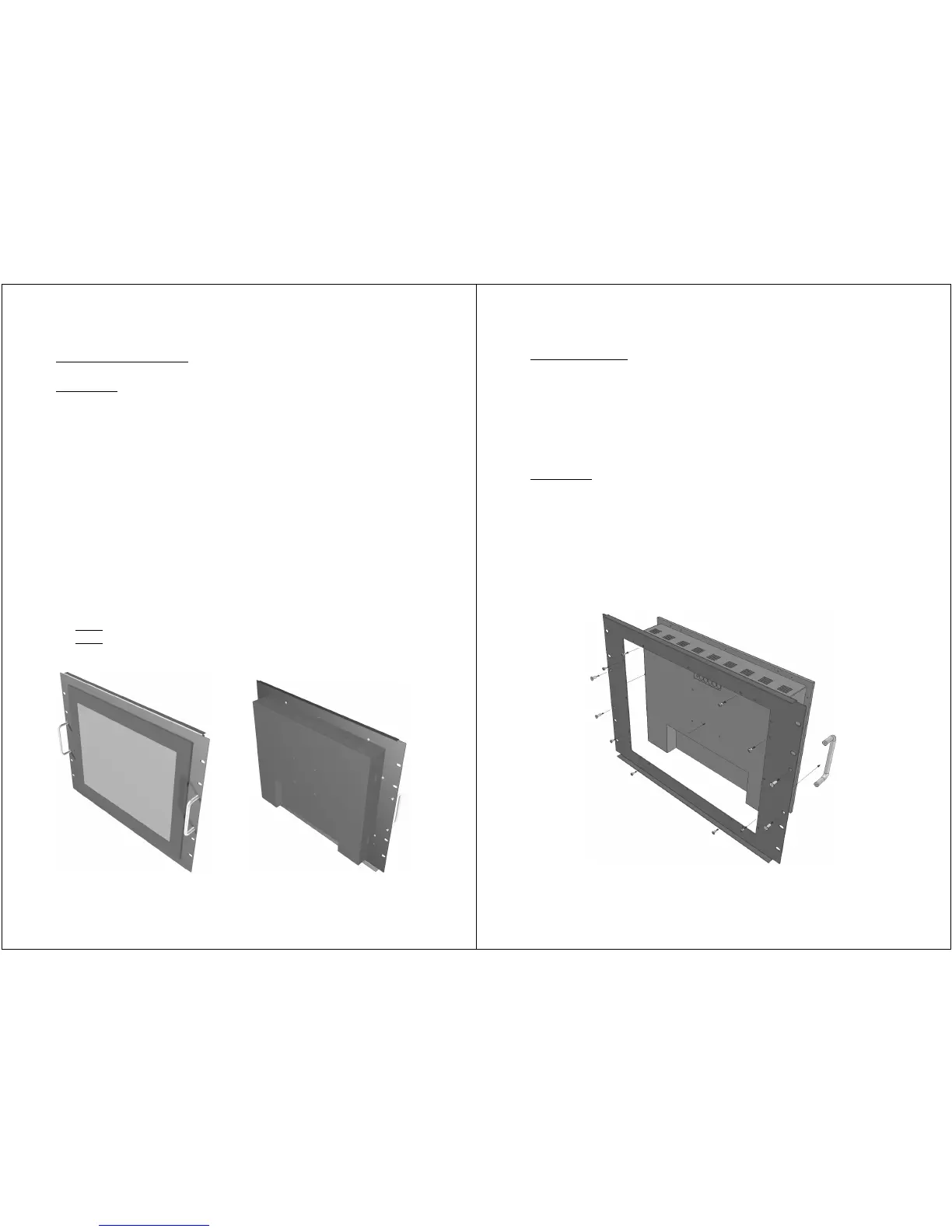

Rack-Mount Bezel
Description
19-inch racks are a standardized (EIA 310-D, IEC 60297 and DIN
41494 SC48D) systems for mounting various electronic modules
in a 19 inches (482.6 mm) wide stack or rack. Equipment
designed to be placed in such racks are typically described as
rack-mountable.
LUVOX F150 and F170 devices (AIO and LCD monitors) are
configurable with a retro-fit black powder coat finished rack-
mountable bezel.
Rack-mountable devices are always offered as being [x]U in
height. (generally 1U = 1.75 inch or 44.45 mm)
Within this agreement LUVOX Rack Mount Bezels are
respectively:
• F150
: 8U or 355 mm high
• F170
: 9U or 399 mm high
- 41 -
Package Contents
• F150/F170 Rack-mount bezel (black powder coat finish)
• Chrome rack handles and fixing (2x)
• M5 cage nuts (4x)
• M5x12MM bolts (4x)
• Plastic cup washers (4x)
• Side Skirts Bolts (8x)
Installation
Rack-mount bezels for LUVOX devices are retrofit options and are
user-assembled. Use the 8 (M3) bolts to secure your bezel to the
side skirts of the device. Each side has two free M3 holes. Use the
4 (M4) screws to secure the handles to the bezel (If not yet
assembled).
