- 44 -

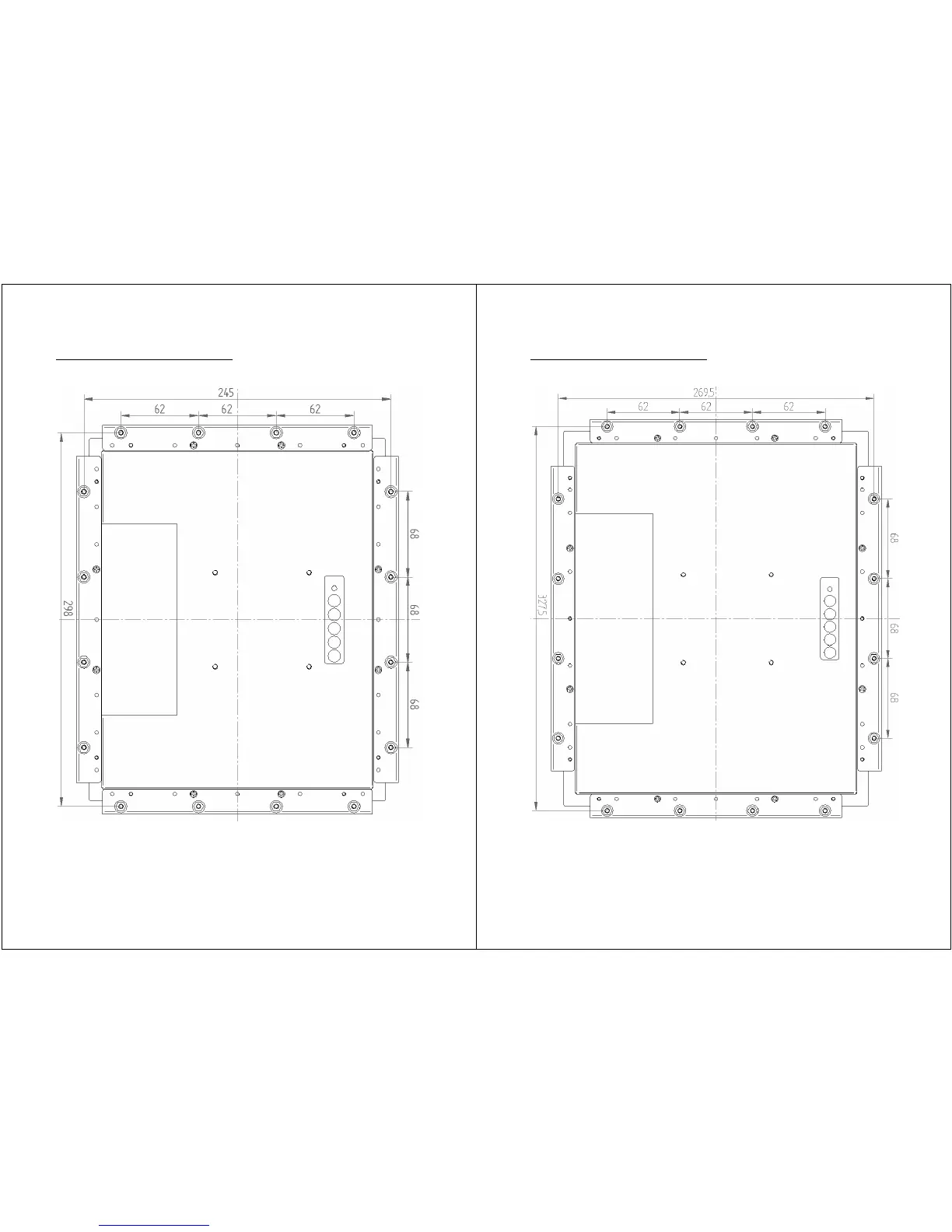

LUVOX F100 Rear-Mount Layout

NOTE: Advised aperture size in front panel: 160 x 212.5mm

- 45 -

LUVOX F120 Rear-Mount Layout

NOTE: Advised aperture size in front panel: 186 x 247.5mm
