INSTALLATION
Testing the Louvre Section
Testing the louvre section with the programming button will allow you to ensure that the motor and power
source are working correctly.
■ Tilt louvres open by hand.
■ Press the programming button on the back side
of the rail to test operation. If the louvres do not
operate, see “Troubleshooting” on page 7.
Coupled Panels
Coupled panels will have couplers in the stiles where the two
panels meet to transfer the louvre rotation from the panel with
the motor to the adjoining panel. The couplers are spring-
loaded, so they will recess into the stiles when the panels are
closed. Make sure the couplers are aligned when closing the
panels to ensure proper louvre rotation.

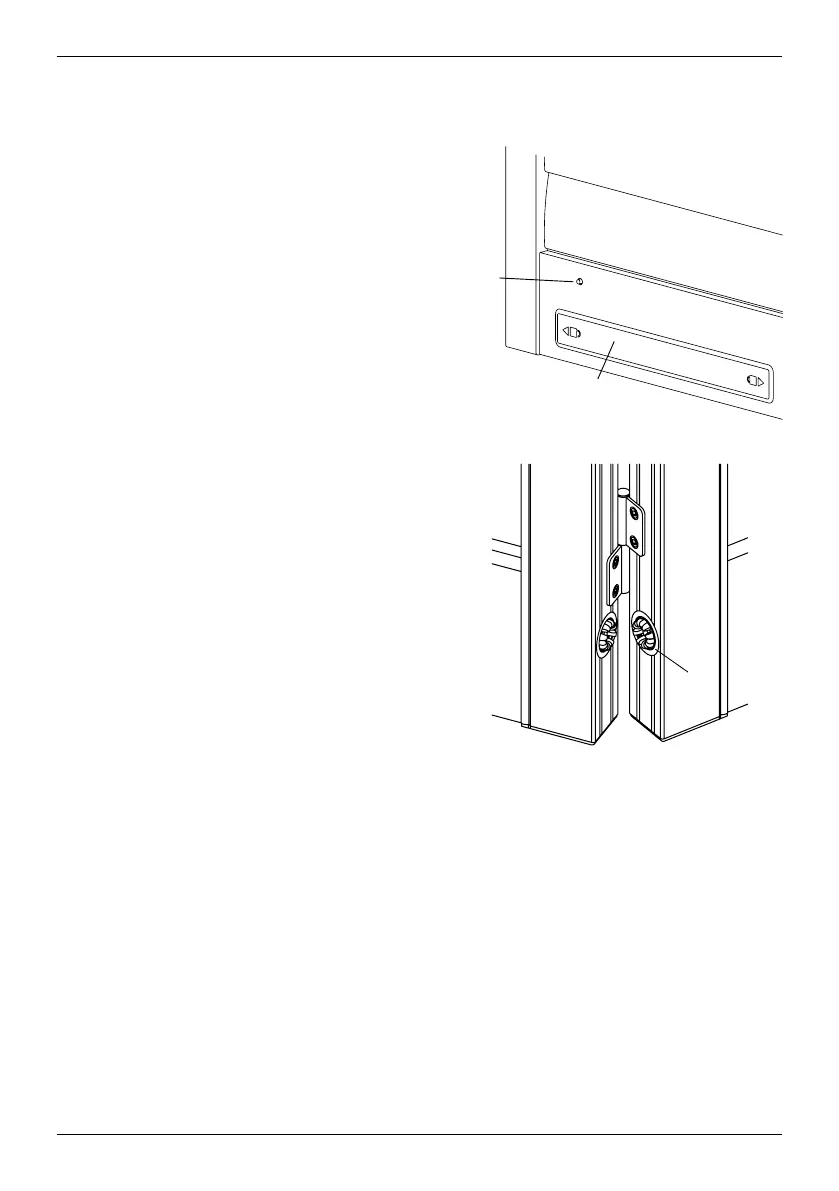

Battery Cover
Programming
Button
Back side of rail
Motor
Coupler
