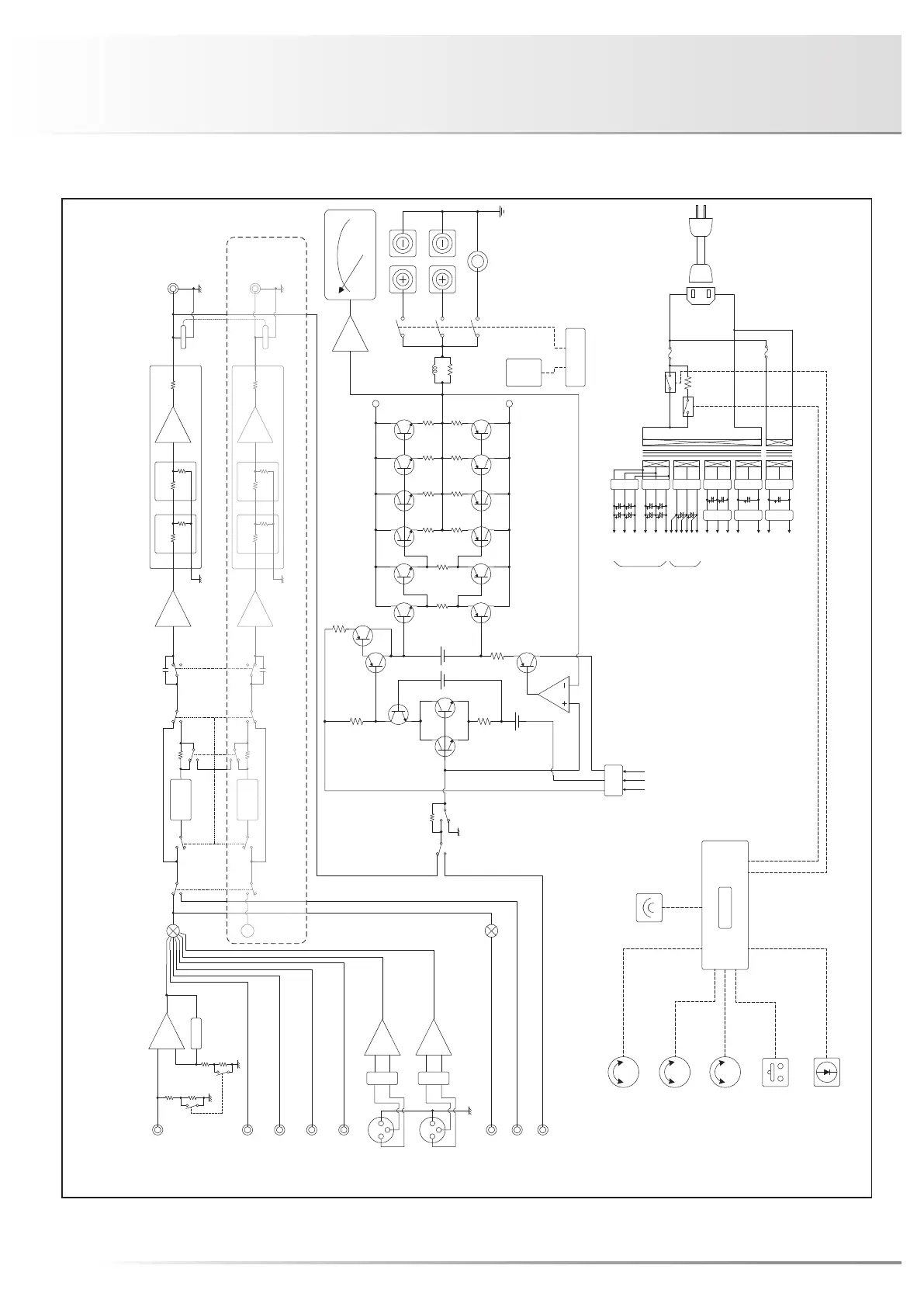

Block Diagram
LINE-1 PHONO
LINE-2
LINE-3
PRE OUT
LINE-4
LECUA-1
LECUA-2
MONITOR
REC OUT
STRAIGHT
Tone
Control
straight straight
Tone
Control
BAL. LINE-1 BAL. LINE-2
12
3
MONO
EQ
RIAA
PHASE INVERT
INV.
12
3
INV.
→
BAL
UNBAL
PHASE INVERT
→
BAL
UNBAL
MONITOR
Buffer
PRE OUT
Buffer
SEPARATE
MAIN IN
+B1
-B1
+B2
-B2
-B2’
REG. B2
A - Speakers B - Speakers
Phones
DC.
OC.
TEMP.
Speaker selector /
Protector
MUTE
SUBSONIC
MUTE
Pre amp
RECTIFIER RECTIFIER RECTIFIER RECTIFIER
B1-L
B1-R
B2-L
REG. REG.
For EQ. , TC. Pre amp For Protector
For Main Amp For Driver
B2-R
REG.
RECTIFIER
FUSE
For μ-computer
AC RELAY 1
AC RELAY 2
Backup
Transformer
Main
Transformer
Volume/Treble/Bass/Balance
Remote
Cartridge/Rec Out/Speakers
Input Selector
Monitor/Line Straight/ Separate
LED
μ-com
STRAIGHT
REC OUT
SELECTOR
FUSE
INPUT
SELECTOR
11dB
×8step
1dB
×11step
LECUA-1
LECUA-2
MUTE
Pre amp
11dB
×8step
1dB
×11step
Meter
amp
MM/MC
RECTIFIER

Luxman L-509X Specifications

General

Type	Integrated Amplifier
Output Power	120W + 120W (8Ω), 220W + 220W (4Ω)
Total Harmonic Distortion	0.007% (1kHz/8Ω)
Frequency Response	20Hz - 100kHz (+0, -3.0dB)
Weight	29.3 kg
Input Sensitivity / Impedance	Line: 180mV / 47kΩ
Output Voltage	1V
Dimensions	440 x 193 x 463 mm
