Luxman M-03 - Heatsink and Main-Amp Board Removal

M-03
a

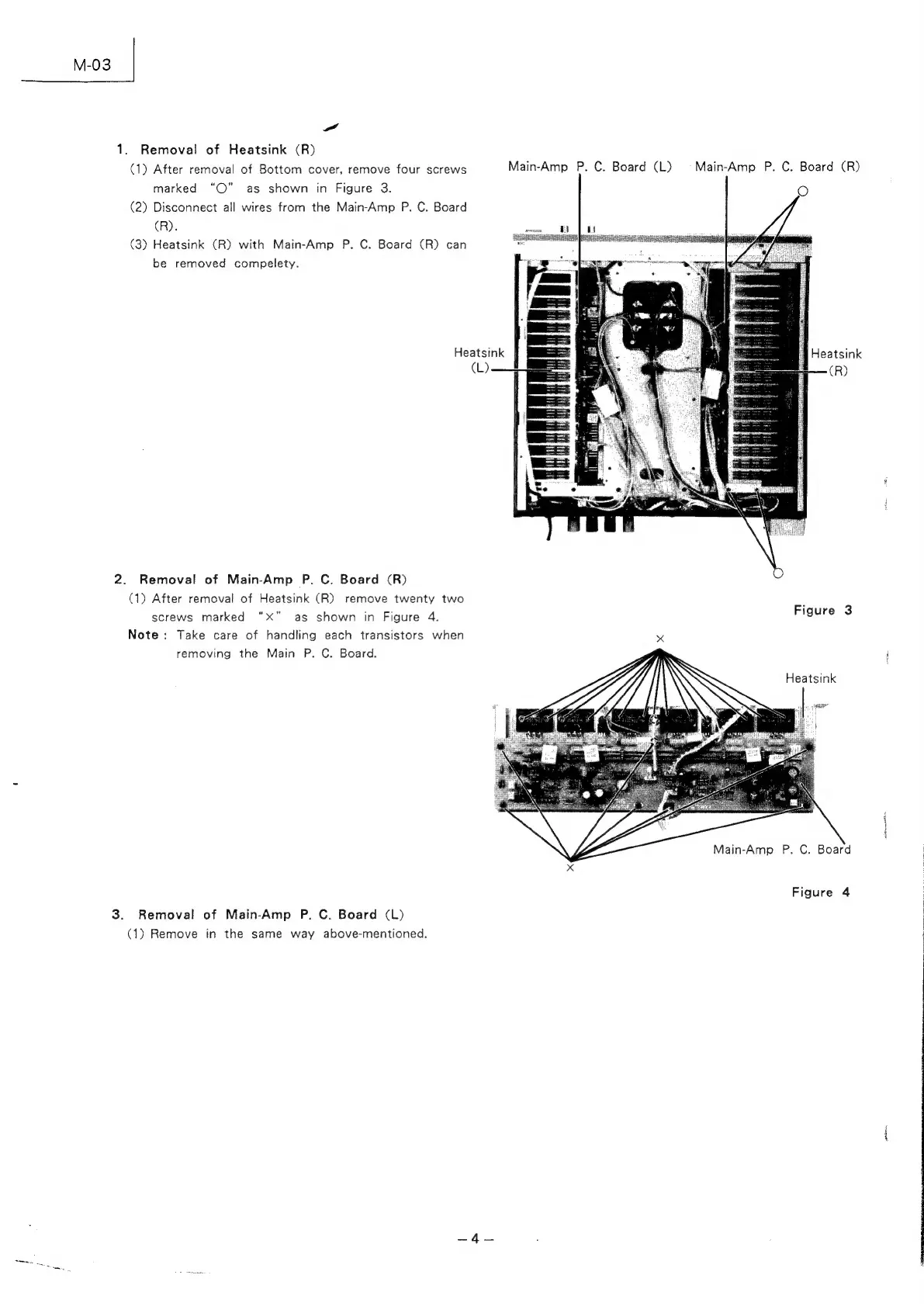

1. Removal of Heatsink (R)
(1) After removal of Bottom cover, remove four screws Main-Amp P. C. Board (L) = Main-Amp P. C. Board (R)
marked “O” as shown in Figure 3. O
(2) Disconnect all wires from the Main-Amp P. C. Board
(R). i
(3) Heatsink (R) with Main-Amp P. C. Board (R) can
be removed compelety.
Heatsink
(L)
Heatsink
(R)
2. Removal of Main-Amp P. C. Board (R)
(1) After removal of Heatsink (R) remove twenty two
screws marked “xX” as shown in Figure 4.
Note: Take care of handling each transistors when x
removing the Main P. C. Board.
Figure 3
Main-Amp P. C. Board
Figure 4
3. Removal of Main-Amp P. C. Board (L)
(1) Remove in the same way above-mentioned.
penn,
