Luxman M-05 Service Manual

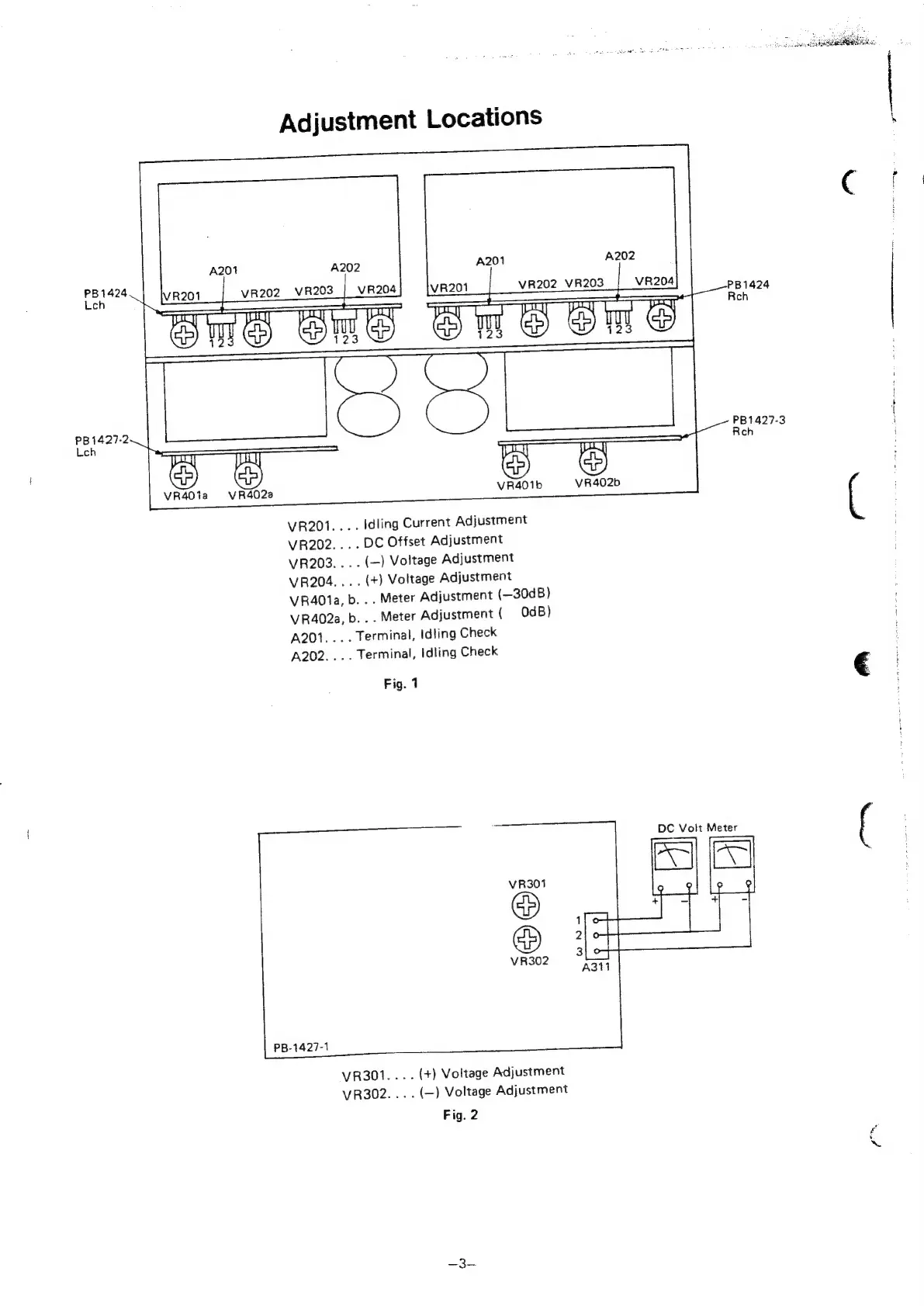

Adjustment
Locations
PB1424
Leh
PB1424
Rch
PB1427-2
PB1427-3
Lch
Rech
VR401a
VR402a
VR401b
VR402b
VR201....
Idling
Current
Adjustment
VR202....
DC
Offset
Adjustment
VR203.
...
(—)
Voltage
Adjustment
VR204....
(+)
Voltage
Adjustment
VR401a,
b.
..
Meter
Adjustment
(—30dB)
VR402a,
b.
.
.
Meter
Adjustment
(
OdB)
A201....
Terminal,
Idling
Check
A202....
Terminal,
Idling
Check
Fig. 1
DC Volt Meter
PB-1427-1
VR301....
(+)
Voltage
Adjustment
VR302.
...
(—)
Voltage
Adjustment
Fig. 2
f
‘
~
sensoig
