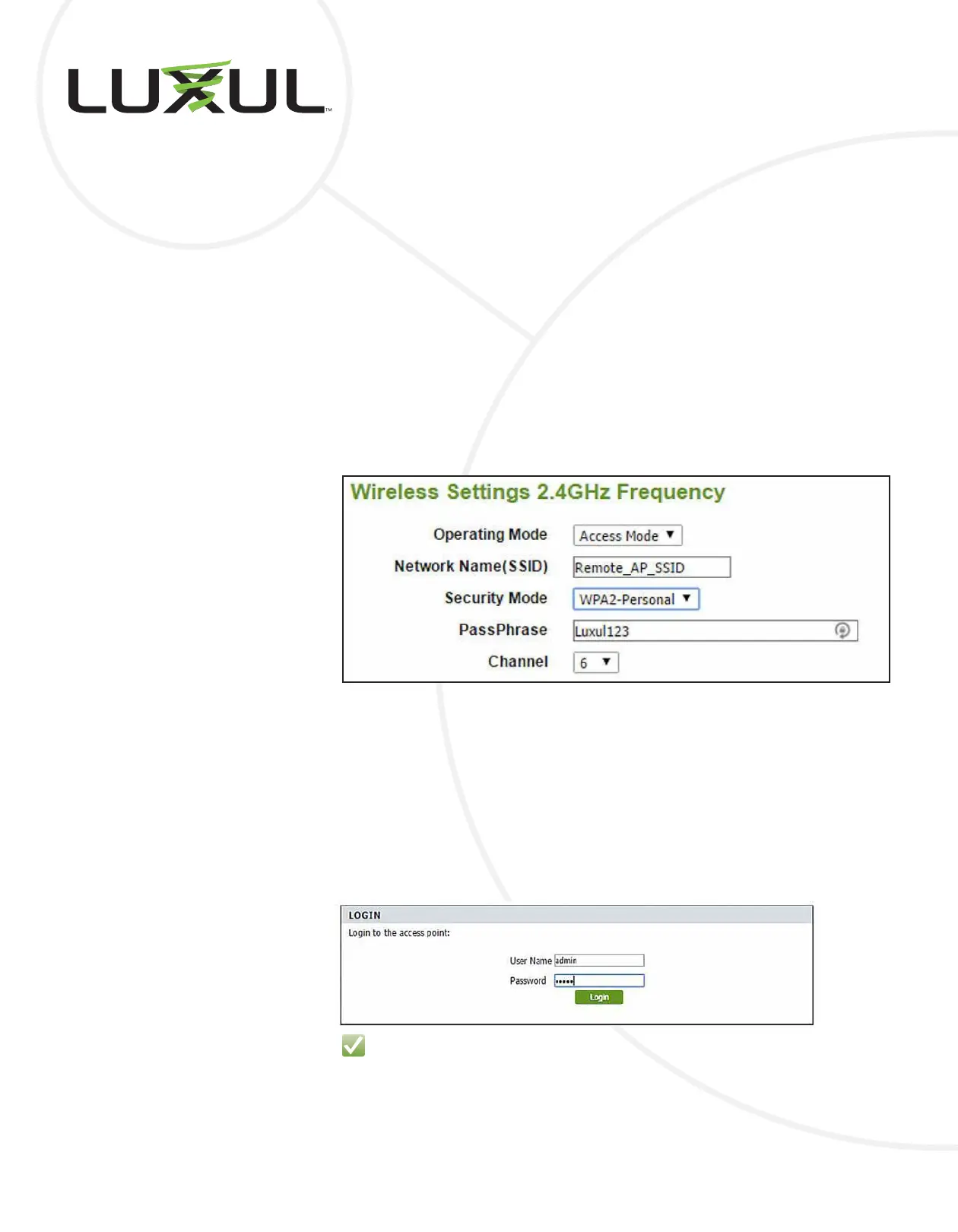

1. Enter your desired Network Name (SSID).
2. Change the Security Mode from Open System to WPA2-Personal.
3. Enter your desired PassPhrase to secure the SSID.
4. Change the channel as needed.
ASSIGN THE IP ADDRESS
The last item to congure on the ROOT access point is the IP address. Even if you
will use the 192.168.0.X network scheme, you still need to change the IP address
because the REMOTE AP will have the same IP address once it’s powered on.
Choose an IP address unoccupied on the network so you can manage it later.
Select the Quick Setup page and make the following changes:
1. Enter an unused IP Address on your network/management VLAN.
2. Conrm that the Subnet Mask is correct.
3. Enter the Default Gateway for the subnet the access point will occupy.
4. Enter the DNS Server the access point should use.
Alternately, you can change the DHCP Client from Disabled to Enabled to allow
the access point to use your DHCP server to acquire an IP address.
STEP 2: CONFIGURE THE REMOTE ACCESS POINT
Supply power to the REMOTE AP. The XWO-BAP1 default IP address will be
192.168.0.10. Your computer will need to be on the same 192.168.0.X subnet to
access the AP.
Enter 192.168.0.10 in your browser and log in to the AP using “admin” for both
User Name and Password. This will open the Quick Setup page.
SECURITY NOTE: You will be required to change the default administrator password.
Select Basic Settings, then select Wireless to access the Wireless Setup page.
Congure the access point as follows:
1. Choose the wireless frequency that matches the frequency that was used on the
ROOT AP. The two must match for the bridge to function.
