WIRING POSITION
STORED CHARGE
- Wait at least 5 minutes before servicing
1. All electrical breakers and switches MUST be turned off before wiring
the motor.
2. Input power MUST match the requirements on the data plate.
3. Regarding wiring sizes and general requirements, it is important to
follow the specifications as defined by the current National Electric
Code and any local codes. When unsure of what size wire to use, it is
always best to use a heavier gauge (larger diameter) wire for safety
and reliability.
4. All electrical connections MUST be clean and tight.
5. Trim the wiring to correct size and ensure that the wires do not overlap
or touch when they are connected to the terminals.
6. It is important to reinstall the drive lid after any electrical installation or
whenever leaving the pump unsupervised during servicing. This is to
ensure that rainwater, dust, or other foreign particles are not able to
accumulate in the drive.
Note: Make sure that wires are not pinched between the drive body and lid
when installing the drive.
The power wiring cannot be buried in the ground
7. The power wiring cannot be buried in the ground, and the wires must be
positioned to avoid damage from other machines such as lawn movers.
8. To prevent electric shock, damaged power cords should be replaced
immediately.
9. Beware of accidental leakage, do not place the water pump in the open
environment.
10.To prevent electric shock, do not use extension cords to connect to the
power supply.
WARNING
CAUTION
Wiring Position:
Grounding:
1. It is important to ensure that the motor is properly grounded using the
Grounding Terminal as shown in below Figure inside the drive wiring
compartment. When installing the ground wire, be sure to follow the
requirements of the National Electrical Code and any local codes for
wire size and type. Additionally, ensure the ground wire is connected to
an electrical service ground for the best results.
2. WARNING electric shock hazard.
This pump must be connected to a power supply
with leakage protection (GFCI). GFCI systems should be supplied and
inspected by the installer.
Bonding:
1. Using the Bonding Lug located on the side of the motor (Below Figure ),
bond the motor to all metal parts of the pool structure, electrical
equipment, metal conduit, and metal piping within 5' (1.5 m) of the
inside walls of the swimming pool, spa, or hot tub. This bonding should
be done in accordance with the current National Electrical Code and
any local codes.
2. For American installations, an 8 AWG or larger solid copper bonding
conductor is required. For Canada installation, 6 AWG or larger solid
copper bonding conductor is required.
WARNING

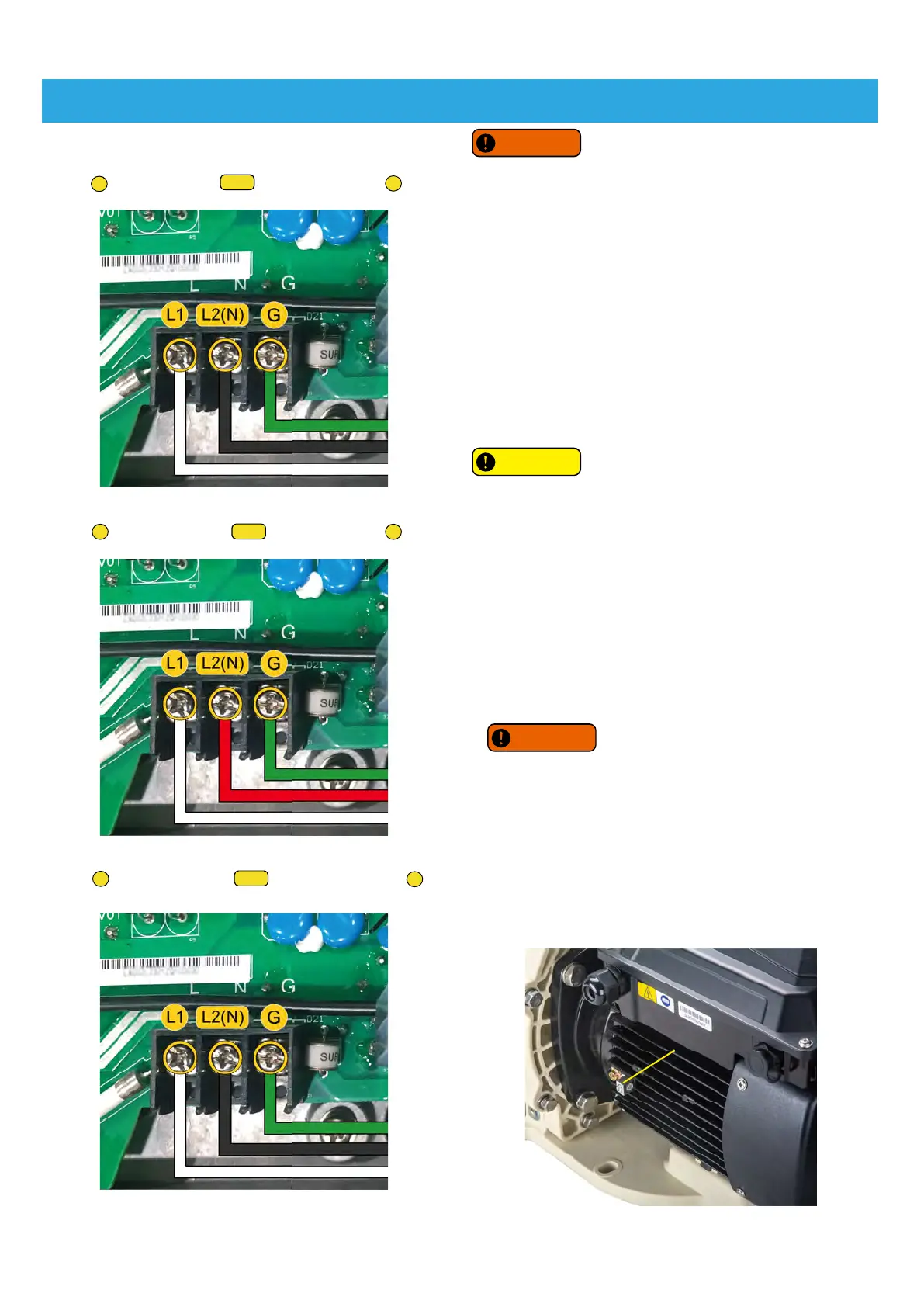

For 208-230V/50HZ input
Terminal (Hot Wire 1),Terminal (Neutral Wire),Terminal
(Ground wire). This applies to SFP220-VS & SWP390-VS.
For 115V/60HZ input:
Terminal (Hot Wire), Terminal (Neutral Wire), Terminal (Ground
wire). This applies to SHP130-VS & SFP220-VS.
L1
G
L2(N)
For 208-230V/60HZ input:
Terminal (Hot Wire 1), Terminal (Hot Wire 2), Terminal (Ground
wire). This applies to SFP220-VS & SWP390-VS.
L1 G
L2(N)
L1
G
L2(N)
Bonding
Terminal
