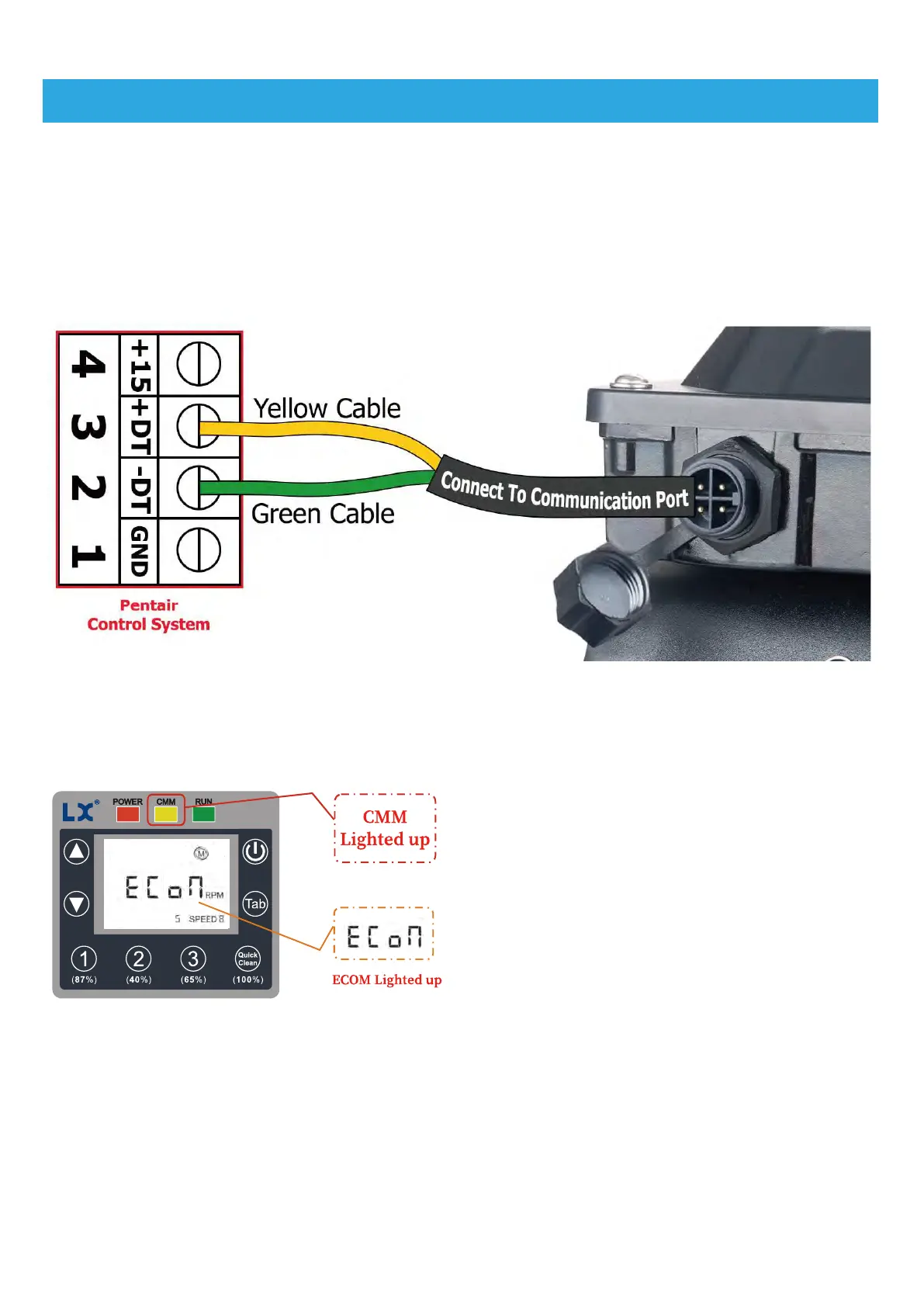

RS485 signal cable connection:
The pump can be controlled by Pentair control system
via RS485 signal cable (Sold separately).
1. Please strip the cables around 3/4" (19 mm) and connect green cable to
Terminal 2 and yellow cable to terminal 3 at Pentair Control system.
2. At another end of the signal cable, please connect it to the communica
tion port of the pump and lock up the watertight nut to avoid humidity,
Please look at the below diagram.
3. After successfully connected, the monitor of pump will show ECOM and
the Communication indicator will be lighted up. Then, the pump gives the
control right to Pentair Control System.
External Control Via RS485 Signal Cable
SHP130-VS, SFP220-VS, SWP390-VS Variable Speed Pumps Instruction
For more details and video, please visit www.lingxiao.com.cn
-7-
