8.4.2 Installation
For more detailed instructions on installation, please refer to installation manual.

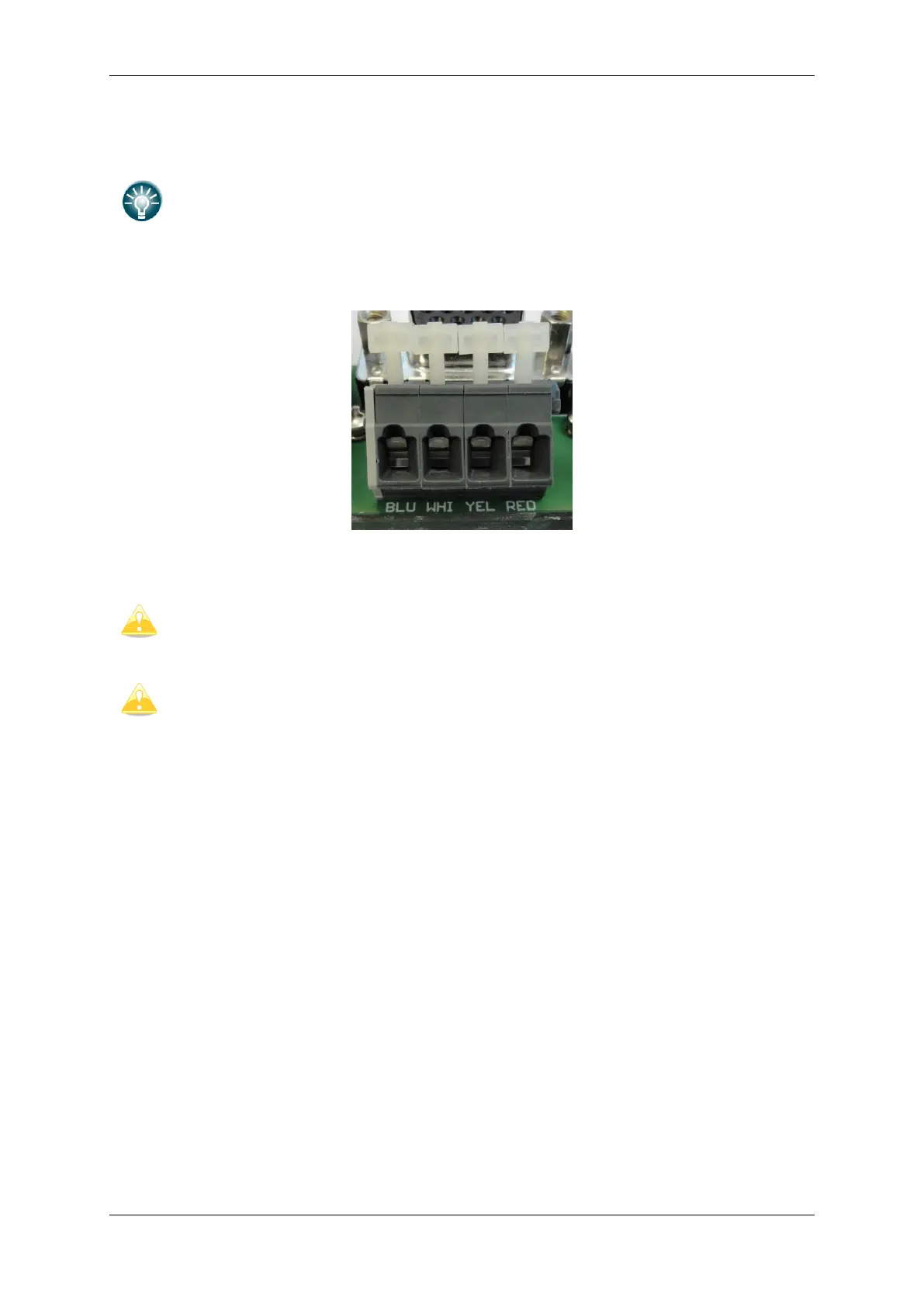

The remote stick is connected to the RS485 bus through a RS485 splitter. Be careful to
connect the correct coloured wire to the pin which is marked with same colour. The RS485
is then connected with CAN BUS to your LX80x/90x instrument.
The PTT wires are connected to the radio push to talk input and the SC wire is connected to
the Speed to fly input of the vario unit.
Do not forget to set the speed command input setting to TASTER (see
Section Napaka! Vira sklicevanja ni bilo mogoče najti.).
After installation there is no special setting required on the main display unit as
the remote stick will be automatically detected.
