Lycomin 0-360 - Page 81

TEXTRON
LYCOMING OPERATOR'S
MANUAL
SECTION 3 0-360 and ASSOCIATED MODELS
CURVE NO.12944
FUEL FLOW
VS. PERCENT
RATED POWER
TEXTRON
LYCOMING
MODEL
HIO-360-A
SERIES
FUEL INJECTOR
BENDIX
RSA-5AB1
ENGINE SPEED
2900 RPM
MANUAL MIXTURE
CONTROL
TO
FLOW METER
GAGE
110
100
90
/
70
40
50 60 70 80 90 100
PERCENT RATED POWER

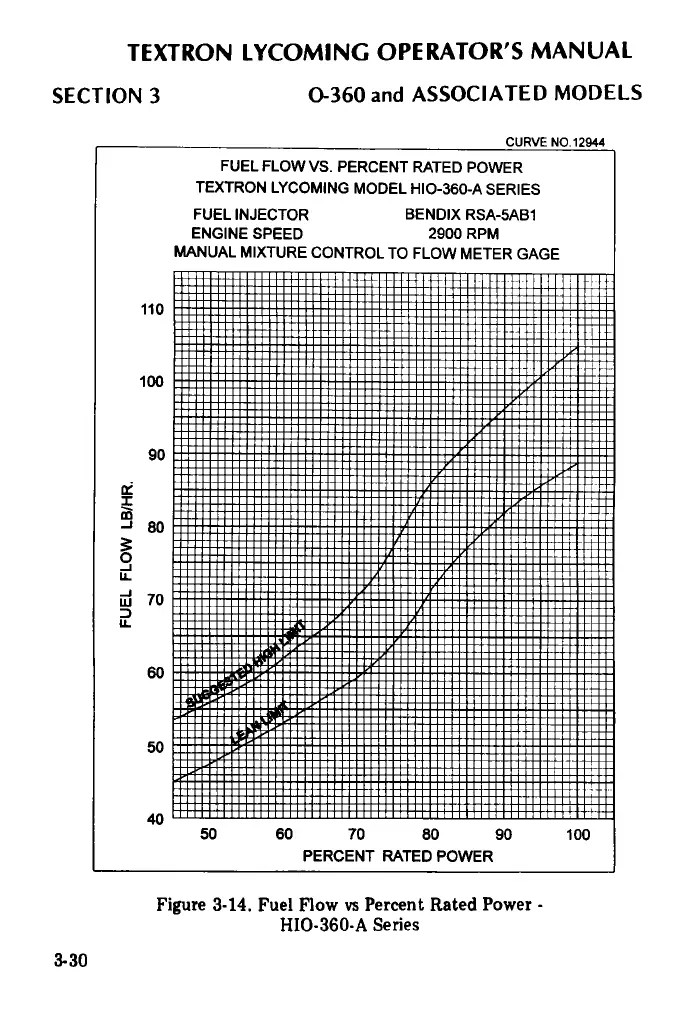

Figure
3-14. Fuel Flow vs Percent
Rated Power
-
HIO-360-A Series
3-30
