TEXTRON LYCOMING OPERATOR'S MANUAL
0-360 and
ASSOCIATED MODELS
SECTION
3
FUEL FLOWVS.
PERCENT RATED
POWER
TEXTRON LYCOMING
MODEL HIO-360-B
SERIES
FUEL
INJECTOR
BENDIX
RSA-5AB1
MANUAL
MIXTURE CONTROL
TO FLOW METER GAGE
ENGINE
SPEED
2500, 2700,
2900
RPM

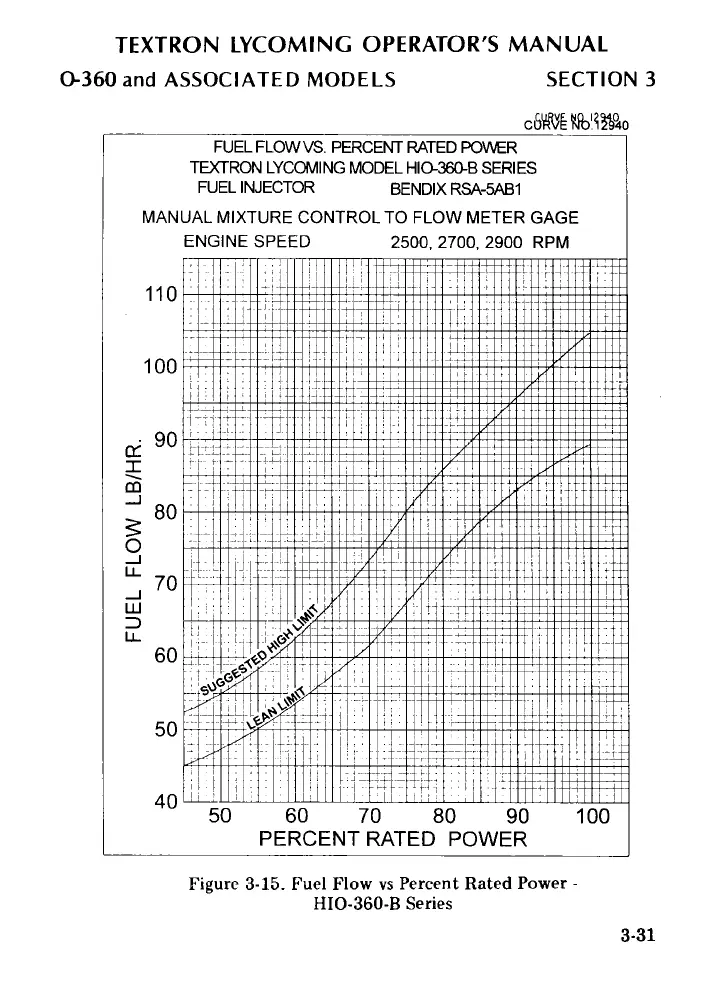

Figure 3-15. Fuel Flow vs Percent Rated Power -
HIO-360-B
Series
3-31
