25

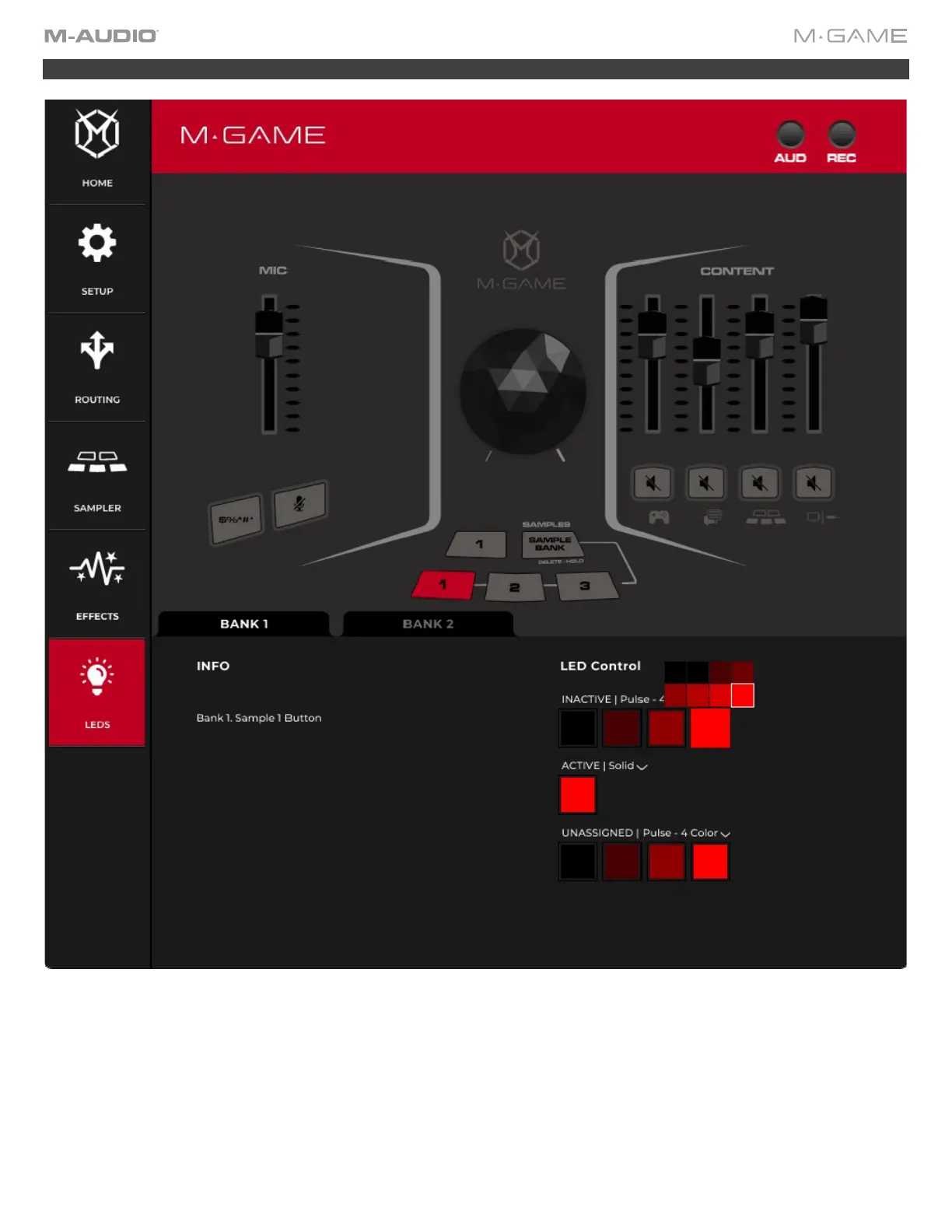

LEDs
This section allows you to adjust LED settings for any LED on the hardware. The selected LED is highlighted, and the info
shows data about that LED (if applicable, for instance with buttons).
Sample button LEDs have an extra control of UNASSIGNED, allowing you to select color and LED type for its unassigned
state. LEDs not connected to buttons can only assign inactive or active.
UNASSIGNED, INACTIVE, and ACTIVE can have two types of buttons – SOLID or PULSE. If a state choice is set to SOLID,
there is one color picker available. When clicked on, a context menu with color swatches appears. If a state choice is set to
PULSE, the LEDs will pulse uniformly. You can select up to a maximum of 4 LED colors to pulse between. These colors will
go in order from 1-4, and then repeat starting at 1.
