M3S Triton - Page 32

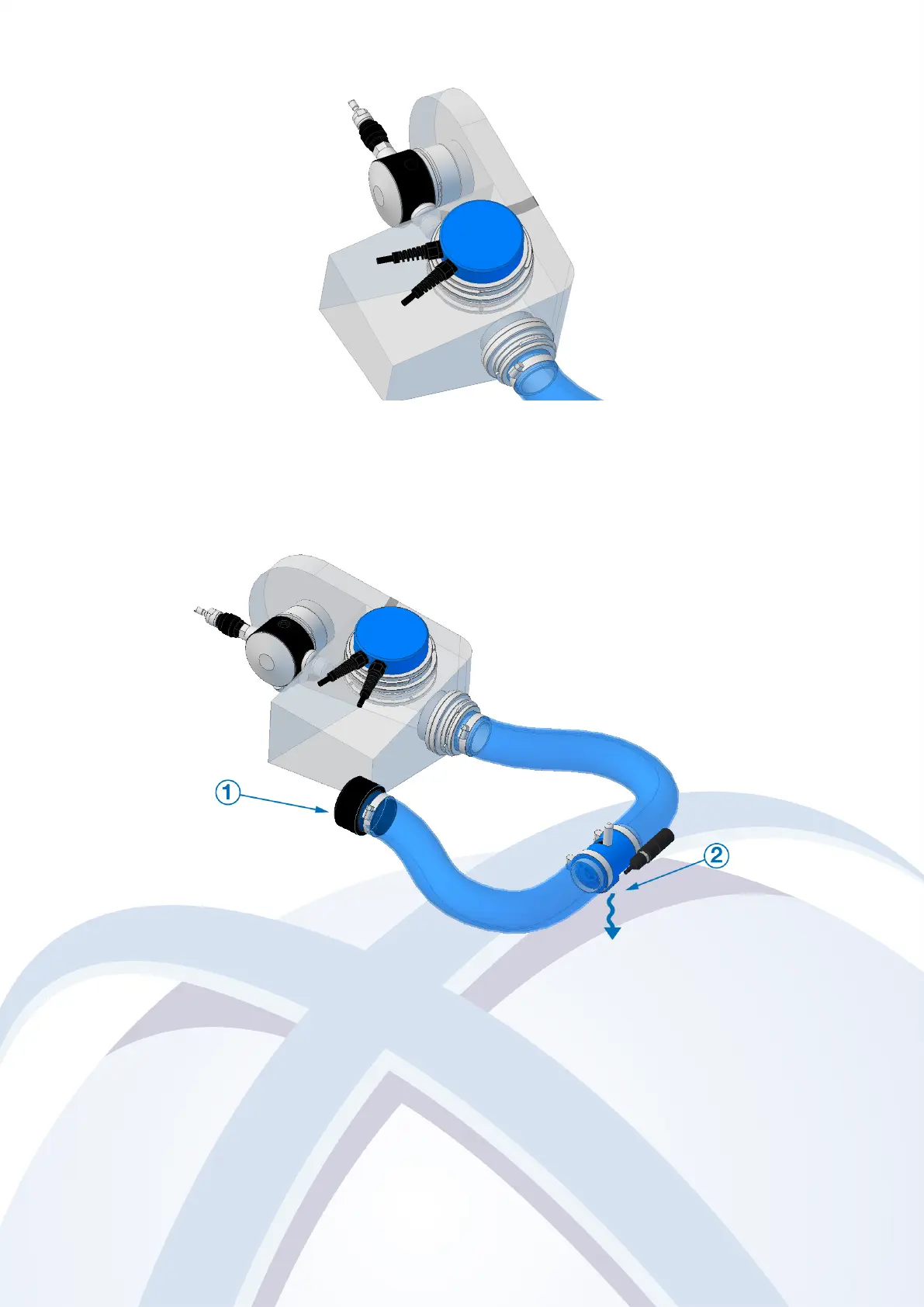

Figure 3.6 – Fine Calibration
You can complete the fine calibration with verifying the outgoing gaz at the mouthpiece. You
need to push a cap (1) on the male connection of the loop. Then you analyse the outgoing
gaz with an analyser (2).
Figure 3.7 – fine Calibration checking
30
