M3S Triton - Use Limits and Performances

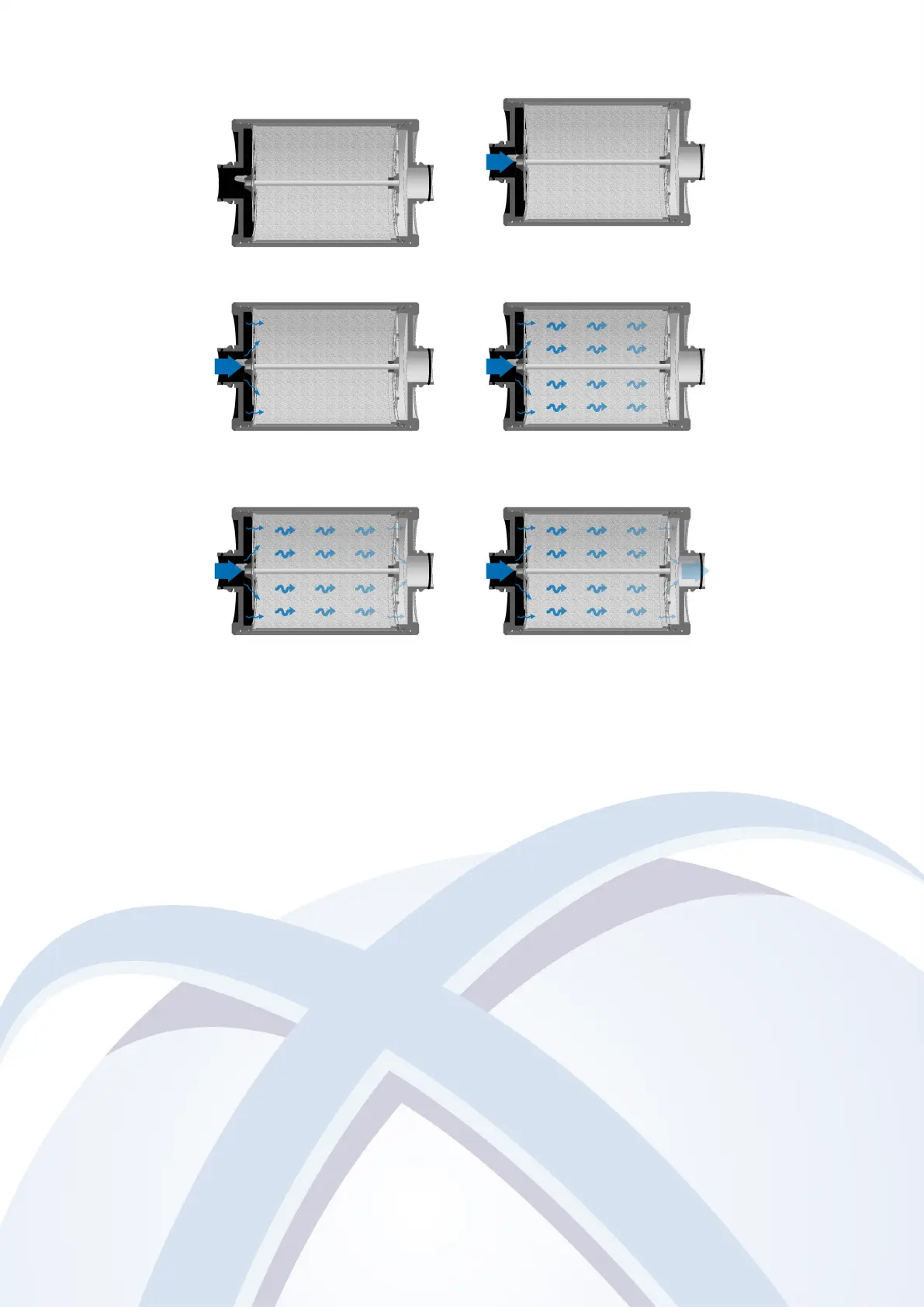

(a) Axial canister - without gas
(b) Axial canister - gas at the
input of the scrubber
(c) Axial canister - gas at the
input of the scrubber
(d) Axial canister - gas going
through the scrubber
(e) Axial canister - gas going
throught the scrubber output
(f) Axial canister - gas at the
scrubber output
Figure 2.4 – Operation of the axial canister
Breathing hose
The breathing hose which is in silicone, contain a DSV. Maintenance of the DSV is specified
at the section 4.3.4.
Display
TRITON is containing a cell housing with 3 M3S cells. The cells T22D have to be replaced
as shown in the section 4.3.1.
The TRITON is delivered with a PpO
2
display, a HUD and an alarm activated when the PpO
2
is out of the defined range. To set the parameters of the display, please see section 3.3.4
2.2 Use Limits and Performances
Performances and use limits of the TRITON depend on the configuration of the rebreather.
the TRITON manufacturer wants to remind that TRITON’s user is not supposed to dive if out
of his prerogatives and if not in good conditions (healthy, good physic condition, etc...)
6
