MAAX Utile User Manual

13
12

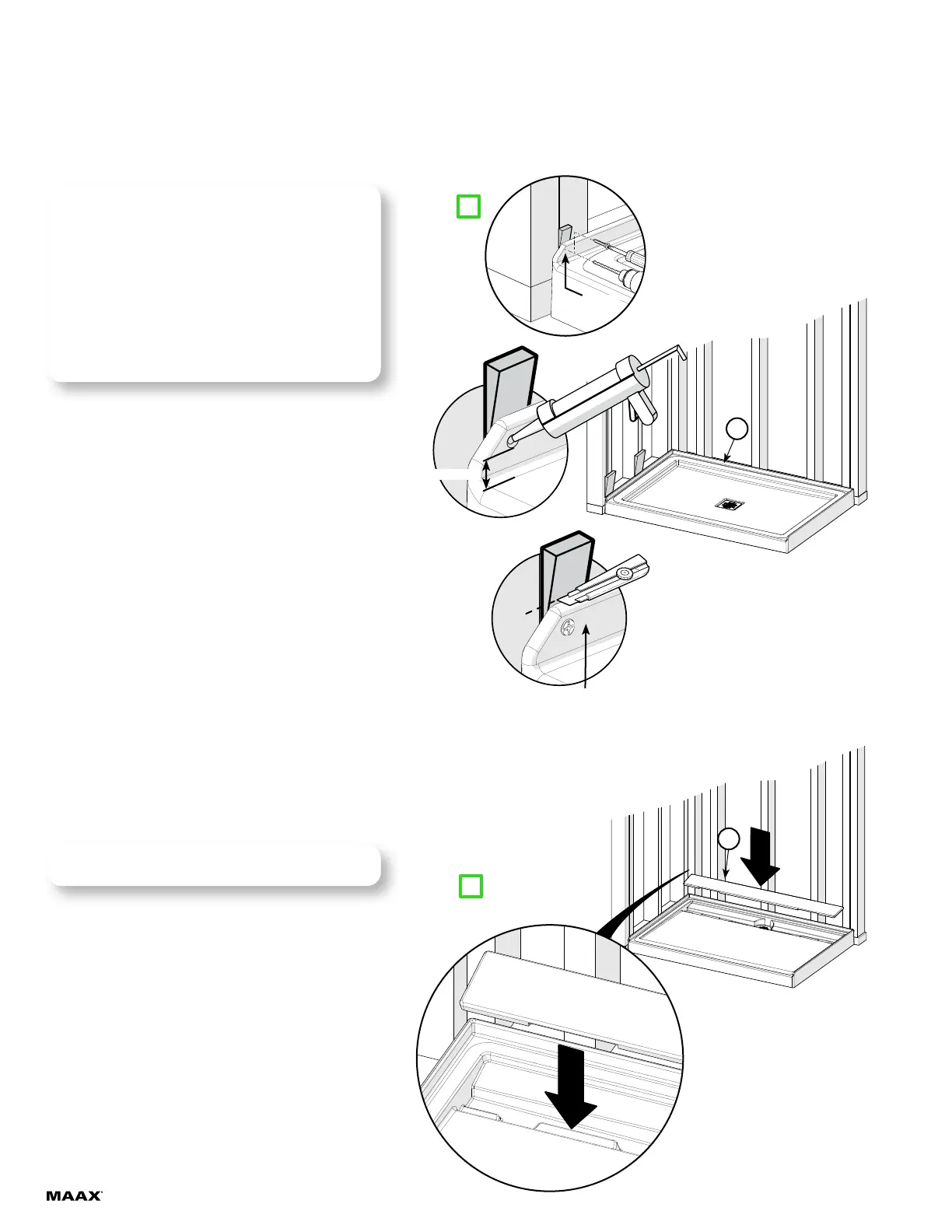

Insert the drain cover (13a) as shown.
2
STEP Installing the base (cont'd)
Distinct / Zone Square
2.8
Check me!
With a 1/8" drill bit, drill holes in the base ange then
secure the base to all the wall studs with #8 x 1¾"
at-head screws (not included). Pre-drill the flange
only and not the studs.
HAND TIGHTEN ONLY!
THE BOTTOM OF ALL HOLES IN THE FLANGE
MUST BE AT LEAST 8MM (3/8") ABOVE THE BASE
THRESHOLD! HOLES MUST BE FILLED WITH
SILICONE BEFORE SCREWING
CUT THE EXCESS PART OF SHIMS
2.7
Check me!
Distinct 48 drain cover installation
13a
Ø 1/8"
3/8" (8 mm)
Tiling ange
