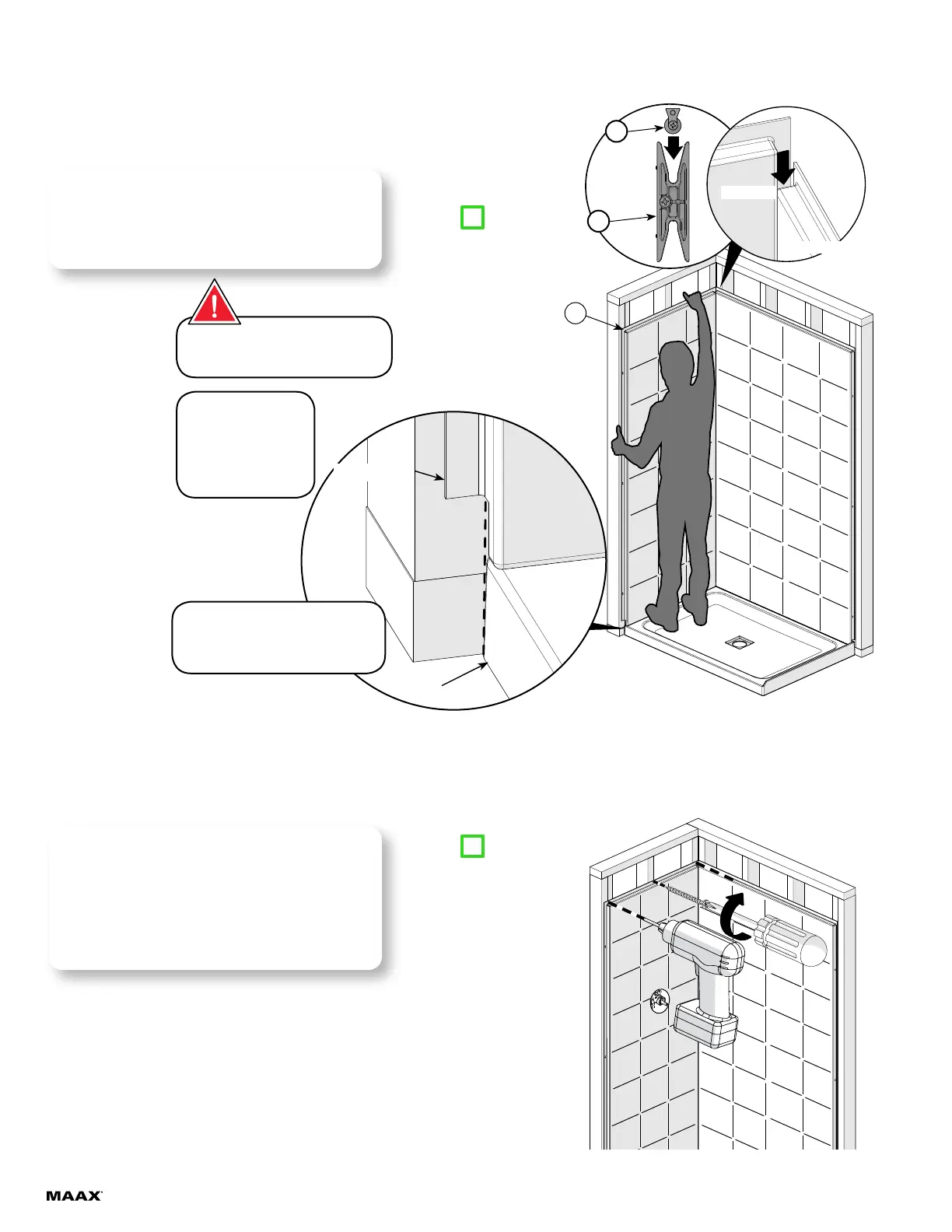

Install the side wall (15). Lift the wall approximately 3"
above the threshold of the base, push it completely
against the back wall then lower the side wall into
position.
Quick tip 
With a 1/8" bit, drill holes in the side wall fastening flange
(15) at the top aligned with each stud. Only pre-drill
the flange not the studs. Then, secure the side wall
(15) with one #8 x 1¾" screw (not included) in one of the
pre-drilled holes.
IMPORTANT: HAND TIGHTEN ONLY. TEMPORARY
INSTALLATION.
3
1
Side wall
Back wall
It is critical that all 3 retraction pins
engage with the X fasteners. There
should be no gap between the walls.
Quick tip 
Place a level vertically
on the side wall. If the
wall is not straight,
make sure that the
retraction pins are
properly inserted in
the X fasteners.
5.4
Check me!
5.5
Check me!
15
5
STEP Temporary installation of the
side walls (Cont'd)
Base
Side wall
The side wall should now line up
with the front of the base. If it does
not, remove the walls and shim
the back ange of base.
